30 The belt gauge should read approximately 120 ± 10 lbs. If the belt tension is significantly high or low the
belt tension may be adjusted by following the steps below. See Drive Belt Gauge Instructions (on
page 265)
31 Loosen or tighten the step up pulley adjustment bolt until the belt gauge reads approximately 160 lbs.
See Drive Belt Gauge Instructions (on page 265)

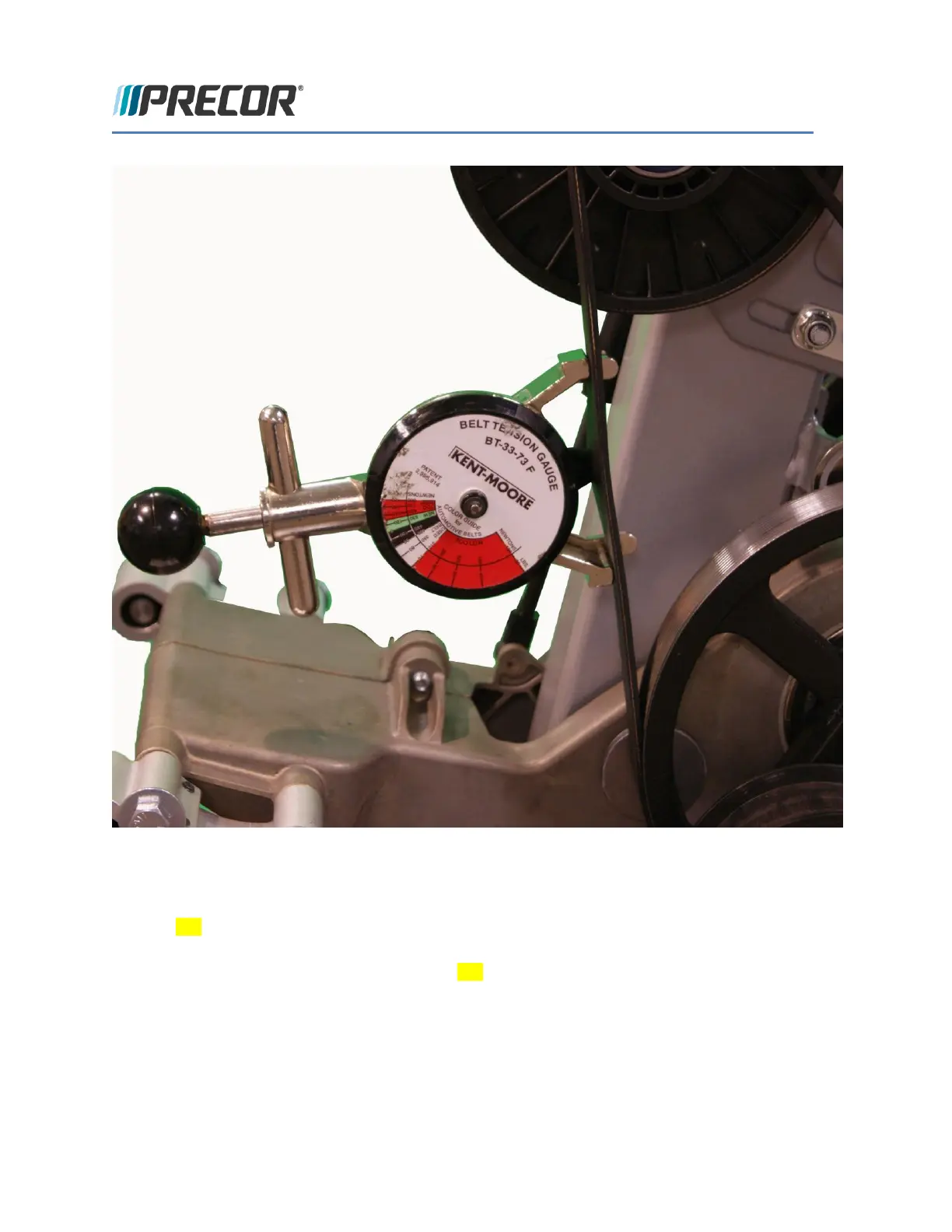

FIGURE 214: STEP UP PULLEY
