Precor AMT12 base - Page 217

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 217

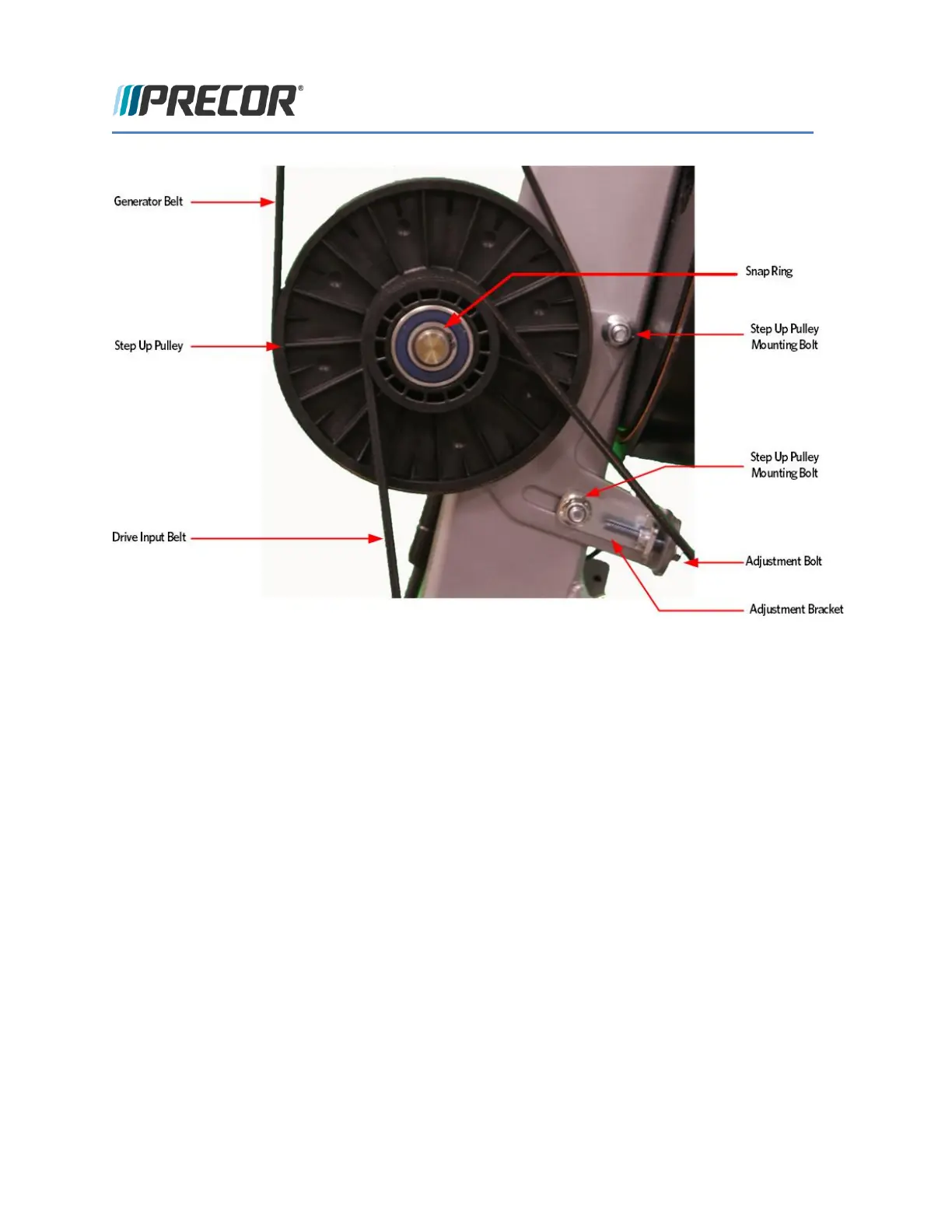

32 Tighten the two step up input pulley mounting bolts. Torque to 160 inch pounds
33 Install the generator belt over the step up pulley and generator pulley.
34 Place a belt gauge on the generator belt as shown in below.
