Stride Dial Assembly Installation
4 Secure the replacement stride dial assembly to the frame with the two screws, do not fully tighten the
screws.
5 Adjust the stride dial bracket until the stride dial target is centered between the two stride sensors on
the stride dial PCA.
6 Fully tight in the two screws that secure the stride dial sensor to the frame.
7 Reconnect the stride dial cable connector to the stride dial sensor, ensure the cable is routed and
secured away from the H-Brake cam stops.

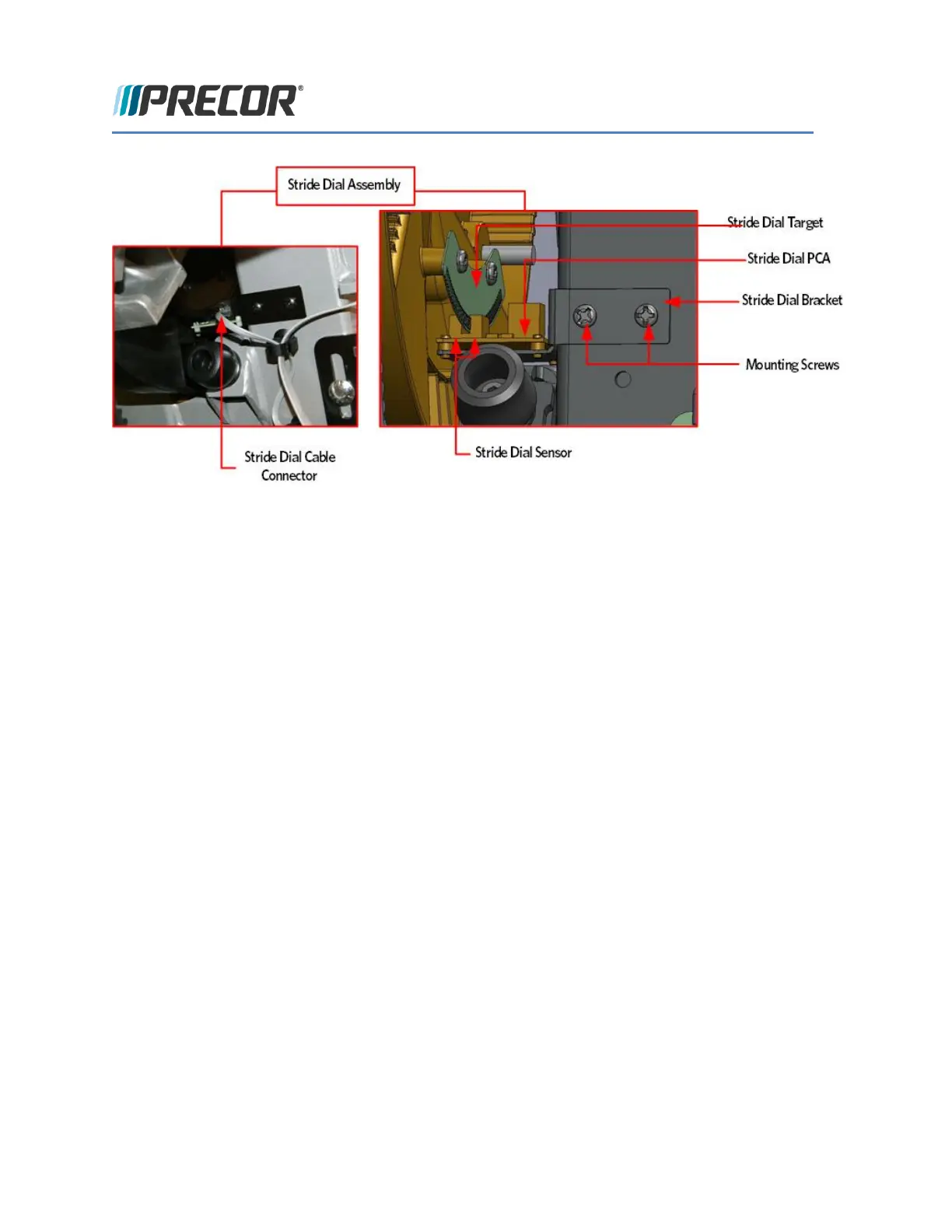

FIGURE 222: STRIDE DIAL ASSEMBLY
