Precor AMT12 base - Replacing the H-Brake Cam Assembly

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 227

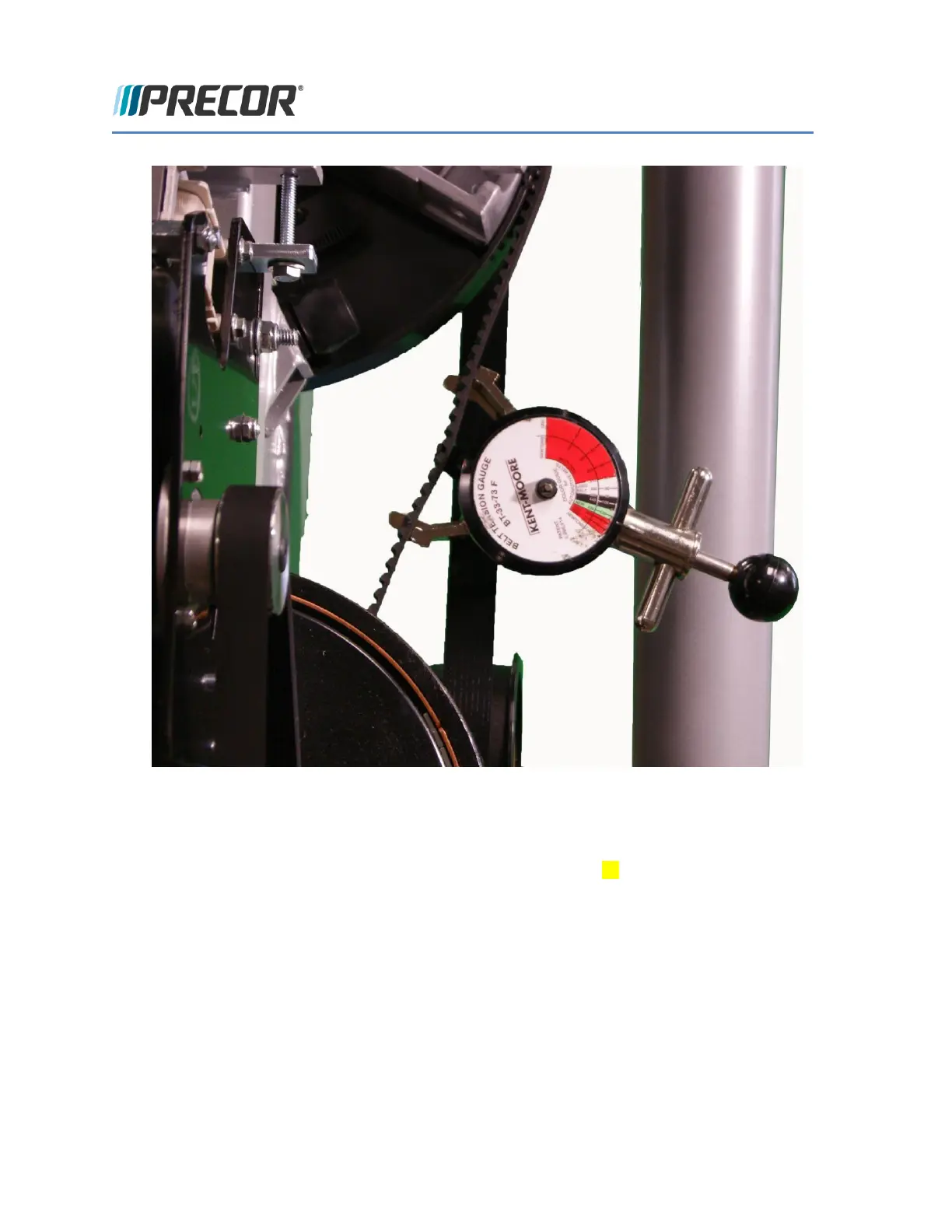

10 The belt gauge should read approximately 110-120 lbs. If the belt tension is significantly high or low the
belt tension may be adjusted by loosening or tightening the H-Brake adjustment bolt.
11 Replace the covers per procedure, Cover Replacement (on page 53).
Replacing the H-Brake Cam Assembly
FIGURE 226: H-BRAKE BELT AND H-BRAKE CAM
