© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 228
Procedure
1 Remove the covers as described per procedure, Cover Replacement (on page 53).
H-Brake Belt Removal
2 Remove the H-Brake tension bolt, the two washers and nut.

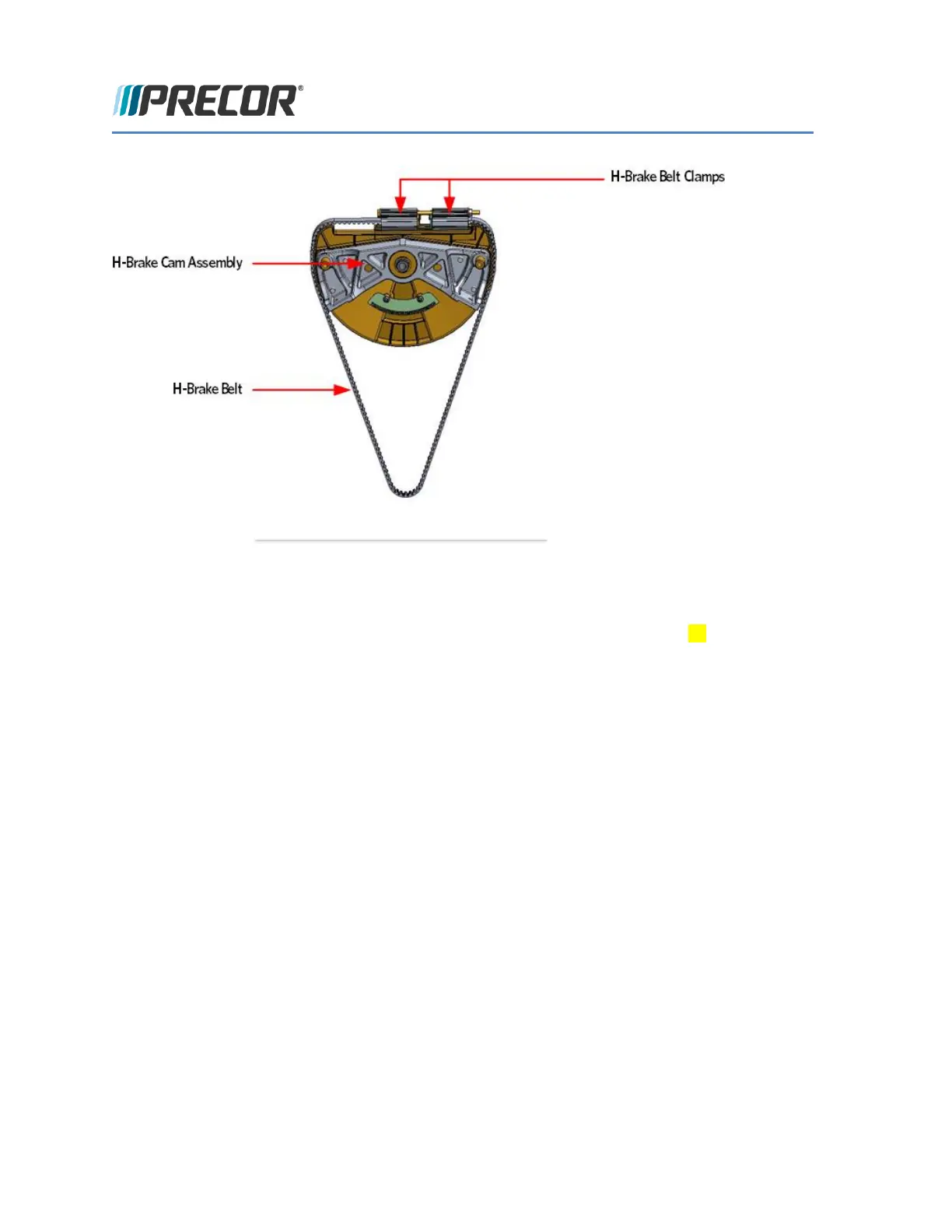

FIGURE 227: H-BRAKE BELT ASSEMBLY
