3 Slide the right side belt clamp off the cam towards the right, thread the clamp under the cam and out to
the left side of the AMT.
4 Slide the left side belt clamp off the cam towards the right and remove.
Stride Dial Removal
5 Disconnect the stride dial cable connector from the stride dial PCA.
6 Remove the two screws that secure the stride bracket to the frame and then remove the stride dial
assembly.

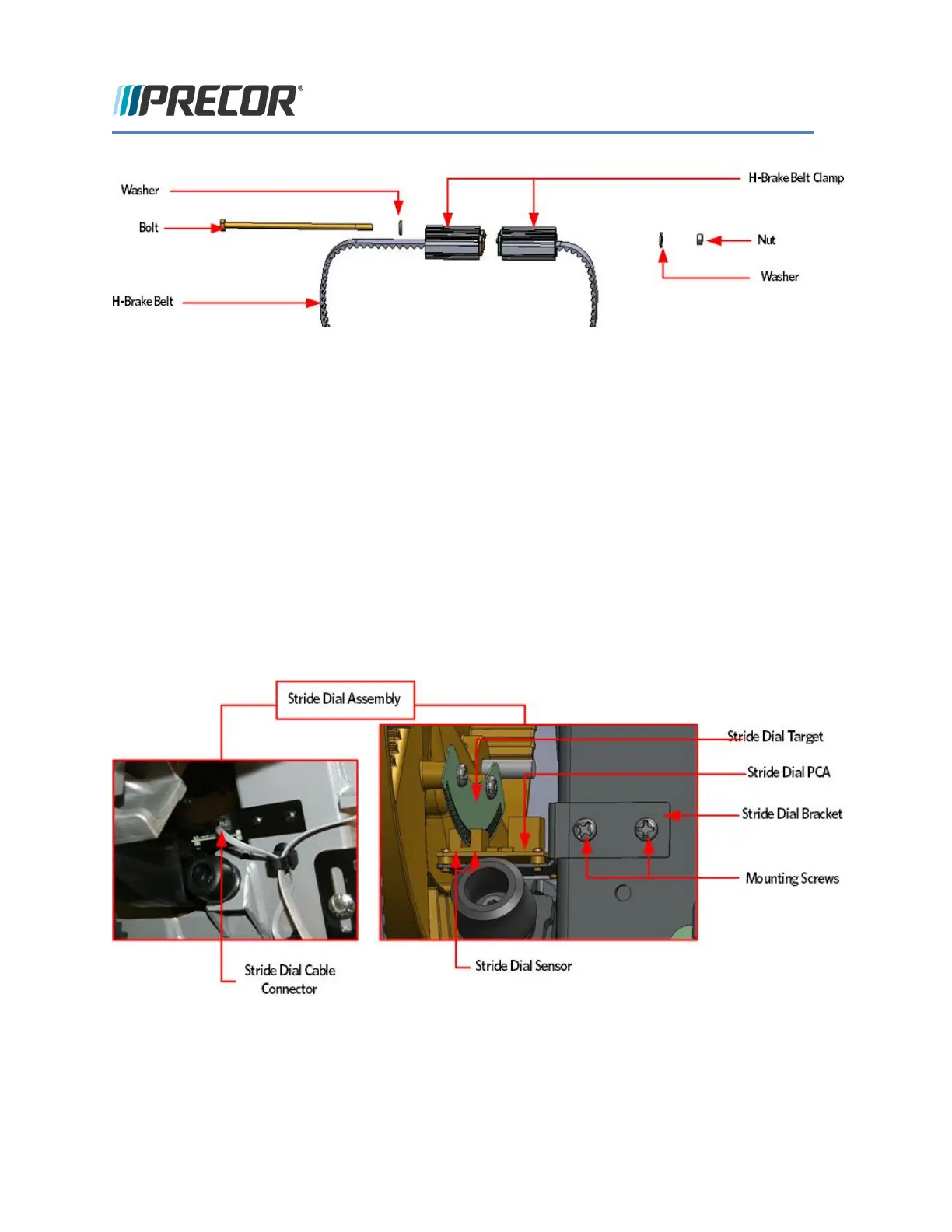

FIGURE 228: STRIDE DIAL ASSEMBLY
