Tie Rod Removal
7 Remove the tie rod mounting bolts and washers that secure each lower tie rod end to the cam assembly.

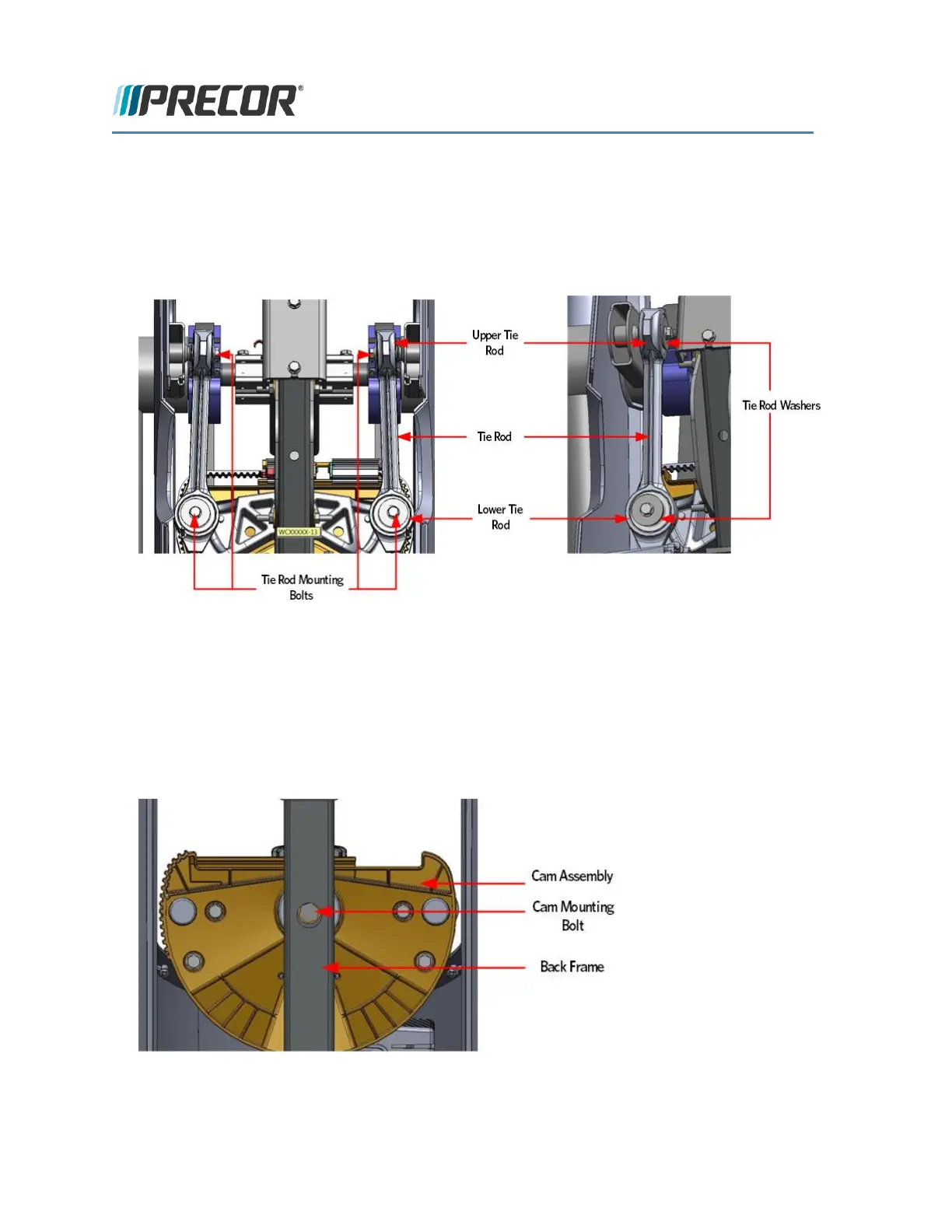

FIGURE 229: TIE RODS
H-Brake Cam Removal and Installation
8 Remove the bolt and washer that secures the cam assembly to the frame.
FIGURE 230: CAM ASSEMBLY
