© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 237
12 Remove the Incline motor mounting bolt and remove the Incline motor.

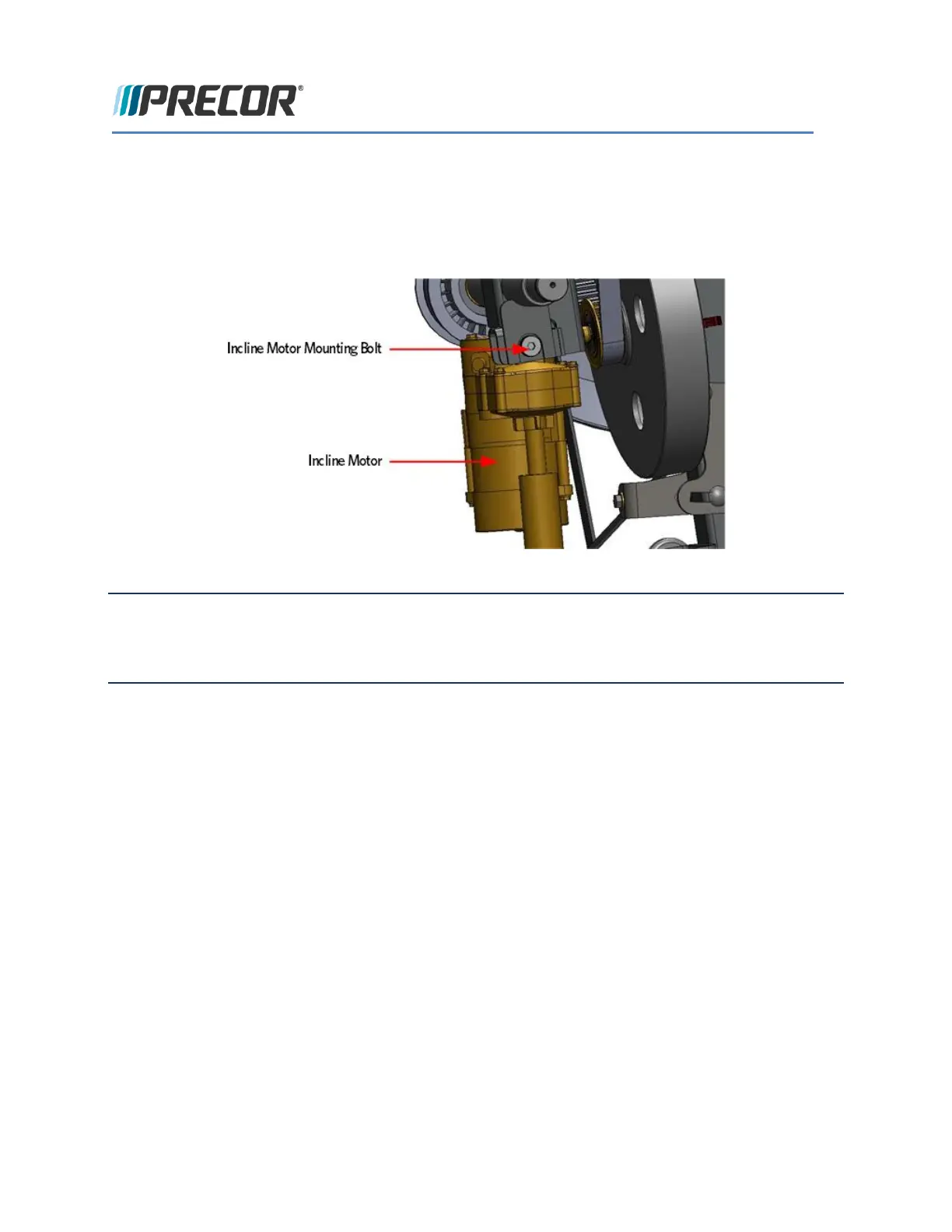

FIGURE 237: INCLINE MOTOR MOUNTING
Note: On 10/1/2012 the H-Brake 90 degree mounting bracket was removed from the front side of the
H-Brake Drum. The H-Brake Drum was then secured with a single bolt through the front side of the
H-Brake into the frame. The following steps will describe the removal and installation of the H-Brake
Drum for both configuration.
H-Brake Drum Removal and Installation - Units Built Prior to 10/1/2012
13 Remove the screw that secures the H-Brake drum assembly to the 90 degree bracket mounted on the
frame.
14 Remove the 5/16-18 X 4 bolt and washer that secure the H-Brake assembly drum to the frame and then
remove the H-Brake drum assembly.
15 Hand Tighten the replacement H-Brake assembly to the frame using the 5/16-18 X 4 bolt and washer
removed in the previous step.
16 Fasten the screw that secures the H-Brake drum assembly to the 90 degree bracket mounted on the
frame.
17 Torque the H-Brake mounting bolt to 600 inch pounds (50 ft-lbs).
