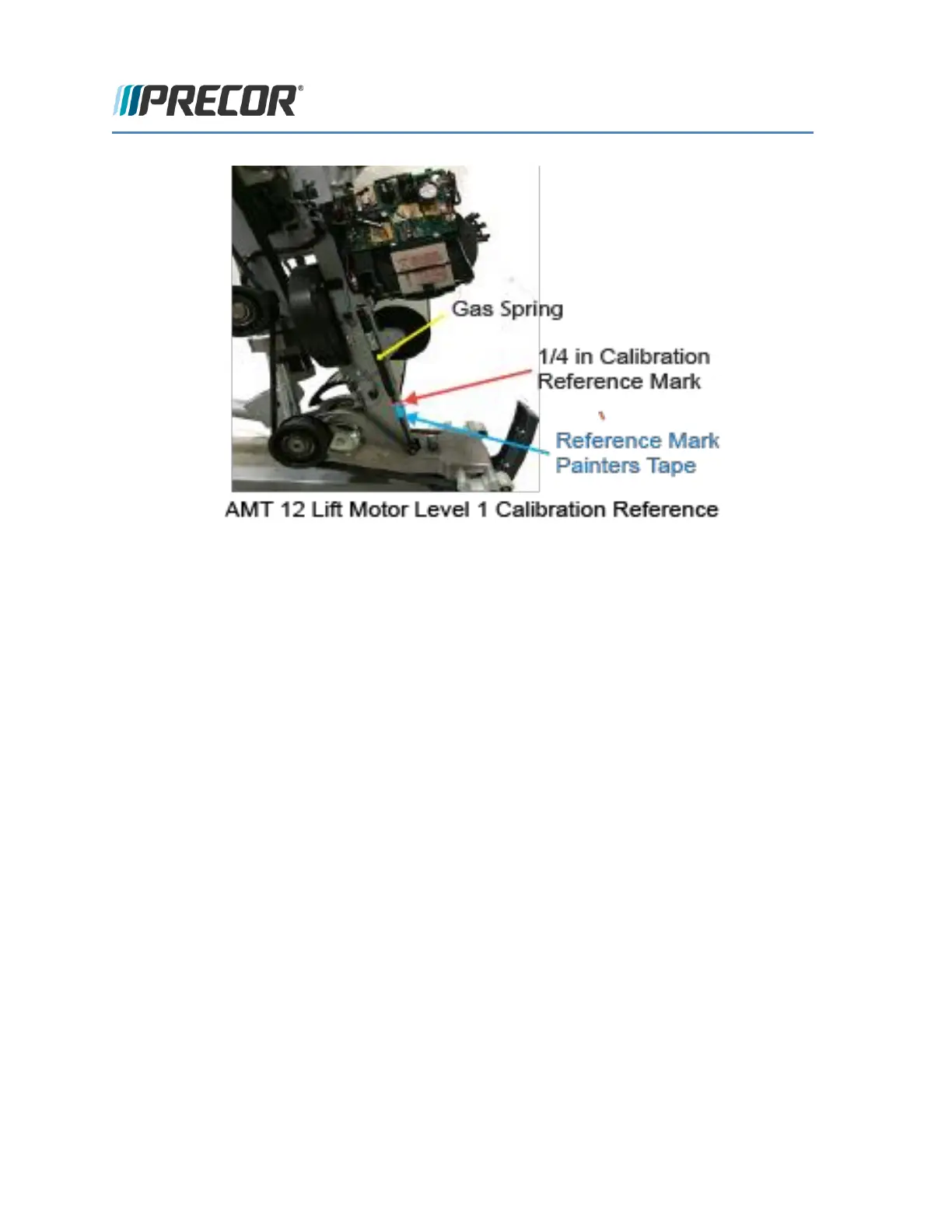

17 Manually raise the lift platform (compresses the gas spring) to the 1/4 inch reference mark “painters
tape” and secure the lift platform position. You can use a block, shims, or a ratcheting strap
(recommended) to hold the lift platform in position while reattaching the lift motor to the platform.
18 Rotate and adjust the lift actuator tube so that the lift actuator tube and lift platform bracket mounting
holes align. Insert the clevis pin and secure with the hitch pin.
19 Remove the painters tape from the gas spring shaft.
20 Clear the lift motor platform area from any obstructions (shims, blocks, etc.) that can interfere with the
lift system up/down movement.
21 Reinstall the left/right flat belts.
22 Access the CROSSRAMP hardware validation program.
23 Set the Cross Ramp to level 5.
24 Verify the A/D value is between 212 and 216.
25 Verify that the gas spring outer housing to lift platform clearance is between ¼ to ¾ inches.
