Section 18: BODY
PA1562
44

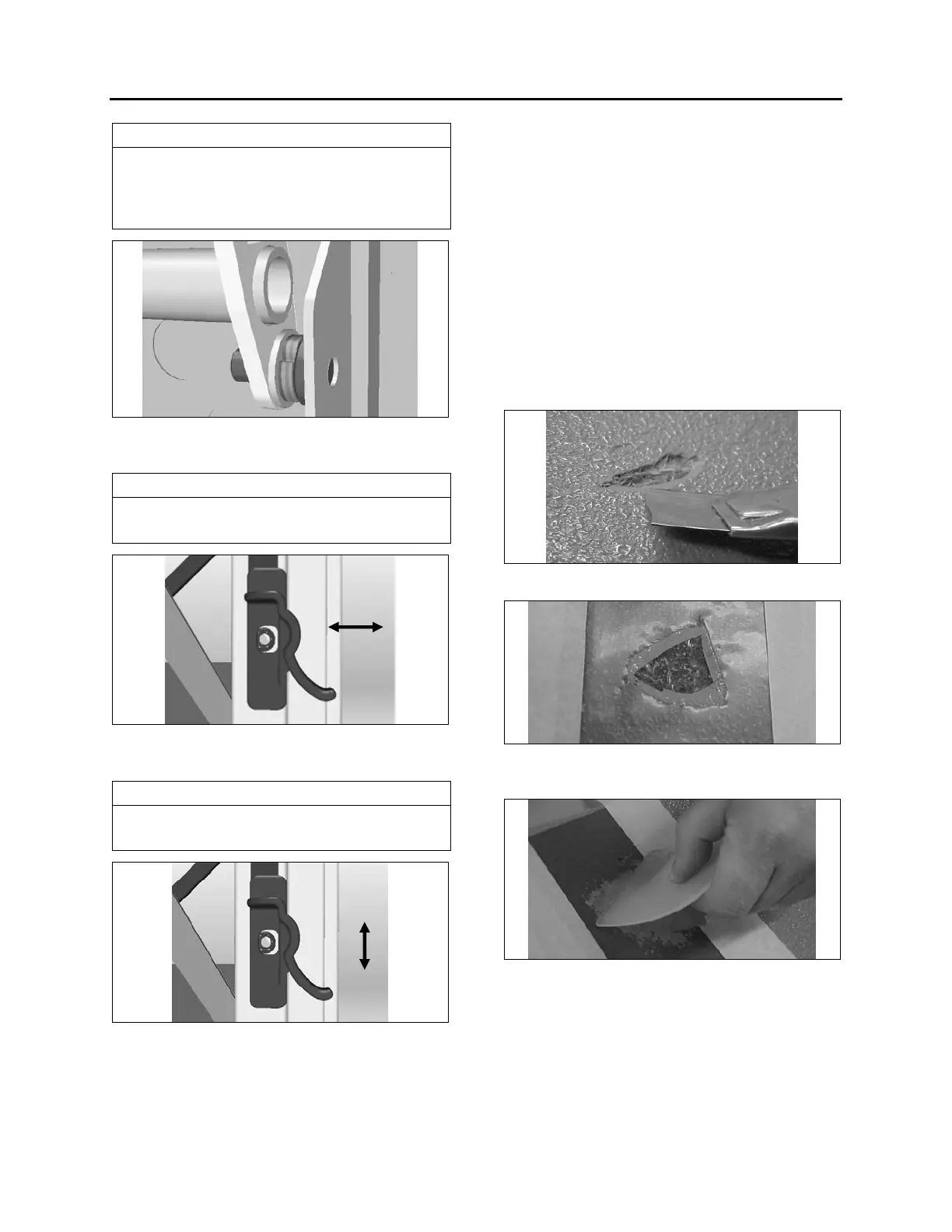

NOTE
Adjustment is made using shims on the side
plates. A total of 8 shims per door must be
used e.g. 4 on L.H. side and 4 on R.H. side or
2 on L.H. side and 6 on R.H. side, etc.
• Adjust door position and evenness with
reference to adjacent panels and doors.
NOTE
Adjustment is made by moving IN or OUT the
lock plates. Adjust one corner at a time.
• Check handle adjustment. Handle must
remain tight against its plastic housing.
NOTE
Adjustment is made by moving UP or DOWN
the lock plates.
• Open baggage compartment door and
adjust height using the catch plates.
• Tighten cylinder blocks fixing screws.
11.2 BAGGAGE COMPARTMENT FLOOR
11.2.1 Repair of Mantex Urethane Covering
Minor Repair
Use “Dupont IMRON” paint. Apply using a paint
brush or roller depending on gravity.
Paint Code: #J4099U
Major Repair (Hole)
Chamfer the whole perimeter of the damaged
area. If applicable, remove loose covering.
Remove dust and particles.
Cover and protect damaged area surroundings.
Using a plastic spatula, apply some Sika 221
grey onto the damaged area.
Remove masking tape and protection around
damaged area.
Spray pure water onto Sika. Use a floor sample
to create some texture onto the adhesive.
If possible spray some more water onto the
adhesive to accelerate curing.
