Section 18: BODY
PA1562
55
Wear surgical gloves and smooth down the joint with your
finger.

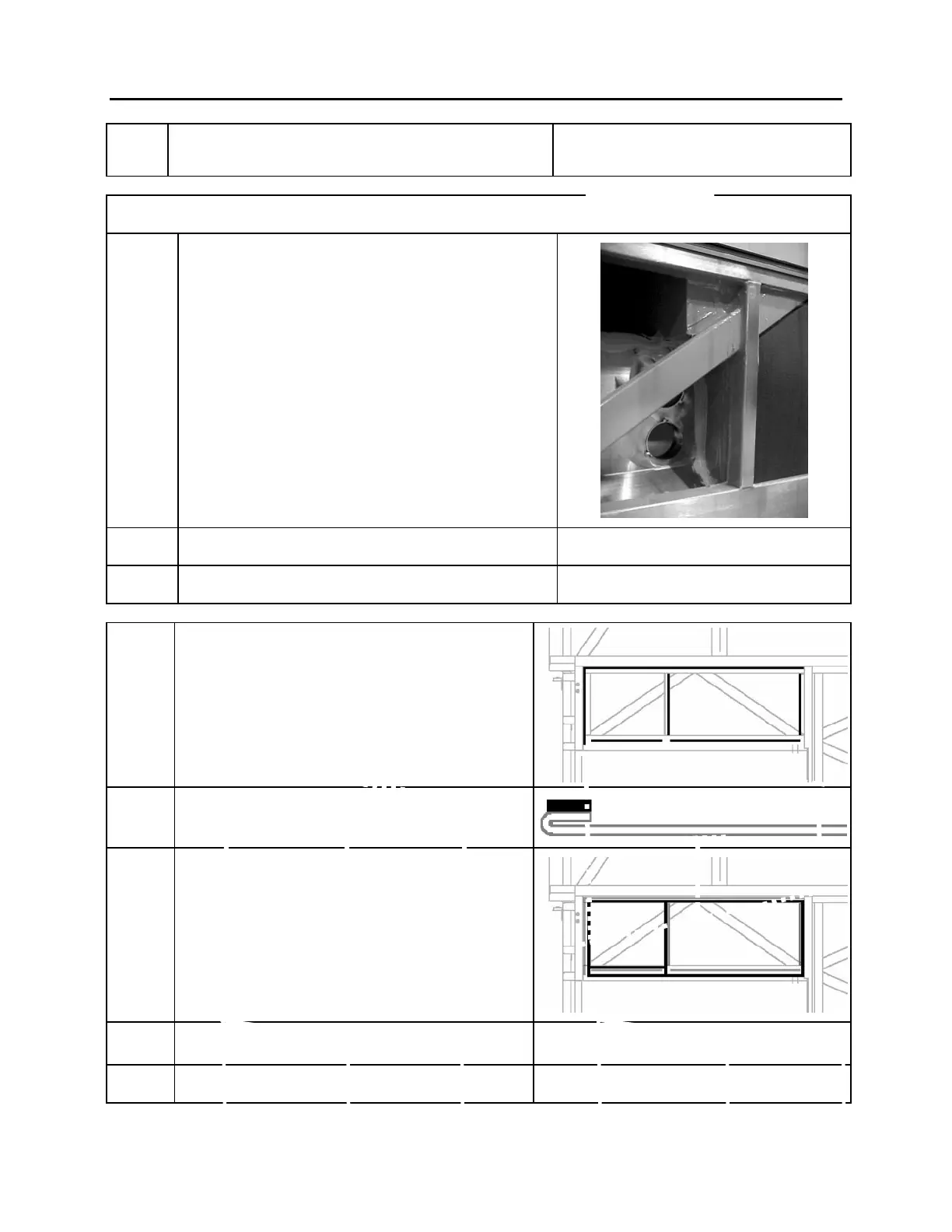

SECTION 4 ENGINE AIR INTAKE PANEL INSTALLATION
4.00
Make sure that sealing of structure has been performed
properly
4.05
Prepare vehicle surface as for side panel. Refer to step # 2.00
4.10
Prepare air intake panel as for side panel
Refer to step # 2.05
4.15
Install foam tape 1/8" X ¼" onto structure, as shown in
4.20
Install foam tape 1/16" X ¼ onto air intake panel pleat
4.25
Apply a bead of 252 onto structure as per picture
Important: Make sure bead is continuous
Triangular bead: 10mm x 8mm
4.30
Install panel onto structure Use a jig to make sure that panel is lined up with
engine door tubing.
4.40
Use a brush to compress Sika bead
