REMOVAL and INSTALLATION
MODEL 6800/338 BUS
MODEL 6800/338 PREMIUM LX
Lumbar and bolster
air bags
Set up
• Remove backrest components (see
Backrest assembly)
Removal
• Remove air bag clips, push fasteners
and cable ties
• Remove air bags
Installation
• Fasten air bags to backrest frame
with clips - put long clip arm over bar
and snap bottom of clip in place
• Install push fasteners and cable ties

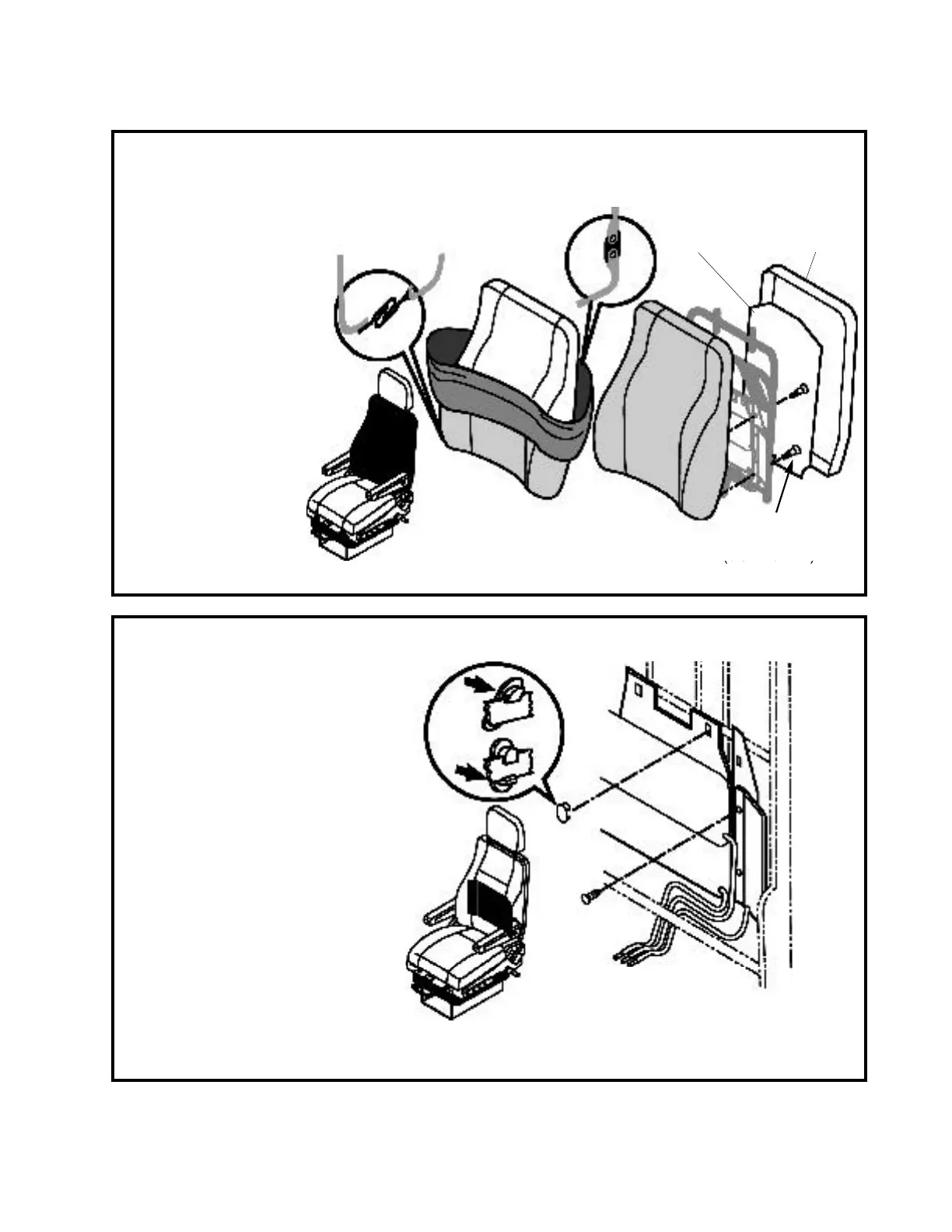

Backrest assembly
Set up
• Backrest must be removed
from seat (see Backrest)
Removal
• Premium XL - remove
upholstery and backrest
liner
• Bus - remove cover, hog
rings and wires.-- remove
upholstery
• Remove backrest cushion
fasteners -- remove cushion
Installation
• Fasten backrest cushion to
backrest frame with screws
• Premium XL - install
backrest liner and
upholstery
• Bus - install upholstery,
hog rings and wires.-- install
cover
torque to
5.3 - 8.8 lb in
(0.6 - 1.0 N•m)
do not over tighten
Premium XL
Premium XL
Bus
Bus
