Manual No. 7018081-02, Rel. Jun. 1999 © Copyright Isringhausen 1999
REMOVAL and INSTALLATION
MODEL 6800/338 BUS
MODEL 6800/338 PREMIUM LX

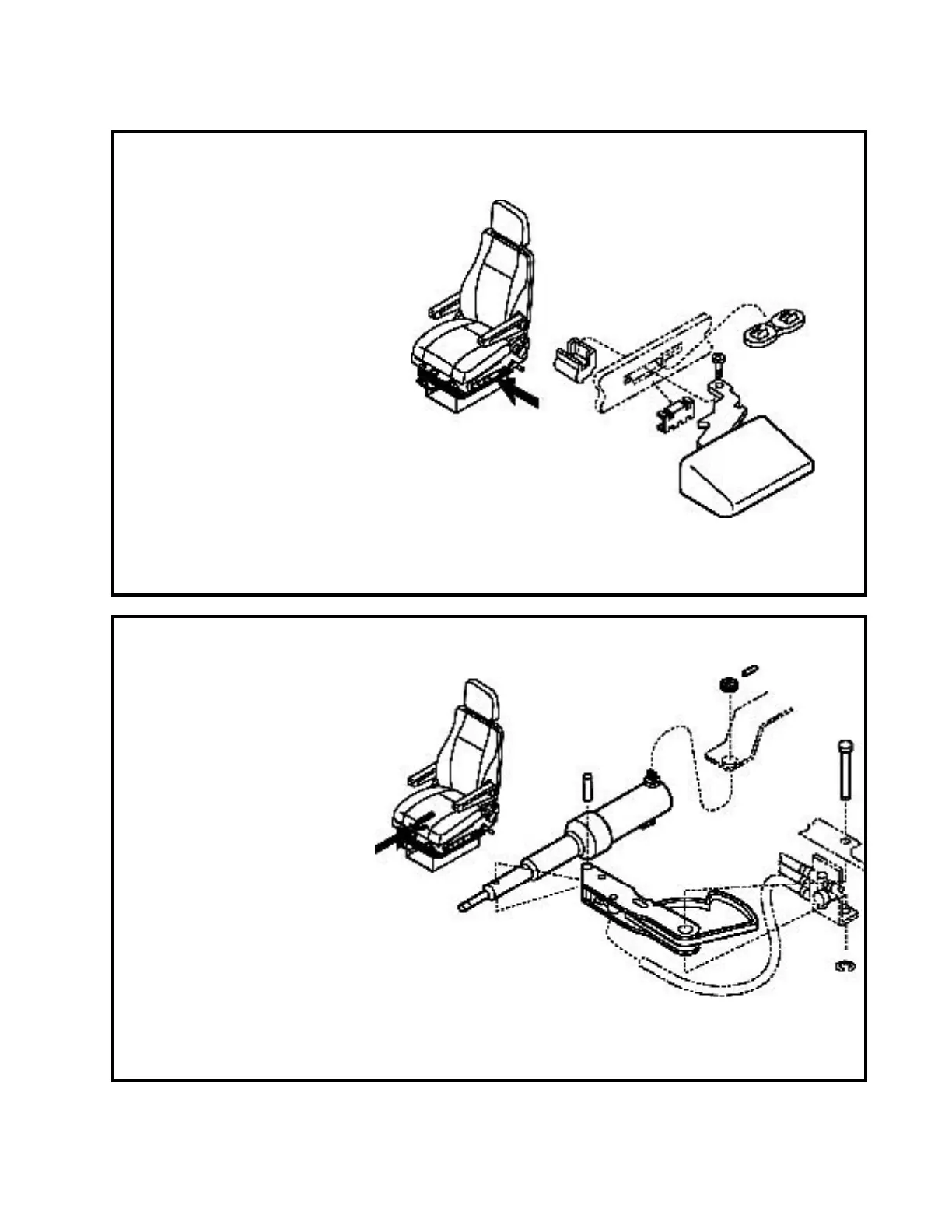

Height adjustment handle
Set up
• Vehicle must be in a safe parked
position or seat removed from vehicle
• Control cover must be removed (see
Covers front, LH and RH)
Removal
• Remove screw and cam
• Pull handle and lever out
• Remove retainers
Installation
• Put upper retainers in place
• Put lever in place
• Put lower retainers in place - be sure
it snaps in place
• Install cam and screw
• Install handle
Height adjustment cylinder
and cam
Set up
• Vehicle must be in a safe
parked position or seat removed from
vehicle
• Seat cushion must be removed from
seat (see Cushion seat pan)
Removal
Air cylinder
• Remove base end pin and retainer
washer - remove rod end fastener,
air line, and remove cylinder
Cam
• Remove rod end fastener
• Remove E ring and mounting pin
• Remove cam
Installation
Air cylinder
• Put cylinder in place and install base
end pin and retainer washer - install
rod end fastener, connect air line
Cam
• Put cam in place and install pin and
E ring
1 = Cylinder kit
2 = Cam kit
1
2
2
2
1
1 & 2
