REMOVAL and INSTALLATION
© Copyright Isringhausen 1999
MODEL 6800/338 BUS
MODEL 6800/338 PREMIUM LX

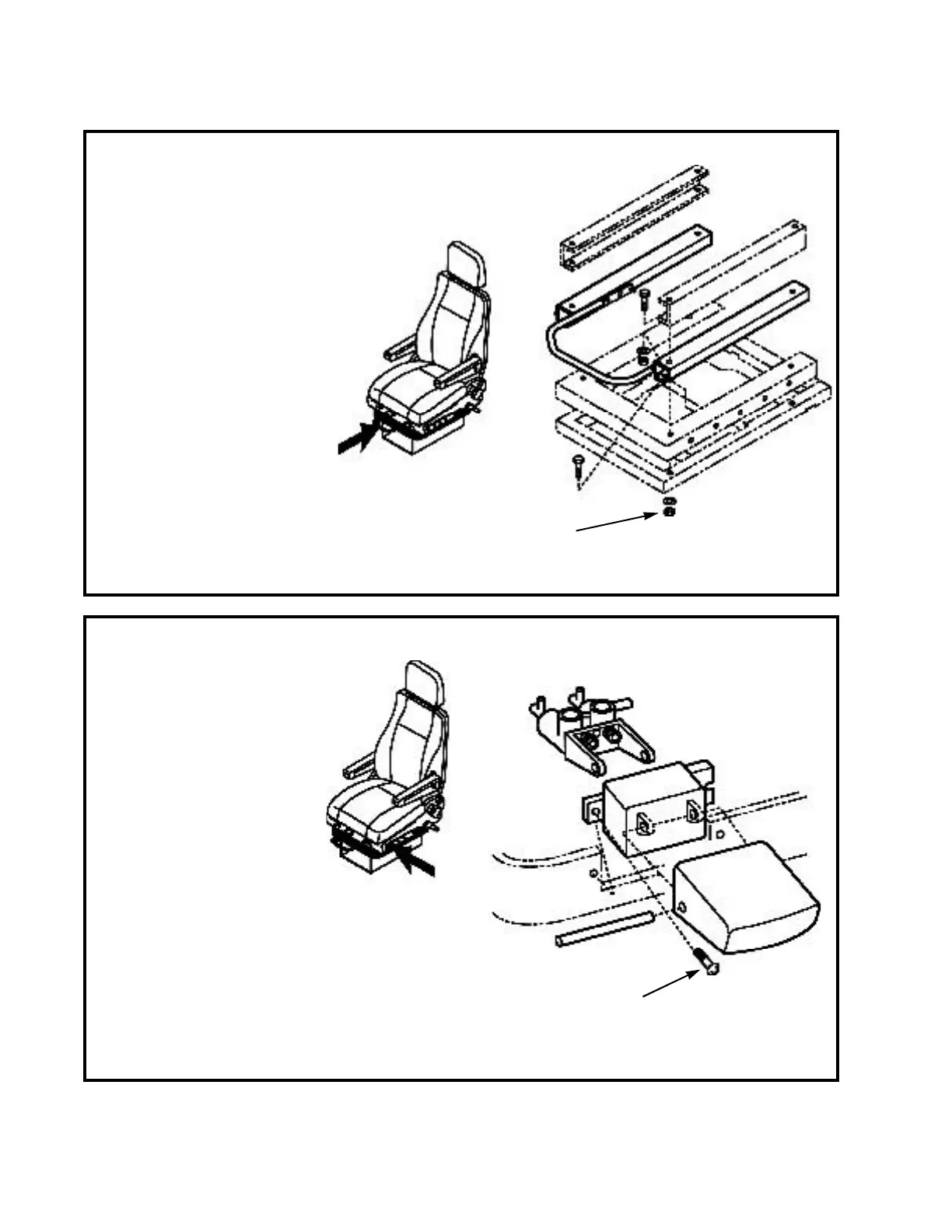

Horizontal adjustment
slide set
Set up
• Seat frame must be removed
(see Seat frame)
Removal
• Move horizontal adjustment
forward or back to allow
access to fasteners
• Remove mounting fasteners
Installation
• Move horizontal adjustment
forward or back to allow
access to fasteners
• Install mounting fasteners
torque to
14.8 - 18.4 lb ft
(20 - 25 N•m)
Quick air release - valve
and handle LH and RH
Set up
• Seat cushion must be removed
from seat (see Cushion seat
pan)
Removal
• Mark and remove air lines from
valve
• Remove valve fasteners
• Remove valve
• Remove valve handle pin and
valve handle
Installation
• Fasten valve handle to valve
with pin
• Fasten valve to seat frame with
screw
• Connect air lines
torque to
15.9 - 19.5 lb in
(1.8 - 2.2 N•m)
