PREVOST X3-45 Multiplex User Manual

Page No.16
NDS2 issue A
Spicer SpecialityAxle Division - Technical Publications
© Spicer Speciality Axle Division
PART N
O
DESCRIPTION TIGHTENING TORQUE
1 Wheel nut M18 x 1.5 ----------------------------------------------- 235 - 260 lbs.ft 318 - 352NM
Wheel nut M20 x 1.5 ----------------------------------------------- 285 - 315 lbs.ft 386 - 427NM
Wheel nut M22 x 1.5 ----------------------------------------------- 475 - 525 lbs.ft 644 - 712NM
8 Hub flange retaining bolt M14 x 1.5---------------------------- 174 - 192 lbs.ft 236 - 260NM
9 Brake drum retaining screw -------------------------------------- 26 - 32 lbs.ft 35 - 43NM
SWIVEL / HUB END TIGHTENING TORQUES

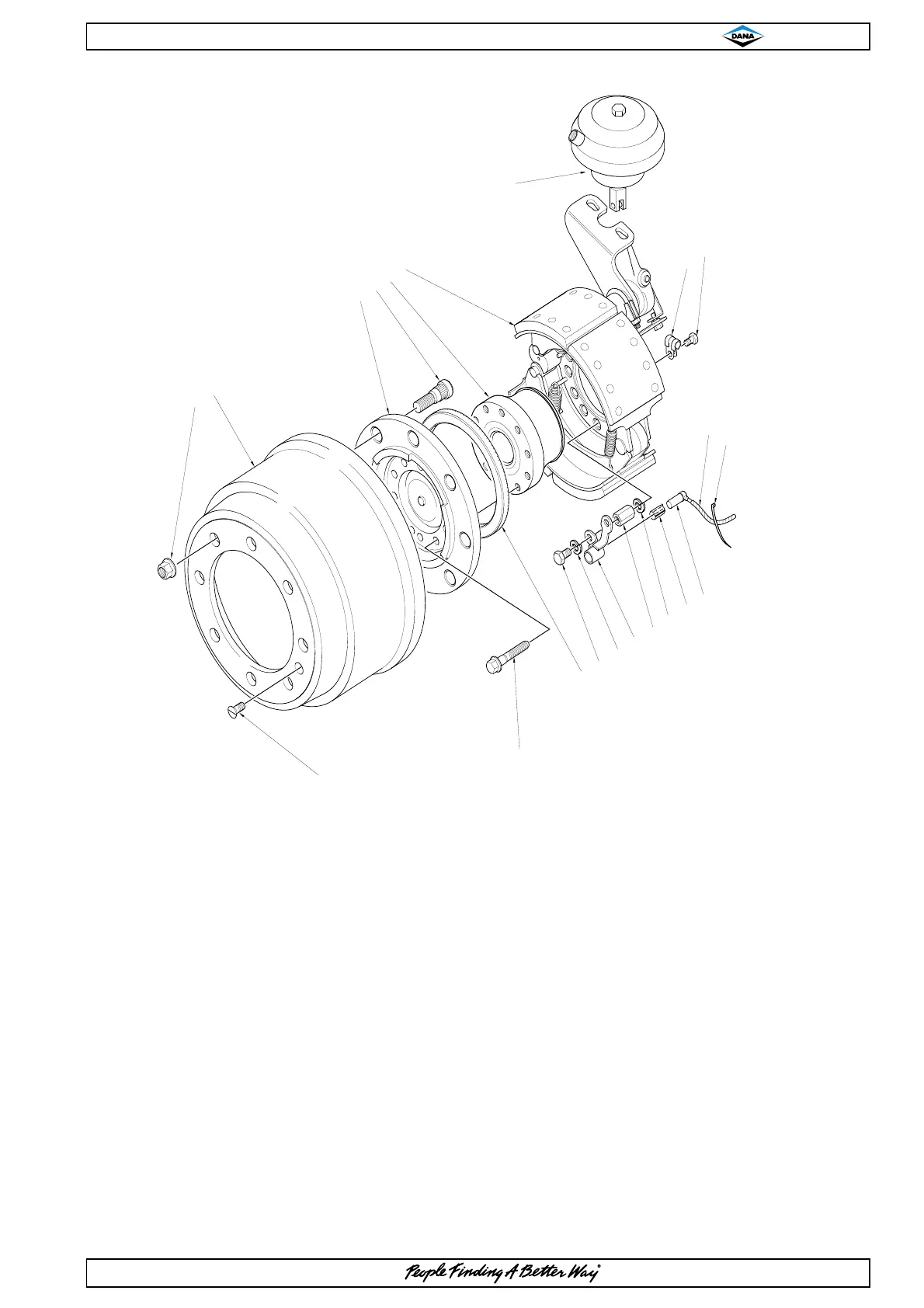

Fig.No.20
7
1
2
3
4
5
6
20
21
9
8
10
11
19
18
17
16
15
14
13
12
