OVERHAUL PROCEDURES

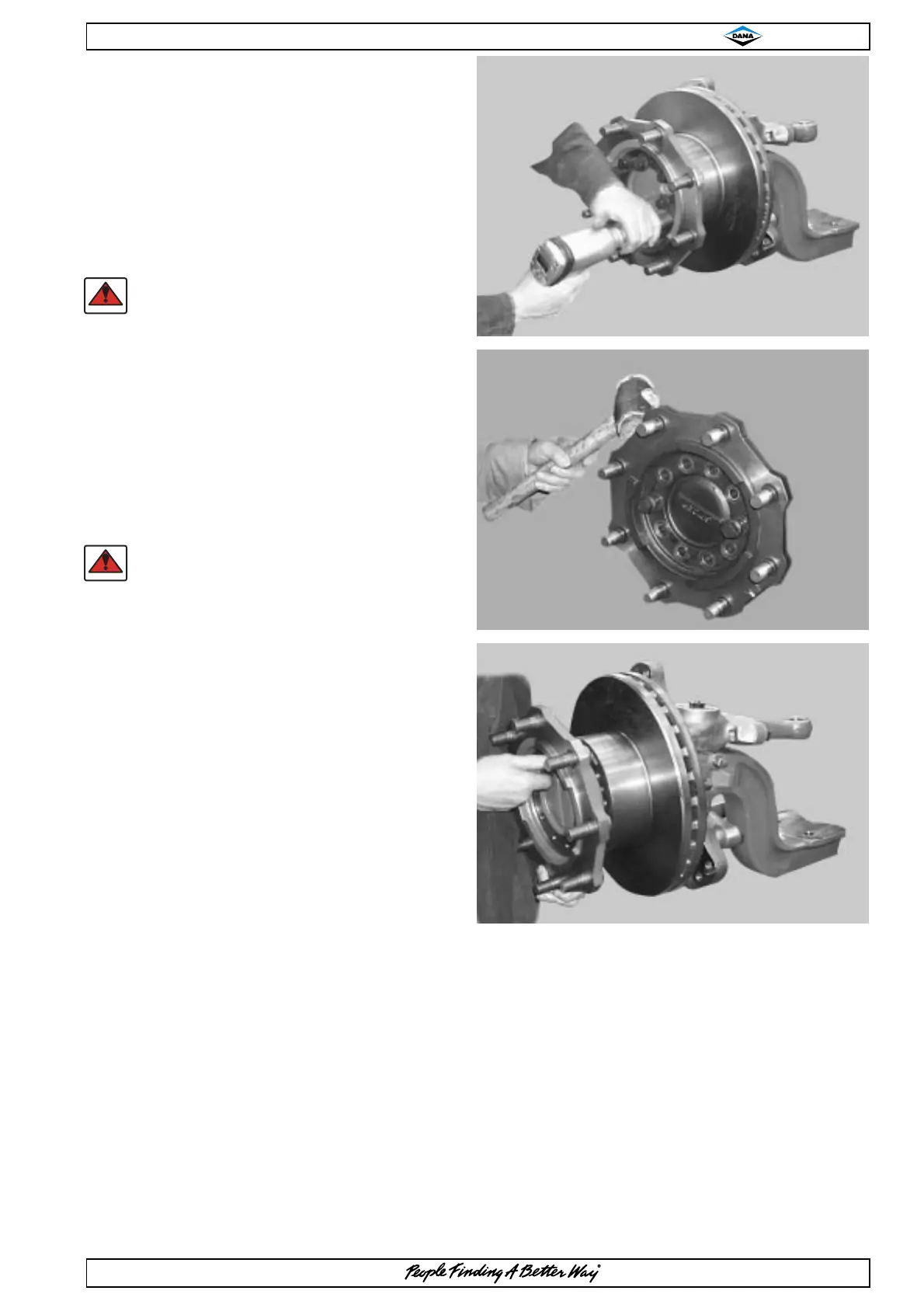

HUB END DISASSEMBLY
5. Loosen but do not remove hub flange bolts.
6. Remove 2 diametrically opposed hub flange
bolts.
7. Replace 2 diametrically opposed hub flange
bolts with 2 studs (loosely fitted).
NOTE!
REPLACEMENT STUDS SHOULD
PROTRUDE BEYOND FRONT FACE OF
HUB FLANGE TO AID REMOVAL
8. Gently tap hub flange outwards using a hide
faced hammer.
9. Support weight of hub flange and remove
hub flange retaining bolts.
10. Remove hub flange and place on a suitable
workbench.
WARNING!
COMPONENT IS HEAVY
ENSURE WEIGHT IS FULLY SUPPORTED
BEFORE REMOVING RETAINING BOLTS.
11. Inspect wheel studs and remove for
replacement, any that are found to be
defective.
