OVERHAUL PROCEDURES

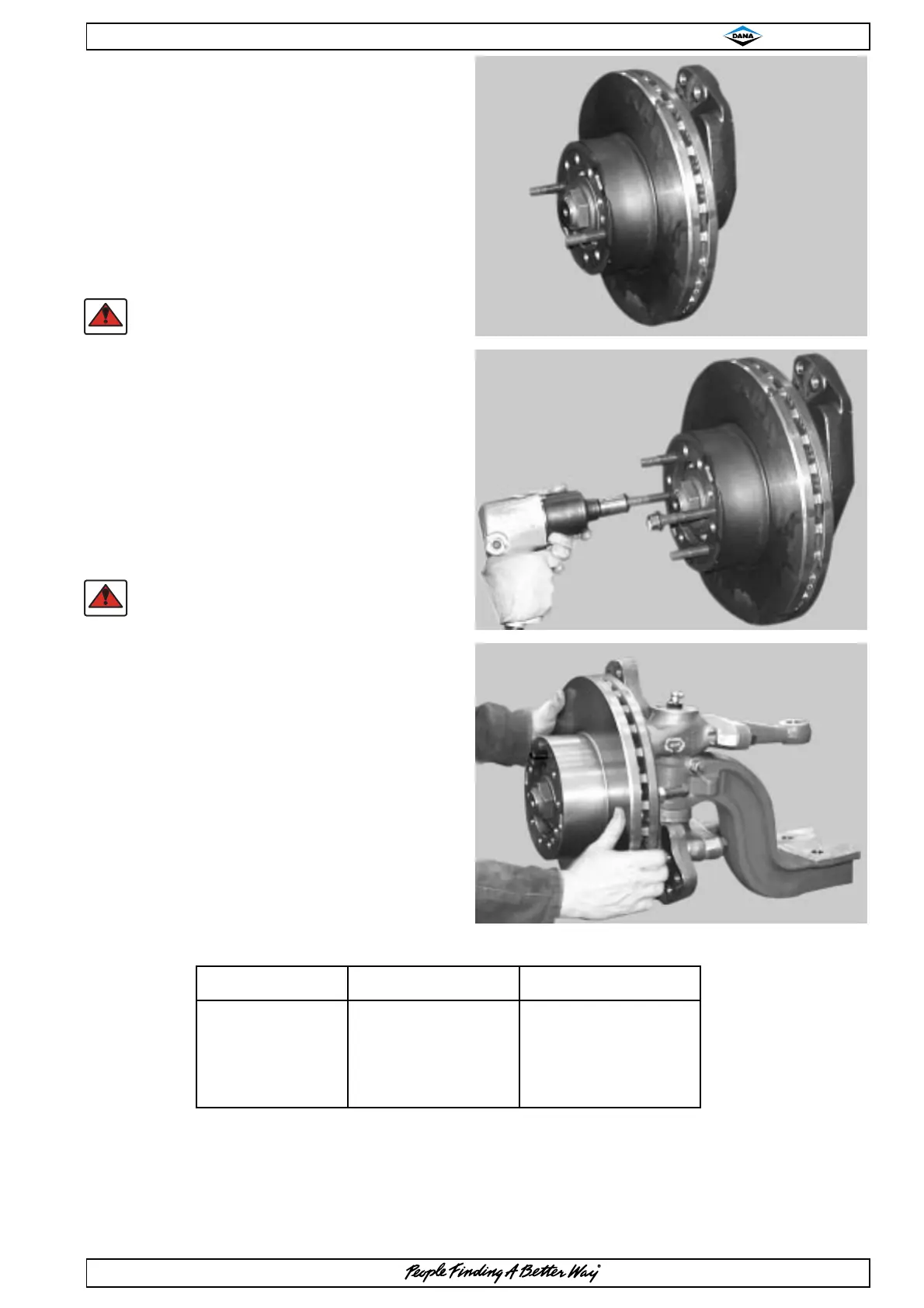

HUB END DISASSEMBLY
12. Once hub flange has been removed, insert
two bolts into brake disc extraction holes
13. Tighten to free brake disc from hub bearing.
14. Support weight of brake disc and carefully
slide along dummy studs to remove.
WARNING!
COMPONENT IS HEAVY
ENSURE WEIGHT IS FULLY SUPPORTED
BEFORE REMOVING .
15. Place brake disc on a suitable work bench
and inspect for cracks and defects, Replace if
necessary.
(See Lubrication and maintenance section for
details of typical defects and acceptability)
Check brake disc thickness is within
manufacturers specifications.
Refer to table below for Acceptable
dimensions:
WARNING!
DO NOT ALLOW BRAKE DISC TO WEAR
BELOW MINIMUM THICKNESS!
Brake disc type Original thickness Minimum thickness
SB5000 34MM 28MM
SB6000 45MM 37MM
SB7000 45MM 37MM

PREVOST X3-45 Multiplex Specifications

General

Length	45 ft
Width	102 in
Engine	Volvo D13
Horsepower	500 hp
GVWR	54, 000 lbs
Height	146 in
Sleeping Capacity	Varies based on floor plan
Water Capacity	Varies based on floor plan
