Page No.14
Manual No. NDS8
Spicer Speciality Axle Division - Technical Publications
© Spicer Speciality Axle Division
OVERHAUL PROCEDURES
HUB END REASSEMBLY CONTINUED

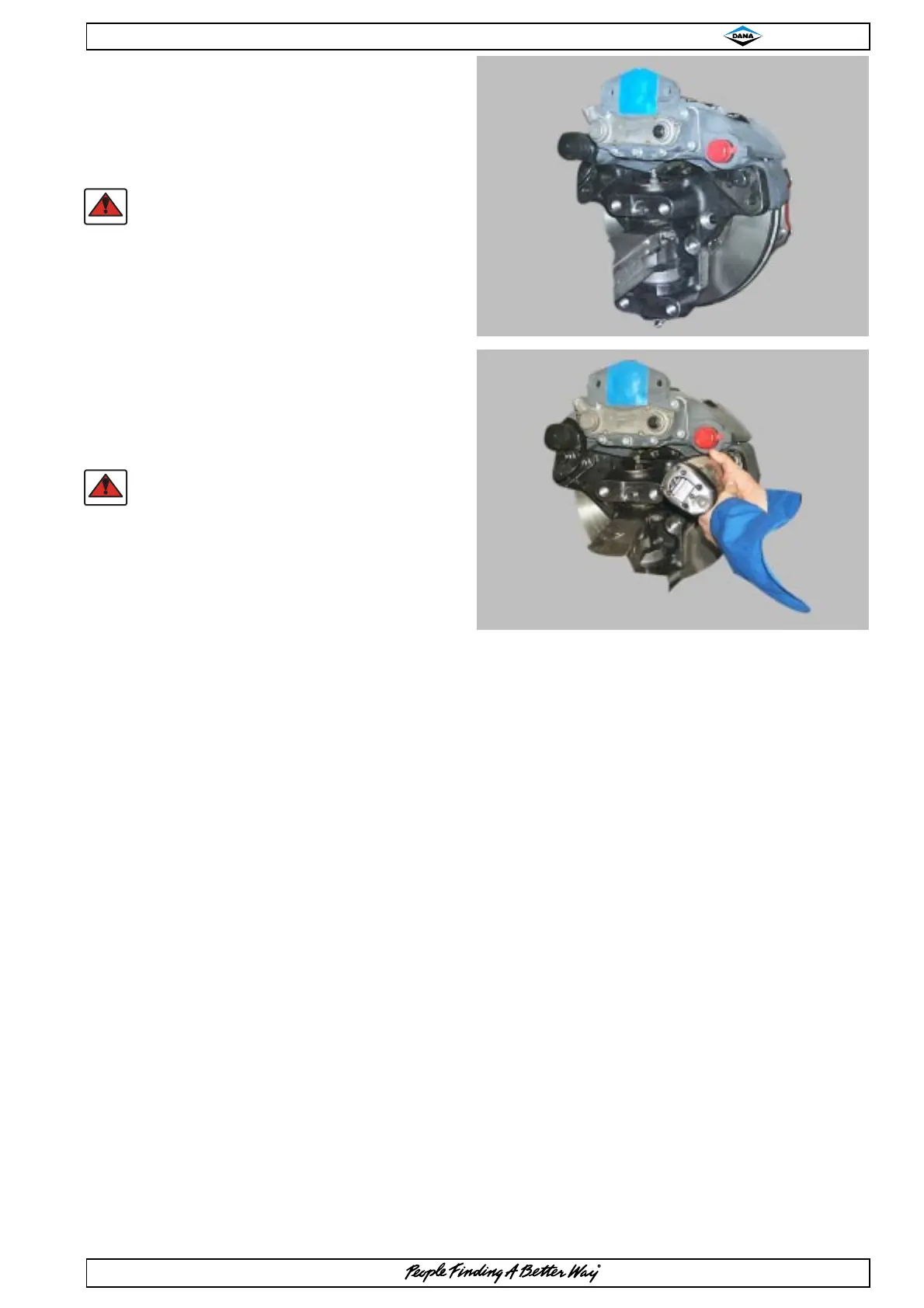

27. Using suitable lifting equipment, support the
brake caliper.
WARNING!
BRAKE CALIPER IS HEAVY.
28. Offer brake caliper up to brake bracket.
(Ensure correct hand of brake caliper is
selected)
29. Insert brake caliper retaining bolts and
tighten hand tight.
30. Tighten brake caliper bolts to secure
assembly.
31. Remove caliper lifting equipment
WARNING!
BRAKE CALIPER IS HEAVY
ENSURE WEIGHT IS FULLY SUPPORTED
BY RETAINING BOLTS BEFORE
REMOVING LIFTING EQUIPMENT.
32. Tighten brake caliper bolts to correct torque.
33. If the brake caliper air chamber has been
removed; Refit to caliper and tighten nuts to
correct torque.
NOTE!
TAKE CARE NOT TO DAMAGE PAD
WEAR SENSOR CABLE DURING
REASSEMBLY OF CHAMBER TO
CALIPER.
