Insert input shaft
into cover

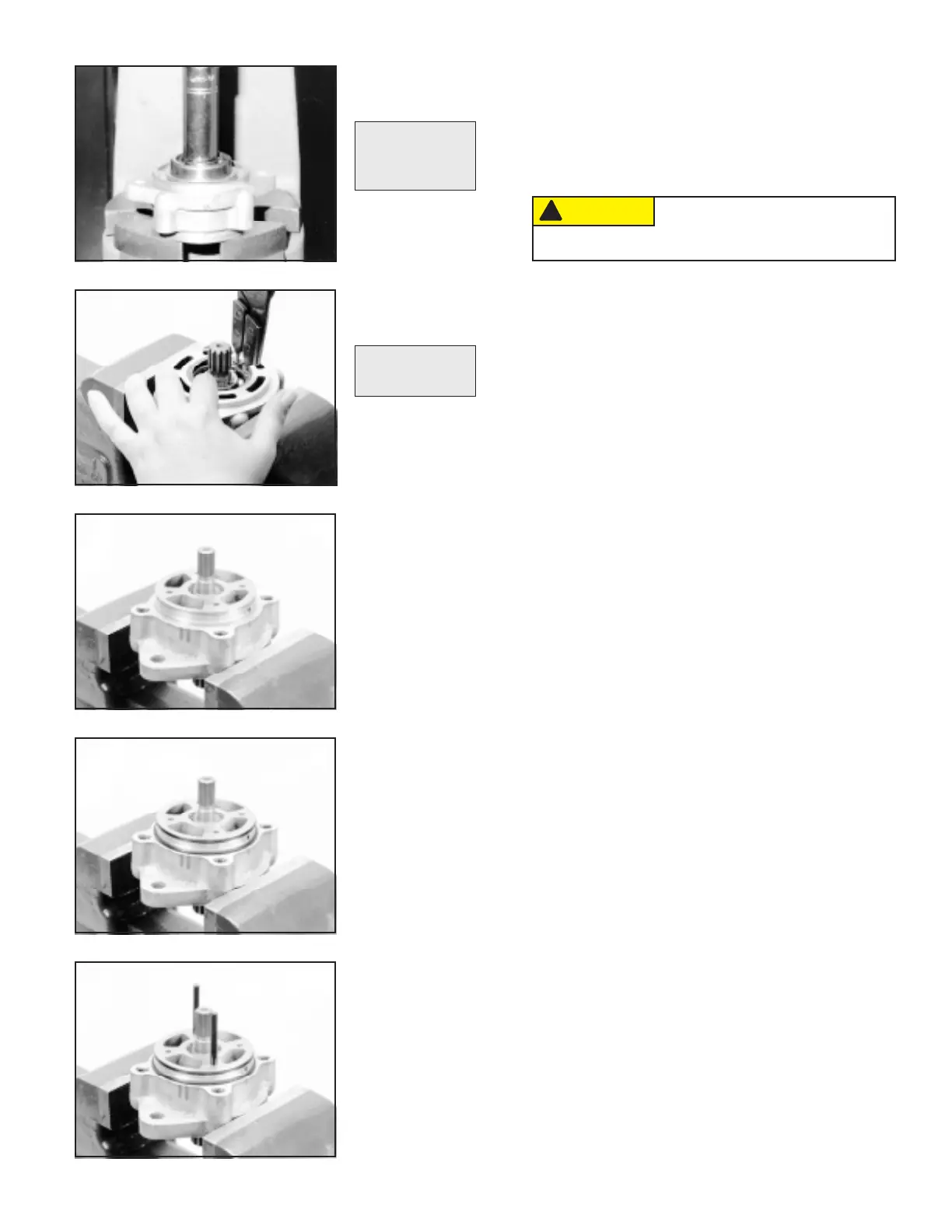

5. Place the cover in a vice and install the large retain-
ing ring (27) with the sheared edge out. Don't
deform the cover with excessive clamping force.
Install large
retaining ring
Retaining ring
pliers
If splines contact the shaft seal, the
seal can be damaged. Take great
care to not allow contact. Tape splines if desired.
Press
7/8"" Deep well
socket
4. Insert the input shaft (28), small splined end first,
into the cover. Don't allow the splines to contact
the shaft seal (23). Engage the shaft into the seal by
hand until the ball bearing contacts the cover.
Use a 7/8" socket or other appropriate tool to press
the shaft and bearing into the cover until it bottoms.
6. Reverse the cover assembly in the vice. Don't
deform the cover with excessive clamping force.
7. Install a new large o-ring (20), onto the cover with-
out rolling it. Make sure it is properly seated on the
cover sealing surface.
Install a new small o-ring (19) onto the cover without
rolling it. Make sure it is properly seated in its
groove.
Reverse the cover
assembly
Install o-rings
8. Install the locating pins (18) according to the marks
you made on the outside of the housing during
disassembly.
Install locating
pins
CAUTION!
