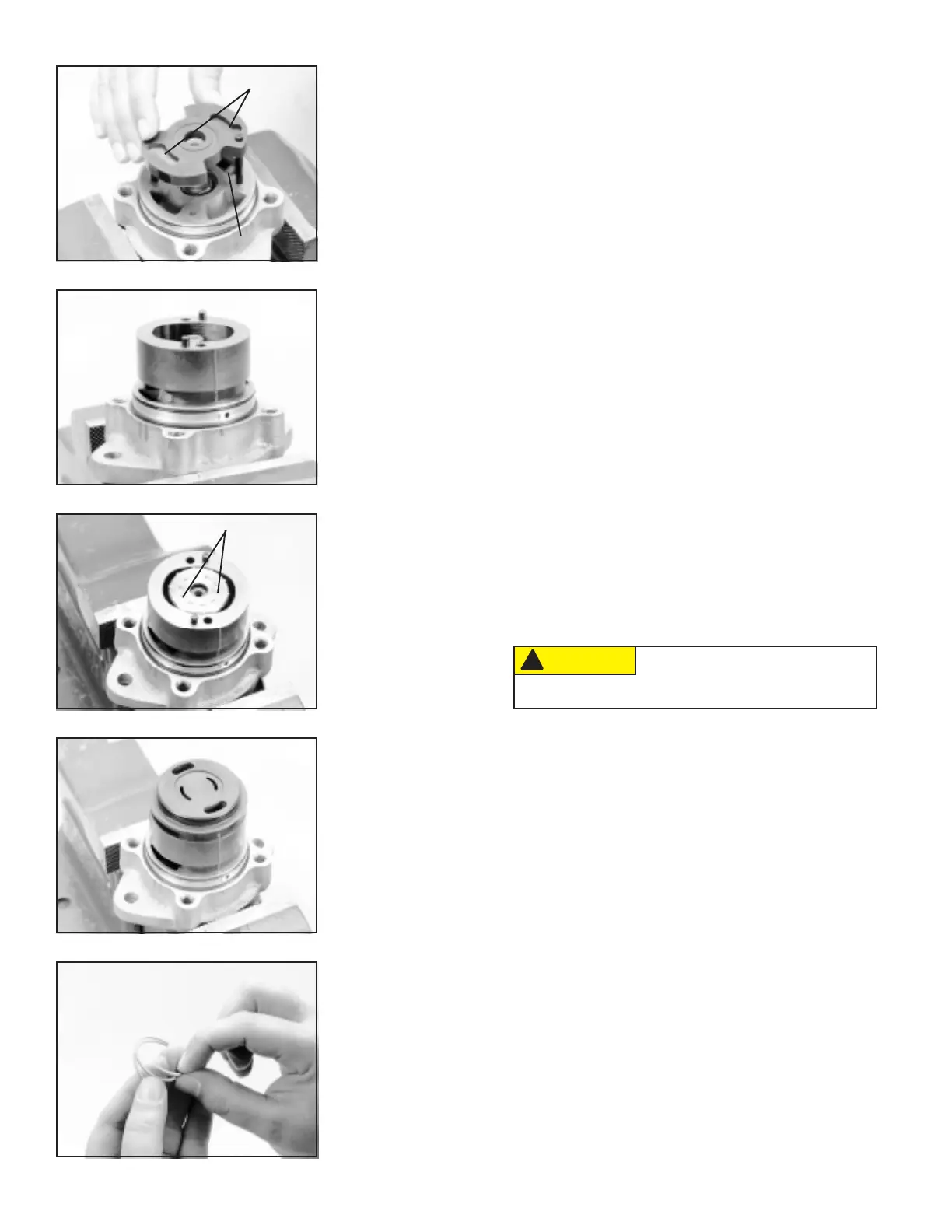

9. Notice there is a bar in one of the four cutouts in the
cover. This bar should be covered by the bottom
plate when it is installed. Install the bottom plate
(17) with the pockets facing up. The bottom plate is
installed correctly if the:
• bar is covered,
• pockets face up,
• outermost edges are fairly symmetrical with the
mounting surface,
• marks made for internal components align.
Install bottom
plate
10. Install the cam ring (14) with the dots facing up or
down as noted during disassembly. Locating pins
go into the smaller holes, the cam ring will only fit
properly one way.
The installed cam ring should be fairly flush with the
bottom plate at the large outside diameter. Align-
ment marks made during disassembly should be
aligned.
Install cam ring
Install rotor and
vanes
Install top plate 12. Install the top plate (13) with the pin holes down.
The locating pins (18) must be engaged in the pin
holes, not the pockets.
The top plate should be fairly flush with the cam
after installation. Alignment marks made during
disassembly should align.
If vanes are installed with the
square edge out, they could cause
premature wear to components.
11. Install the rotor (16) and vanes (15) in the same
orientation as removed and noted. If vanes are
separate from the rotor, install the rotor first, then
install the vanes.
Make sure all vanes are installed with the squared
edge toward the center of the rotor.
Prepare backup
ring
13. To make the new Teflon backup ring (12) hold more
tightly to the top plate, wrap the backup ring,
without twisting, loosely around two fingers, and
then allow it to unwrap.
CAUTION
!
Pockets
Bar
Squared Edge
of Vanes
