Configuration
QL-30/60 User Gu
ide
101
Help Menu
Independent from the chosen tab some help functions can be selected
.

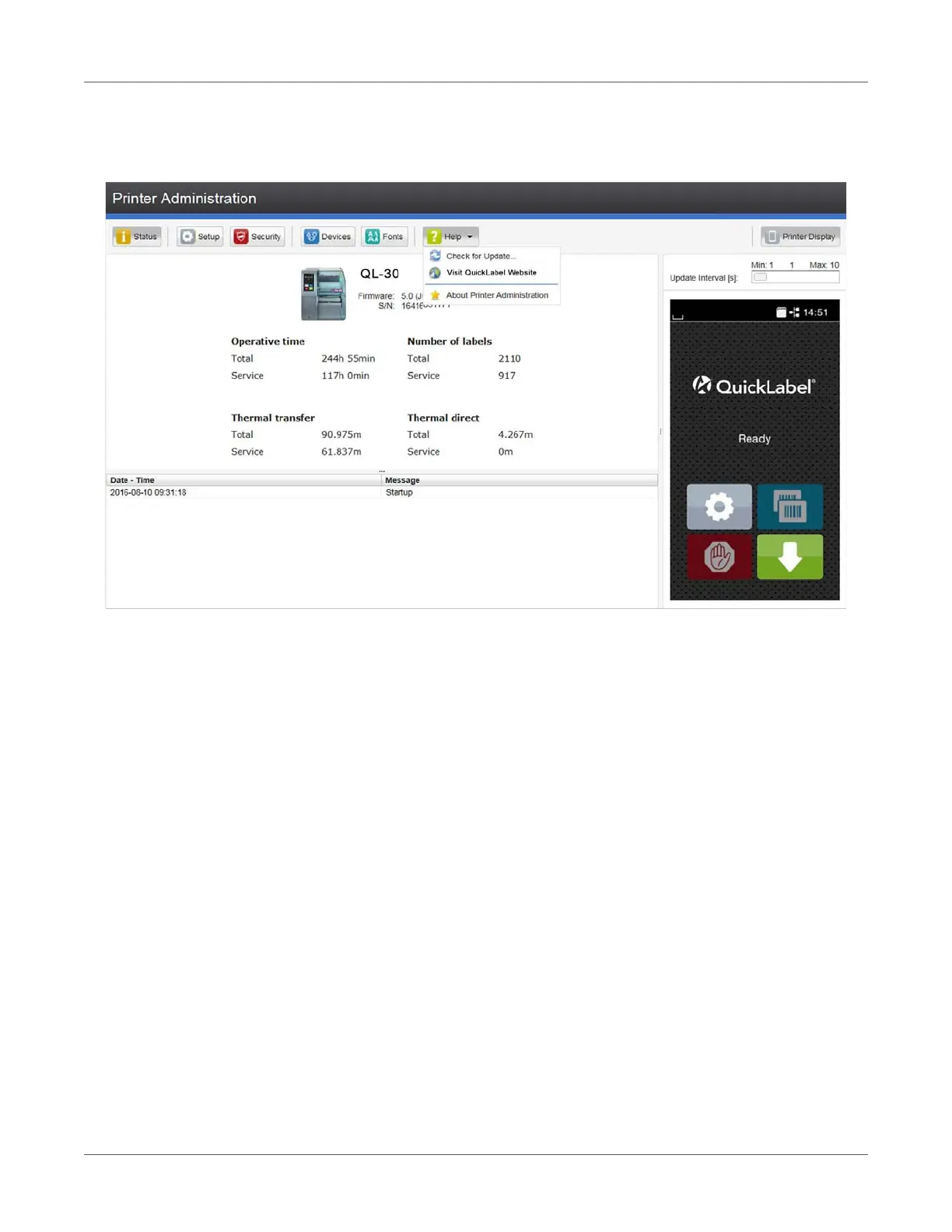

Figure 32:
“Help” menu on th
e printer web interface
In the Help menu, you can:
•
Check the firmware version and availability of updates.
•
Visit the QuickLabel website.
•
View information about the ve
rsion and the
latest alterations of the web interface.
100
102
Table of Contents
Default Chapter
5
Contact Information
5
Declaration of Conformity
7
Table of Contents
9
Part 1: Operation
15
Chapter 1: Introduction
17
Instructions
17
Intended Use
17
Introduction
17
Safety Instructions
17
Environment
18
Chapter 2: Installation
19
Print Unit
20
Connections
21
Device Overview
19
Overview
19
Installation
19
Installing the WLAN Stick
22
Unpacking and Setting-Up the Printer
22
Connecting the Device
23
Connecting to the Power Supply
23
Connecting to a Computer or Computer Network
23
Switching on the Device
23
Chapter 3: Touchscreen Display
25
Start Screen
25
Touchscreen Display
25
Structure of the Menu
29
Navigation in the Menu
32
Service Key
35
Chapter 4: Loading Media
37
Inserting the Media Strip into the Printhead
38
Setting the Label Sensor
39
Winding up the Media Strip in Rewind Mode
40
Removing the Wound Roll
41
Winding up the Liner in Peel-Off Mode
42
Loading Media
37
Loading Roll Media
37
Positioning the Media Roll on the Roll Retainer
37
Loading Fanfold Media
43
Setting the Head Locking System
44
Ql-30, Ql-60, Ql-30P, Ql-60P
44
Ql-30M, Ql-60M, Ql-30Mp, Ql-60Mp
45
Removing and Installing the Rewind Guide Plate, Dispense Plate or Tear-Off Plate
46
Removing a Plate
46
Installing a Plate
46
Loading Transfer Ribbon
47
Setting the Feed Path of the Transfer Ribbon
48
Chapter 5: Printing Operation
49
Printing Operation
49
Synchronization of the Media Feed
49
Tear-Off Mode
49
Internal Rewinding
50
Peel-Off Mode
50
Chapter 6: Cleaning
51
Cleaning
51
Cleaning Information
51
Cleaning the Print Roller
51
Cleaning the Printhead
51
Cleaning the Label Sensor
52
Chapter 7: Fault Correction
53
Error Display
53
Fault Correction
53
Error Messages and Fault Correction
54
Problem Solution
57
Chapter 8: Media
59
Media
59
Media Dimensions
59
Device Dimensions
61
Reflective Mark Dimensions
63
Cut-Out Mark Dimensions
64
Part 2: Configuration
67
Connecting Label Printer to Computer
69
Adjusting Windows Printer Setting
70
Chapter 9: Connecting Label Printer to Computer
70
Connecting Label Printer Via Ethernet Interface
70
Print Services Raw-IP and LPR/LPD in MS Windows
70
Connecting Label Printer Via USB Interface
71
Setting up a WLAN Connection
71
Connecting Label Printer Via RS-232 Interface
72
Setting up a Bluetooth Connection
73
Chapter 10: Info
75
Chapter 11 Security
77
Chapter 12: Configuration
79
Labels
82
Ribbon
83
Tearing-Off
83
Cutting
84
Peeling-Off
85
Labeling
85
Interfaces
87
Errors
91
Region
92
Time
93
Display
94
Interpreter
94
Zpl
95
Configuration
79
Configuration Via Control Panel
79
Printing
79
Configuration Via the Web Interface
95
Calling up the Web Interface
95
Status Tab
96
Setup Tab
97
Security Tab
98
Devices Tab
99
Fonts Tab
100
Help Menu
101
Chapter 13: Test Functions
103
Overview
103
Status Print
103
Test Functions
103
Font List
104
Device List
105
Test Grid
107
Wifi Status
108
ASCII Dump Mode
111
Chapter 14: Diagnostic Functions
111
Example
112
Diagnostic Functions
111
Label Profile
112
Event Log
114
Save Data Stream
115
Save Print Image
116
Save System Log
117
Chapter 15: Extras
119
Extras
119
Firmware Update
119
Save Settings
119
Load Settings
120
Reset Settings
120
Cleaning Interval
121
Reset Passwords
121
Legal Notices
122
Chapter 16: Help
123
Calibrate Label Sensor
125
Chapter 17: Service Functions
125
Reset Service Counter
125
Service Functions
125
Length Correction
126
Printer Model
126
Chapter 18: I/O Interface
127
I/O Interface
127
Pin Assignment
127
Circuit Diagram of Inputs and Outputs
130
Solution Examples
131
Peeling-Off on Demand with Present Sensor PS800 / PS900
131
Peeling-Off on Demand Without Present Sensor
133
Cutting on Demand with Cutter CU400
139
Pausing and Continuing a Print Job
141
Chapter 19: FTP Printer Management
143
FTP Login
143
FTP Printer Management
143
FTP Printing
143
FTP Access to Storage Devices
144
FTP Firmware Update
144
Chapter 20: Storage Devices
145
Directory Structure
145
Installation
145
Storage Devices
145
Suitable Storage Devices
145
Storage Device Functions
146
Load Label
146
Print File List
147
Copy Files
147
Format Storage
148
Default Storage
148
Writing
146
Example
146
Chapter 21: Remote Access Via VNC
149
Establishing a Connection
149
Preparing the Computer
149
Preparing the Printer
149
Remote Access Via VNC
149
Chapter 22: External Keyboard
151
Connecting External Keyboard
151
External Keyboard
151
Keyboard Assignment
151
Special Key Functions
152
General
152
In the Menu and for Entry of Variable Data
153
Chapter 23: Firmware Updater
155
Index
157
