Device Dimensions

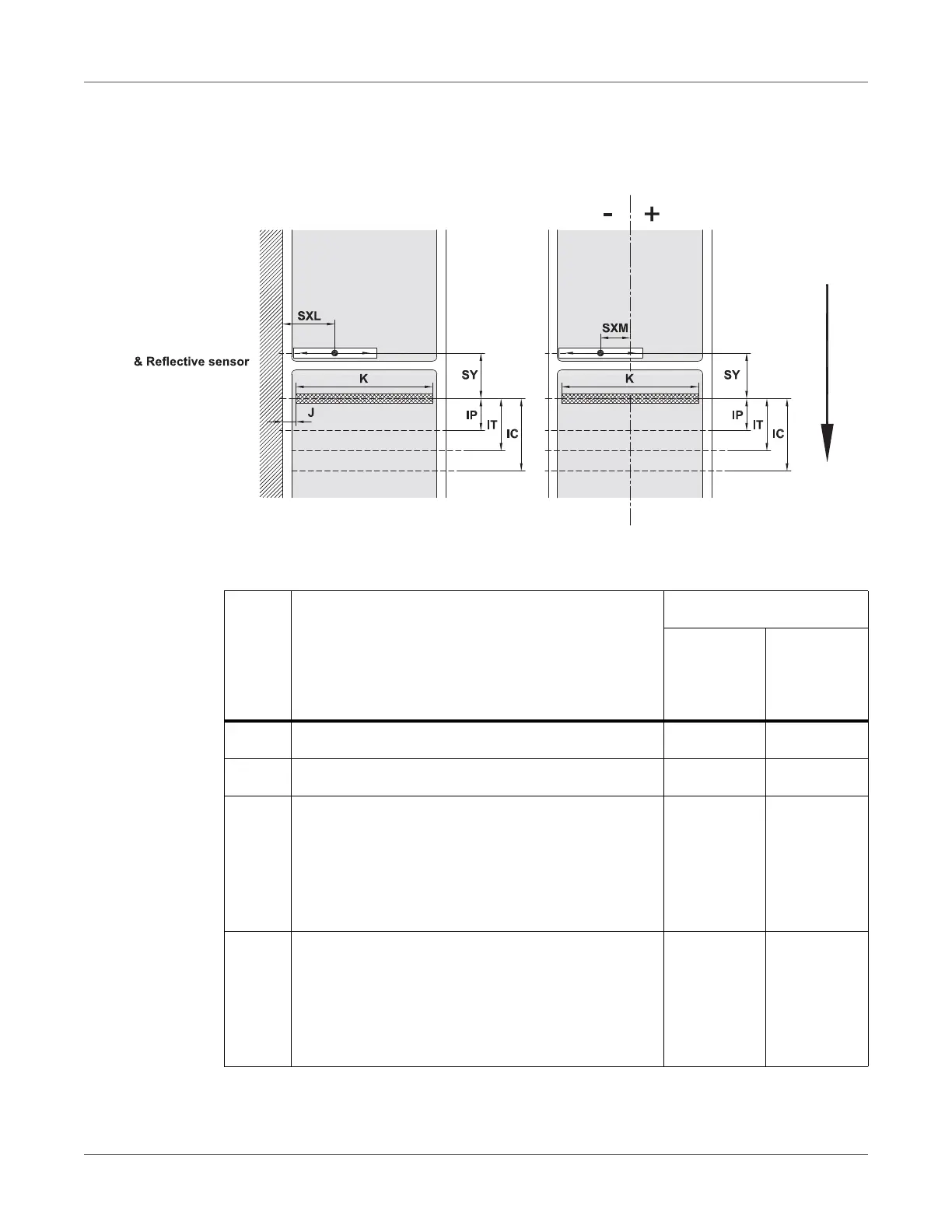

Figure 22: Device dimensions
QL-30, QL-60, QL-30P, QL-60P
QL-30M, QL-60M,
QL-30MP, QL-60MP
Gap sensor
Printhead
Peel-off edge
Tear-off edge
Cut edge
Feed direction
Table 14: Device dimensions
Dim. Designation
Dim. in mm
QL-30/60
QL-30P/60
P
QL-30M/60
M
QL-30MP/6
0MP
IP Distance printhead - peel-off edge 13.5
IT Distance printhead - tear-off edge 13.5
IC Distance printhead - cut edge
with cutter CU400
with perforation cutter PCU400
with stacker ST400
20.5
21.2
37.0
J Distance 1st heating point - material edge
203 dpi
300 dpi
600 dpi
-
2.0
2.0
-
-
-
