Loading Media
48 QL-30/60 User Guide
10 Turn lever (6) clockwise to lock the printhead.

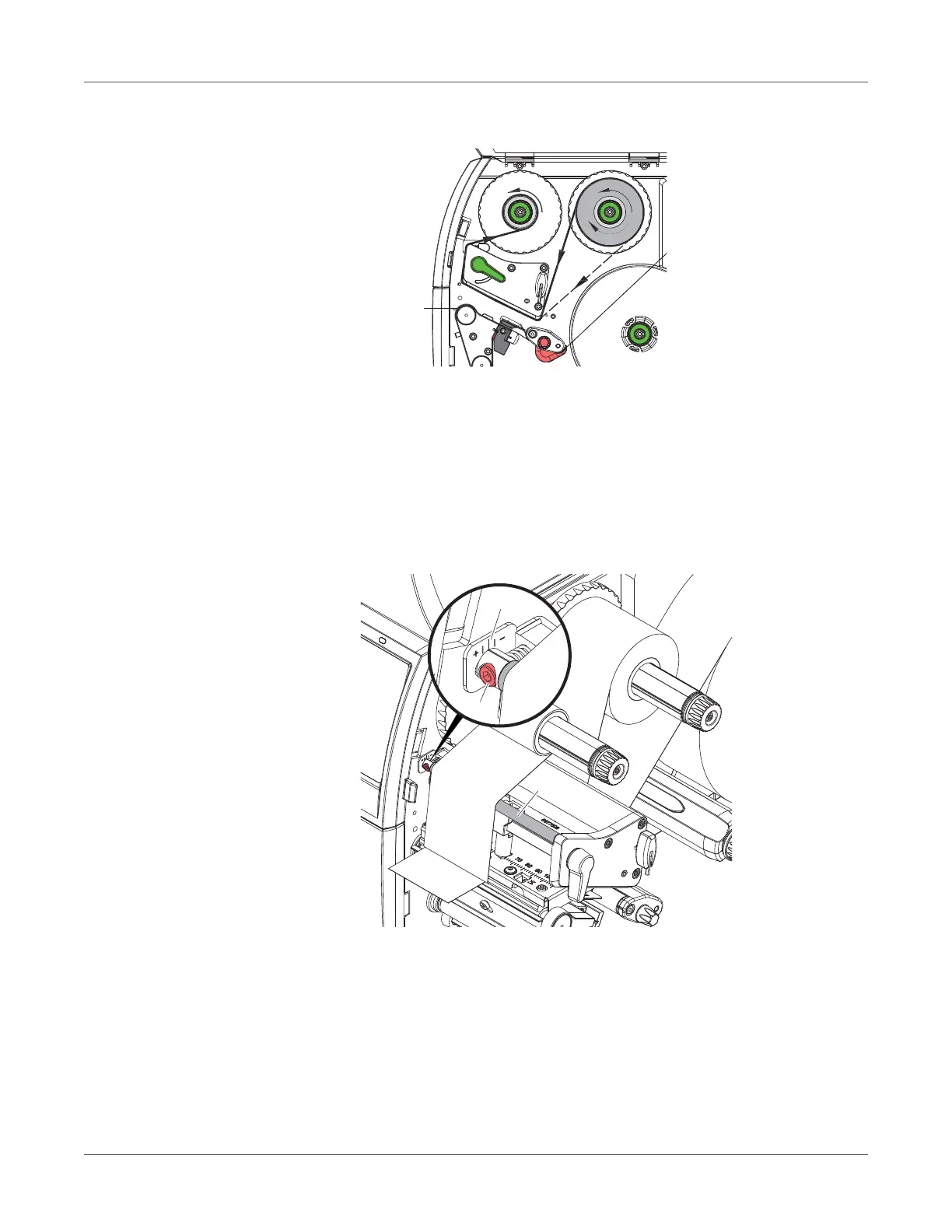

Figure 17: Transfer ribbon feed path
Setting the Feed Path of the Transfer Ribbon
Transfer ribbon wrinkling can lead to print image errors. The transfer ribbon deflection (3) can
be adjusted so as to prevent wrinkles.
Note: A maladjustment of the head locking system may also cause ribbon wrinkling. See
“Setting the Head Locking System” on page 44.
Figure 18: Setting the feed path of the transfer ribbon
Note: The adjustment is best carried out during printing.
• Read current setting on the scale (1) and record if necessary.
• Turn screw (2) with Allen key and observe the behavior of the ribbon.
In the + direction, the inner edge of the ribbon is tightened, and the outer edge is tightened
in the - direction.
