Diagnostic Functions
112 QL-30/60 User Guide
Example

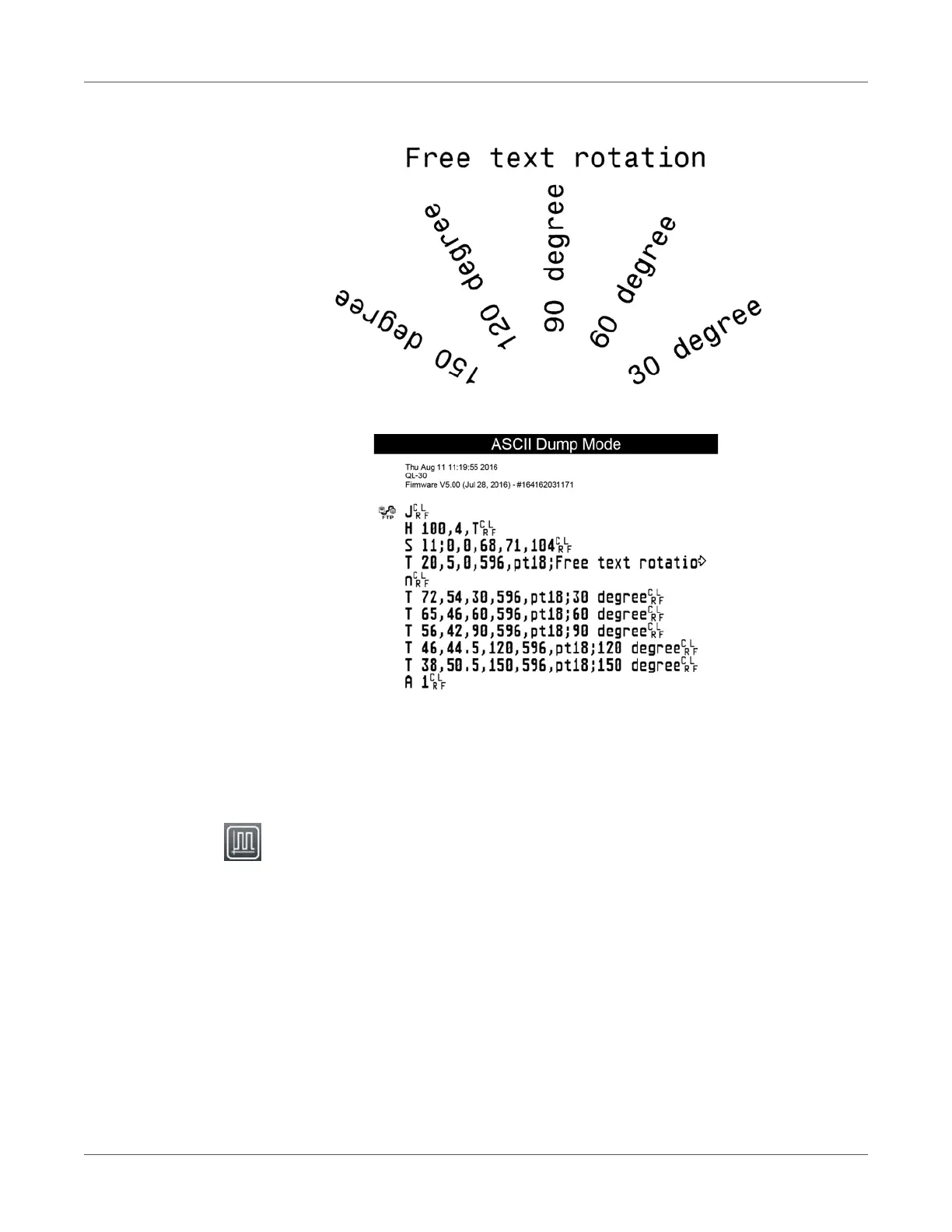

Figure 38: Example label printed normally
Figure 39: Example label printed in ASCII dump mode
The control characters (ASCII-Code 00...31) are presented in stylized design.
Label Profile
The Label profile function carries out a longer label advance. It saves the values measured by
the label sensor here and then prints them out in a diagram.
The printout is used to check label detection in conjunction with the optical properties of the
label medium. The printout occurs using the heat level and print speed specified in the Setup >
Printing menu.
Note: The printout occurs without taking the label gaps into consideration. This is why
continuous media is most suitable for this purpose.
1) Select the label sensor to be tested in the Setup > Labels menu. See “Labels” on page 82.
2) Load the label medium to be tested into the printer.
3) Start menu.
