Loading Media
46 QL-30/60 User Guide
Removing and Installing the Rewind Guide Plate, Dispense
Plate or Tear-off Plate
To convert the printer for use in another operating mode, a rewind guide plate (2a), a dispense
plate (2b) or a tear-off plate (2c) may need to be installed.

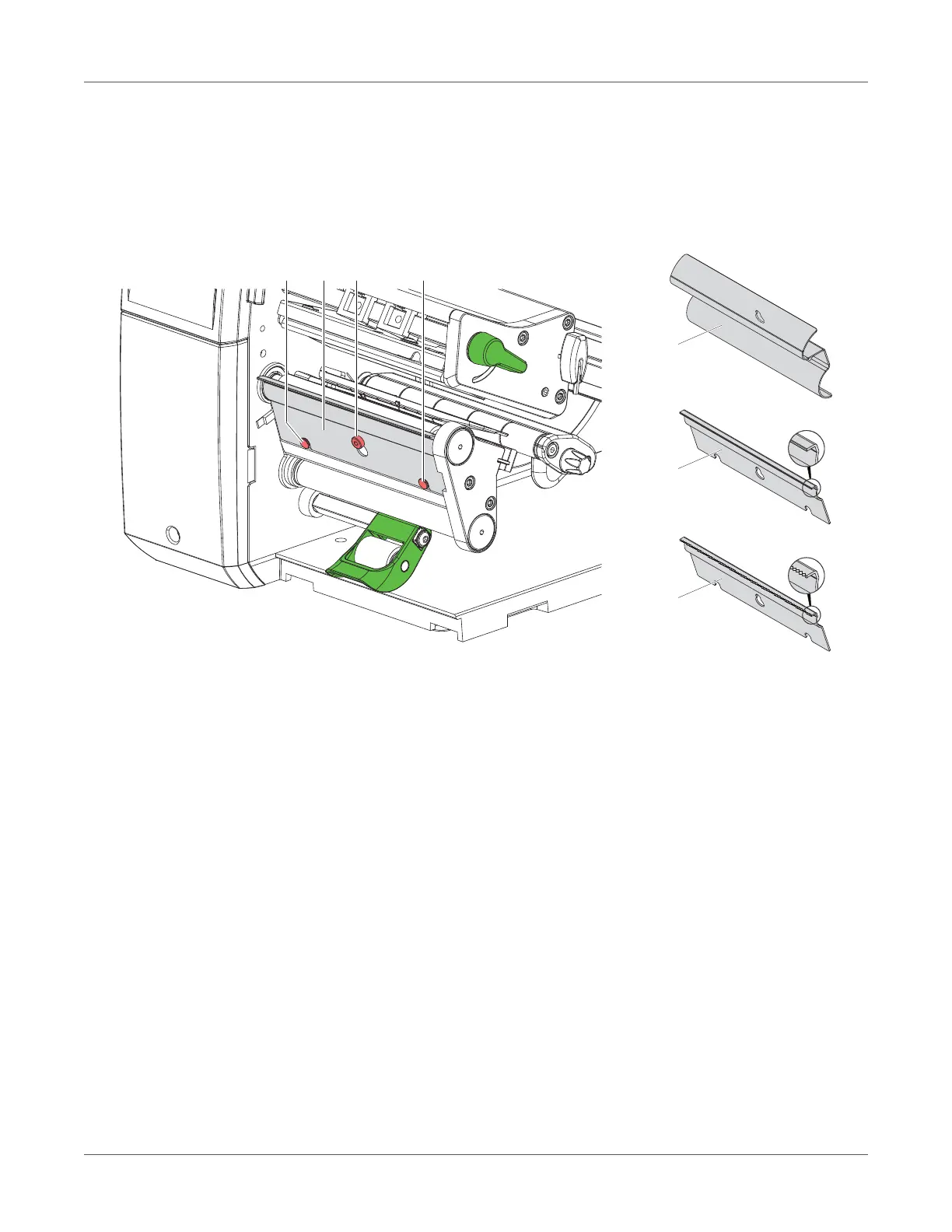

Figure 15: Removing and installing the rewind guide plate, dispense plate or tear-off plate
Removing a plate
• Loosen screw (3) several turns.
• Slide plate (2) upwards and remove it.
Installing a plate
• Place plate (2) onto the screw (3) and slide it downwards behind the pins (1).
• Tighten screw (3).
1 1
3
2
