QuickLabel QL-60 User Manual

I/O Interface
130 QL-30/60 User Guide

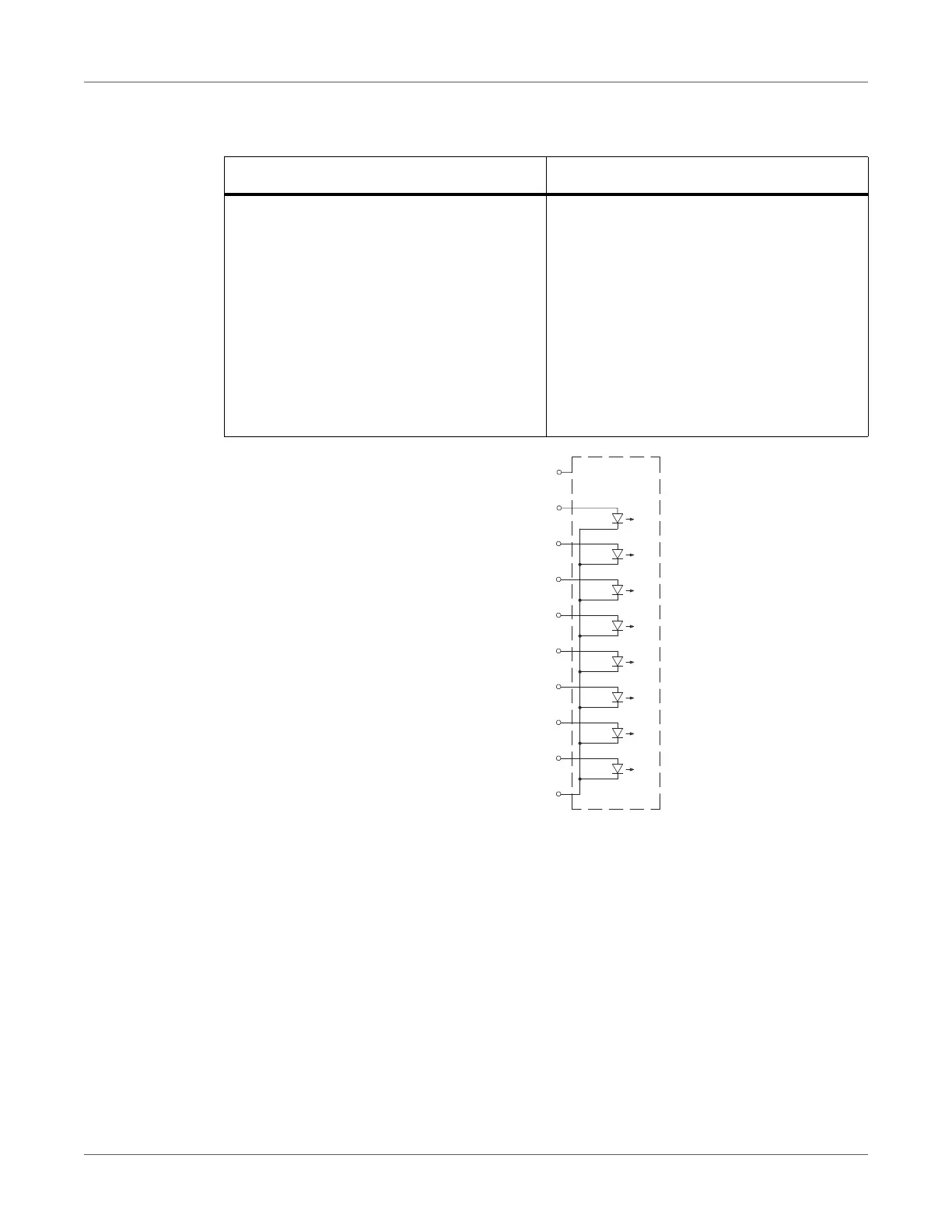

Circuit Diagram of Inputs and Outputs
Figure 47: Connecting inputs
Digital Inputs Digital Outputs
• Conform to IEC/EN 61131-2 (Type 3)
• Operating voltage: 24 V DC (9,6..35 V)
• Switching logic: PNP switching
• Low level “0”: < 7 V DC
• High level “1”: > 11 V DC
• Input current per channel: 1,5..2,5 mA (at
24 V DC)
• Reverse polarity protection: yes
• ESD protection: conform to IEC/EN
6100-4-4
• Conform to IEC/EN 61131-2
• Operating voltage: 24 V DC (11..35 V)
• Switching logic: PNP switching
• Output current per channel: 625 mA
(overload protection)
• Short-circuit protection: yes
• Reverse polarity protection: yes
• ESD protection: conform to IEC/EN
6100-4-4
Pin 20
P24_EXT
Pin 1
-
Pin 12
REPRINT
Pin 13
START
Pin 14
PAUSE
Pin 16
LBLREM
Pin 17
JOBDEL
Pin 18
RSTERR
Pin 23
STOP
Pin 25
GND_EXT
