Test Functions
104 QL-30/60 User Guide
The printout can be canceled with the following icon:

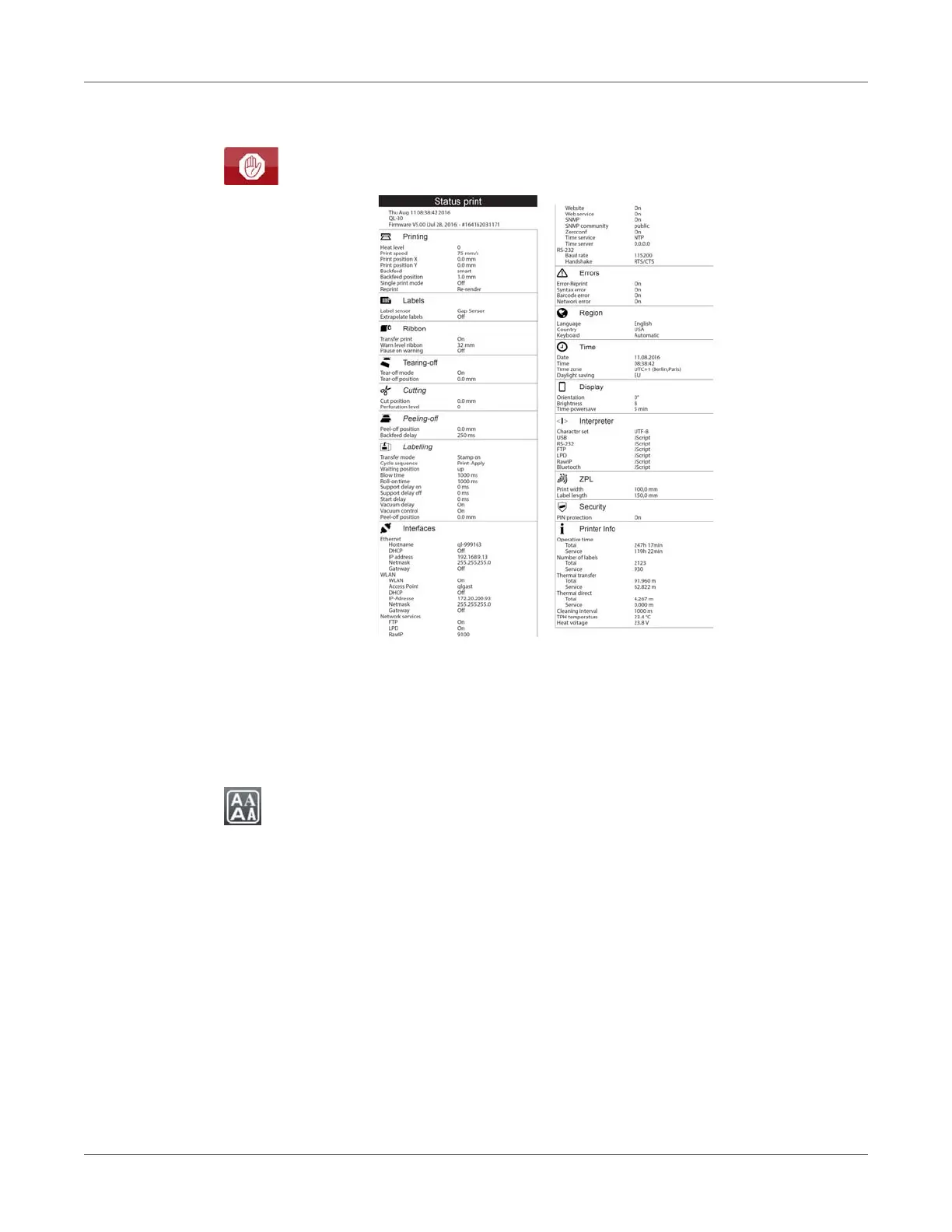

Figure 33: Status print
Parameters marked italic are only printed when the printer is equipped with the respective
optional assembly or when the service key is inserted
Font list
The Font list function prints the most important parameters of the fonts available in the printer
in tabular form. The table contains both the original fonts in the printer and other fonts loaded
into the printer. The printout occurs using the heat level and print speed specified in the Setup
> Printing menu.
Note: The printout occurs without taking the label gaps into consideration. This is why
continuous media is most suitable for this purpose.
1) Insert printable medium (labels, continuous media) which extends across the entire printing
width.
2) If the printout is to occur using thermal transfer printing, insert transfer ribbon with the
maximum width.
3) Start menu.
4) Select Test > Font list.
