Reflective Mark Dimensions

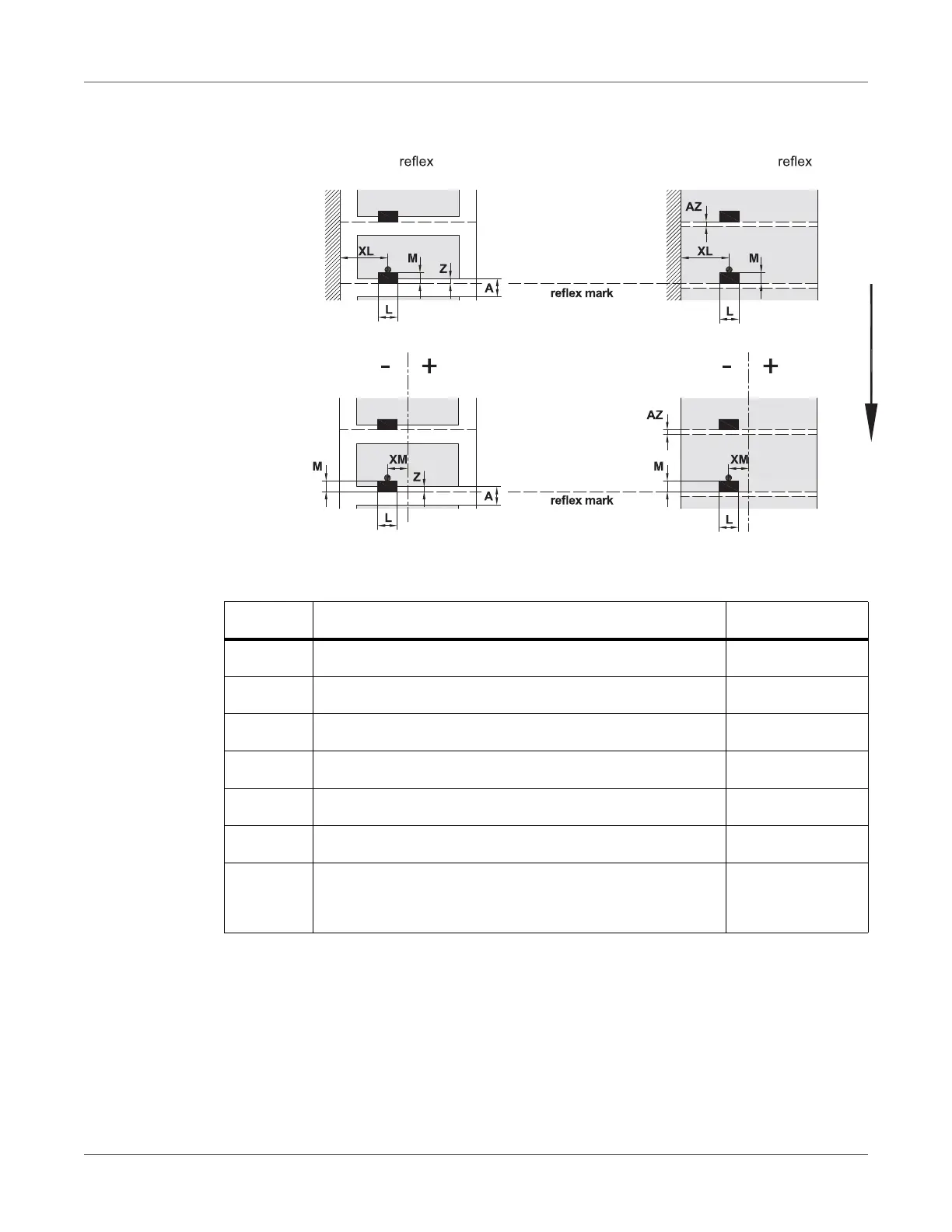

Figure 23: Reflective mark dimensions
• Reflective marks must be on the back side of the material (liner).
• Label sensor for reflective marks on the top side on request.
• Specification is valid for black marks.
• Recognition of colored marks may fail. Preliminary tests are needed.
Table 15: Reflective mark dimensions
Dim. Designation Dim. in mm
A Label distance > 2
AZ Distance between print zones > 2
L Width of reflective mark > 5
M Height of reflective mark 3 - 10
XL Distance mark - material edge 5 - 60
XM Distance mark - middle of paper track -55 - ±0
Z Distance virtual label front edge - actual label front edge
Adjust software settings
0 up to A
recomm. : 0
Feed direction
virtual label front edge
Labels with marks Endless material with marks
QL-30/30P
QL-60/60P
QL-30M/30MP
QL-60M/60MP
