Loading Media
40 QL-30/60 User Guide
Winding up the Media Strip in Rewind Mode

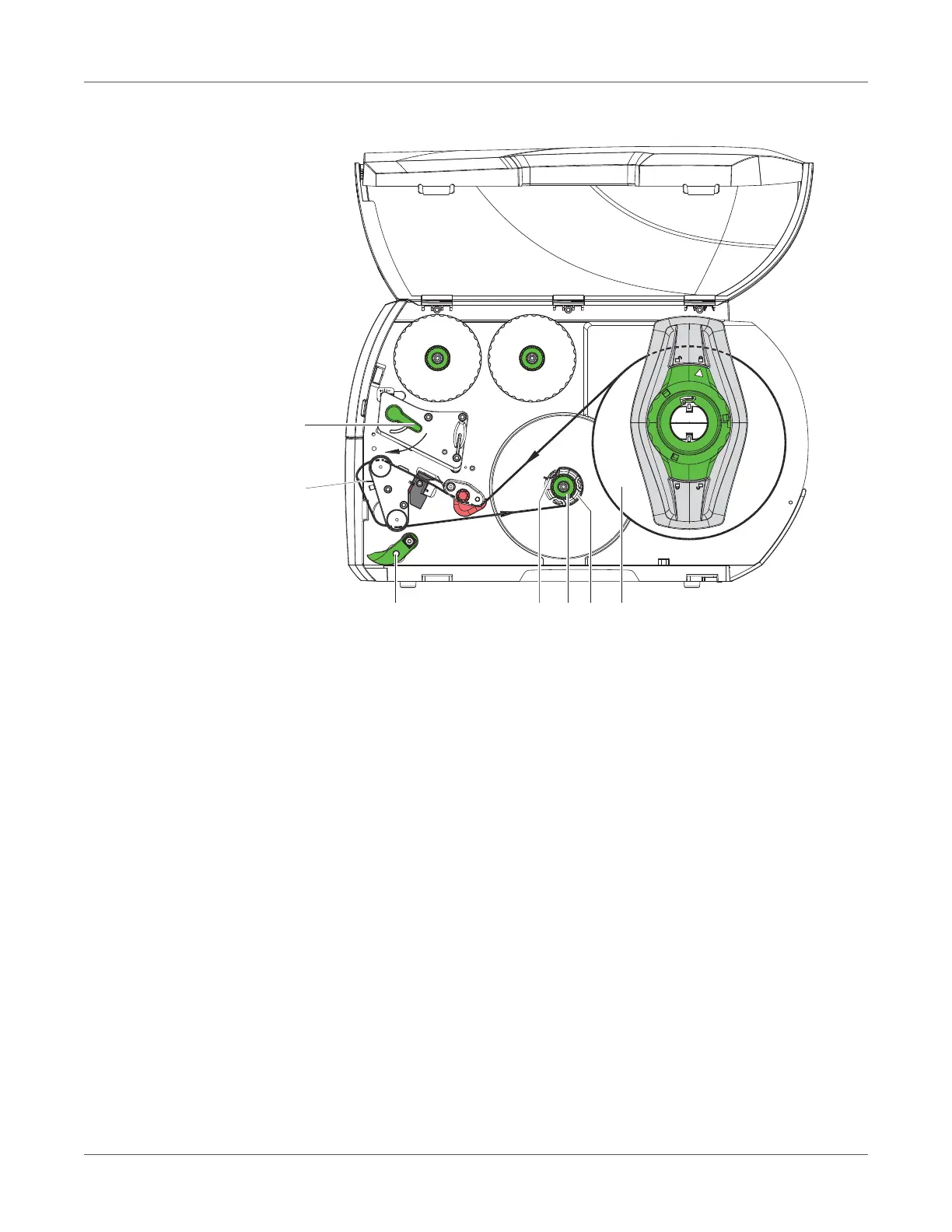

Figure 9: Guiding the media strip in rewind mode
In rewind mode, the labels are wound up internally after printing for later use.
1 Install rewind guide plate. See “Removing and Installing the Rewind Guide Plate, Dispense
Plate or Tear-off Plate” on page 46.
2 Lift the pinch roller (3) off the rewind assist roller.
3 Guide label strip around the rewind guide plate (2) to the internal rewinder (6).
4 Hold rewinder (6) firmly and turn knob (5) clockwise until it stops.
5 Push label strip under a bracket (4) of the rewinder and turn knob (5) counterclockwise until
it stops. The rewinder is fully spread, thus gripping the label strip firmly.
6 Turn rewinder (6) counterclockwise to tighten the label strip.
7 Turn lever (1) clockwise to lock the printhead.
The label roll is loaded for use in rewind mode.
