Loading Media
38 QL-30/60 User Guide
4 Load label roll (3) on the roll retainer in such a way that the labels can be inserted into the
printhead in the right position. The printing side of the labels must be visible from above.
• QL-30, QL-60, QL-30P, QL-60P - Re-mount the margin stop (1) onto the roll retainer
(4). Push the margin stop (1) to the roll until the roll touches the chassis and the roll
retainer and a clear resistance is encountered.
• QL-30M, QL-60M, QL-30MP, QL-60MP - Re-mount the margin stop (1) onto the roll
retainer (4). Push the margin stop (1) to the roll until the roll touches both roll retainers
and a clear resistance is encountered.
5 Turn ring (2) clockwise, so that the arrow (10) points to the lock symbol, and thus fix the
margin stop (1) on the roll retainer (4).
6 Supply longer label strips:
• For Peel-Off or Rewind mode: approx. 60 cm
• For Tear-Off mode: approx. 40 cm
Inserting the Media Strip into the Printhead

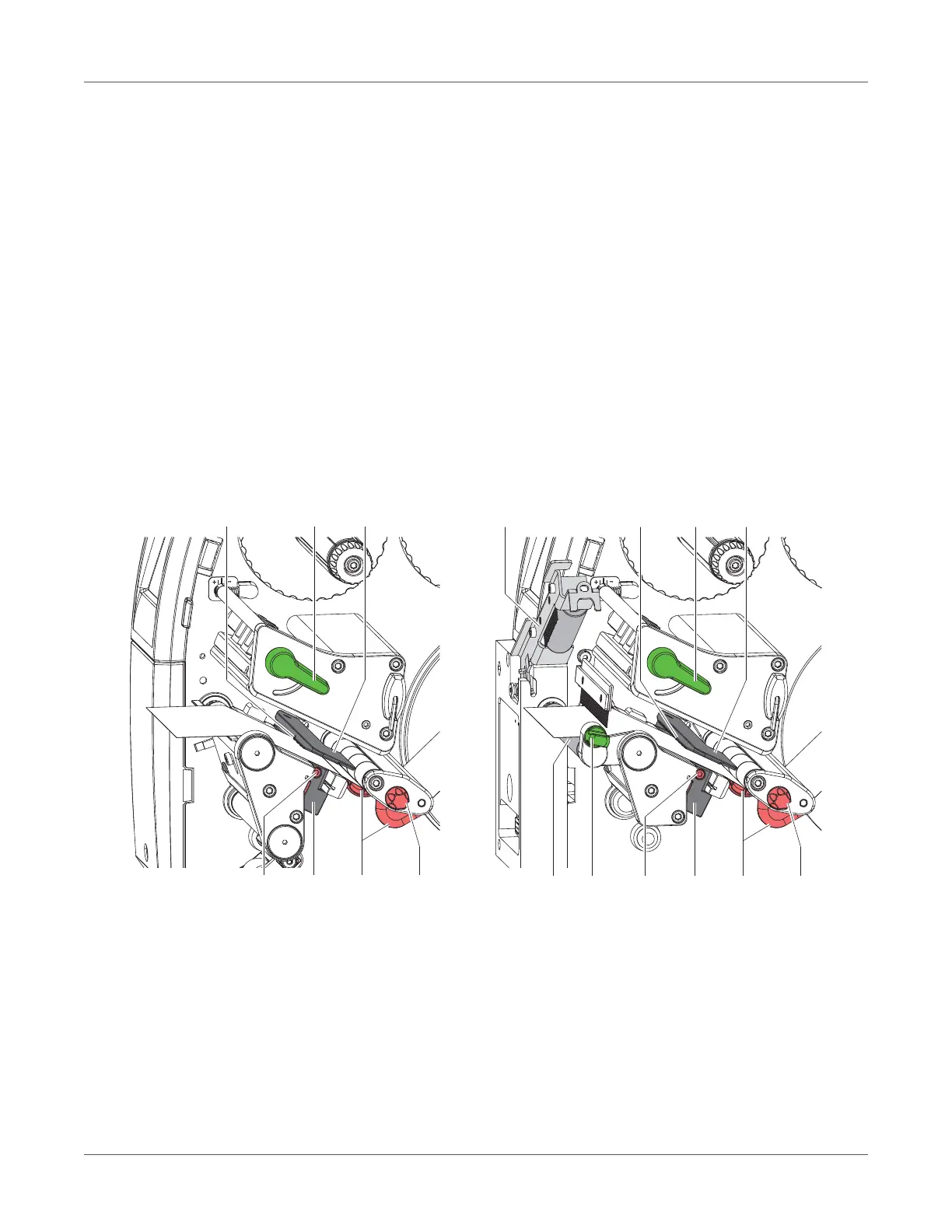

Figure 8: Inserting the media strip into the printhead
1 Turn lever (2) counterclockwise to lift the printhead.
2 Adjust the guide(s) (6) with the knob (7) in such a way that:
• QL-30, QL-60, QL-30P, QL-60P - the media can pass between the guide and the
chassis.
• QL-30M, QL-60M, QL-30MP, QL-60MP - the media can pass between the two guides.
3 Guide label strip over the internal rewinder to the print unit.
4
1
5
3
2
76
4
1
5
3
2
76
9
10
8
