I/O Interface
QL-30/60 User Guide 131

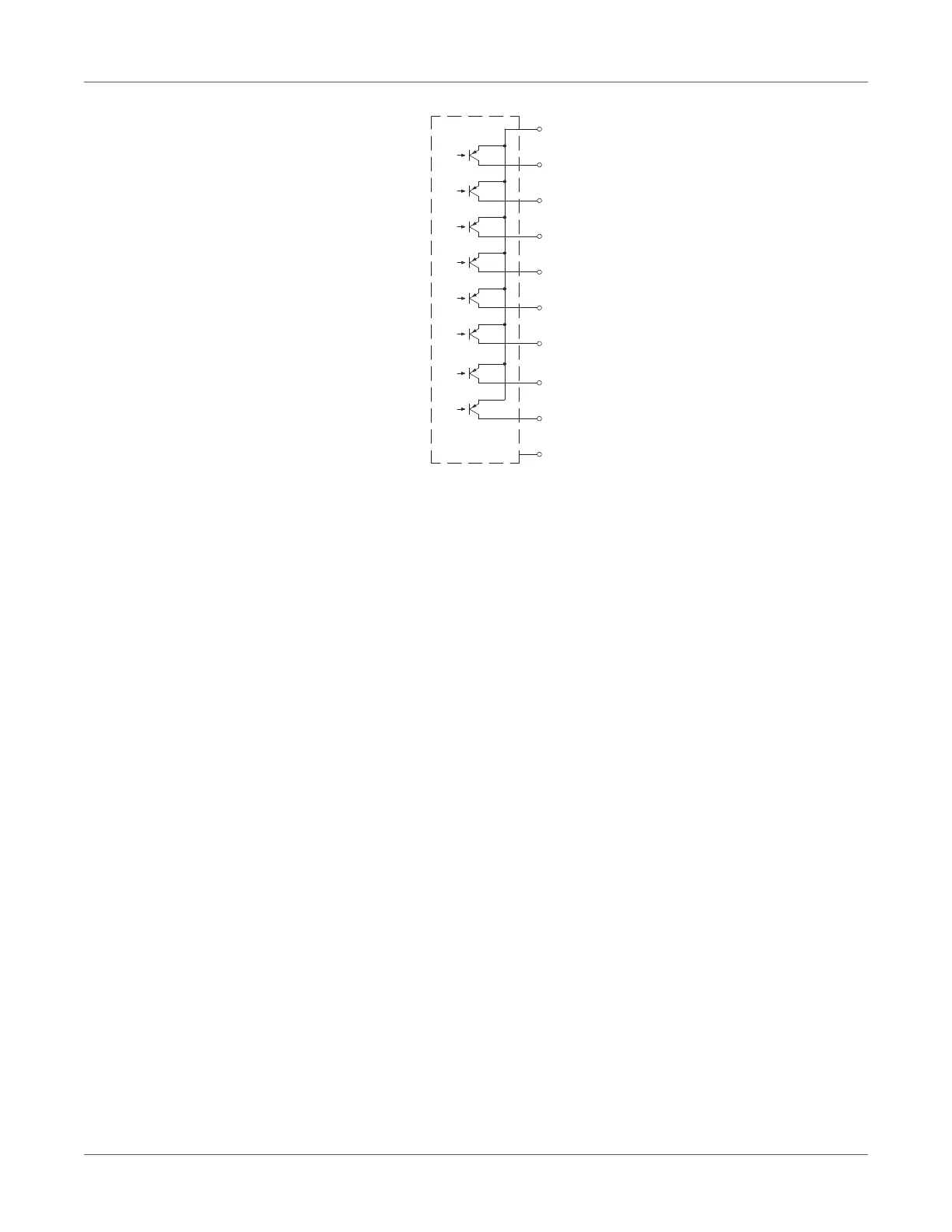

Figure 48: Connecting outputs
Solution Examples
Peeling-off on Demand with Present Sensor PS800 / PS900
In the standard peel-off mode a label will be printed immediately after the previous label has
been taken from the peel position.
Using the I/O interface the print of the next label can be triggered by an external signal.
Requirements:
• Operation with Present Sensor PS800 or PS900
• External circuit as shown in Figure 49 / Figure 50
• Setting Printing > Print on Demand = “On”.
Operation:
1) Send a print job.
2) Activate START.
The first label will be printed and transported to the peel position.
3) Remove the label.
Pin 20 P24_EXT
Pin 3 -
Pin 4 FEEDON
Pin 5 -
Pin 9 JOBRDY
Pin 10 READY
Pin 15 RIBW
To Next Page
