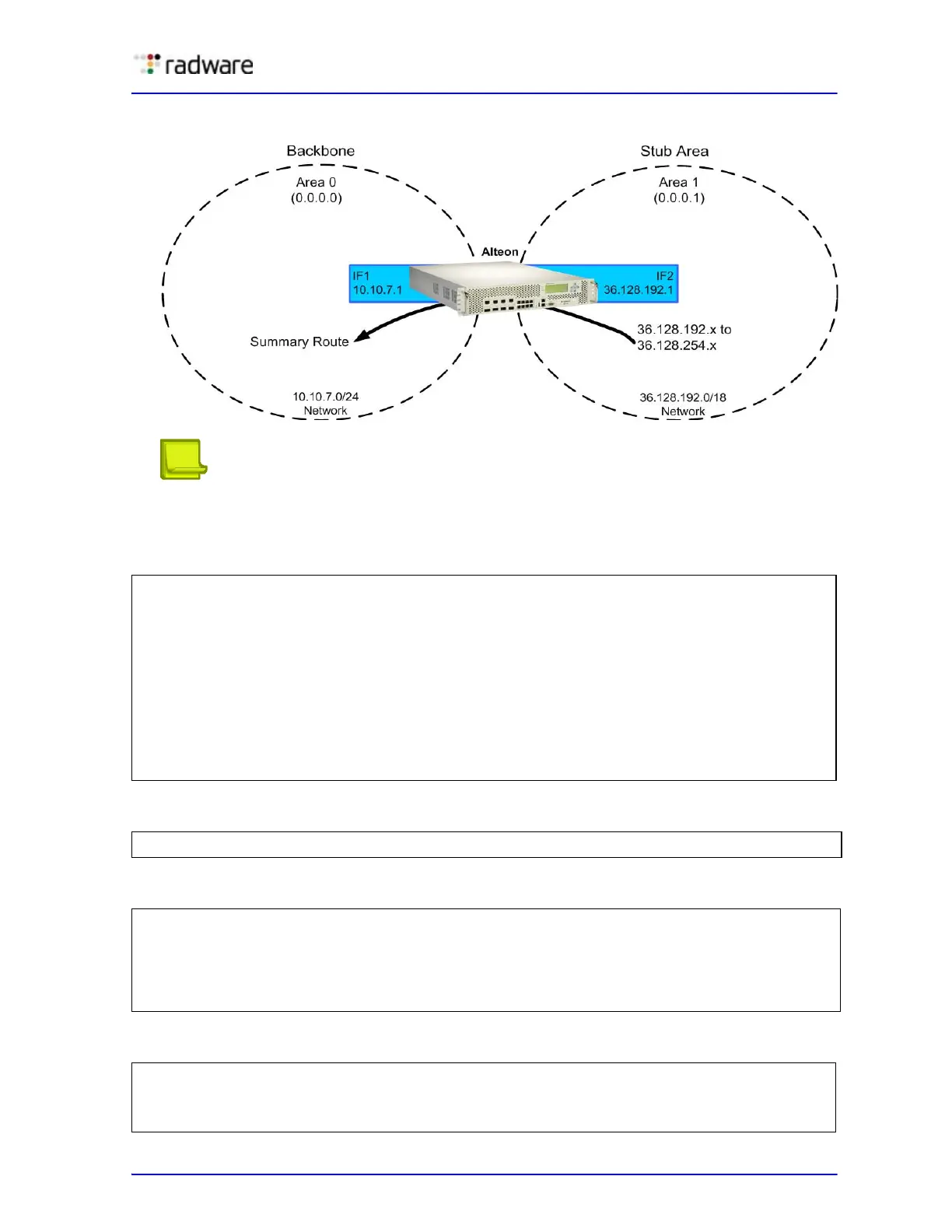

Figure 23: Summarizing Routes Example
Note: You can specify a range of addresses to prevent advertising by using the hide option. In
this example, routes in the range 36.128.200.0 through 36.128.200.255 are kept private.
1. Configure IP interfaces for each network which is attached to OSPF areas.
2. Enable OSPF.
3. Define the backbone.
4. Define the stub area.
>> OSPF Virtual Link 1 # aindex 1
(Select menu for IP interface 1)
>> IP Interface 1 # addr 10.10.7.1
(Set IP address on backbone network)
>> IP Interface 1 # mask 255.255.255.0
(Set IP mask on backbone network)
>> IP Interface 1 # ena
(Enable IP interface 1)
>> IP Interface 1 # /cfg/l3/if 2
(Select menu for IP interface 2)
>> IP Interface 2 # addr 36.128.192.1
(Set IP address on stub area network)
>> IP Interface 2 # mask 255.255.192.0
(Set IP mask on stub area network)
>> IP Interface 2 # ena
(Enable IP interface 2)
>> IP Interface 2 # /cfg/l3/ospf/on
(Enable OSPF on Alteon)
>> Open Shortest Path First # aindex 0
(Select menu for area index 0)
>> OSPF Area (index) 0 # areaid 0.0.0.0
(Set the ID for backbone area 0)
>> OSPF Area (index) 0 # type transit
(Define backbone as transit type)
>> OSPF Area (index) 0 # enable
(Enable the area)
>> OSPF Area (index) 0 # /cfg/l3/ospf/aindex
1
(Select menu for area index 1)
>> OSPF Area (index) 1 # areaid 0.0.0.1
(Set the area ID for OSPF area 1)
