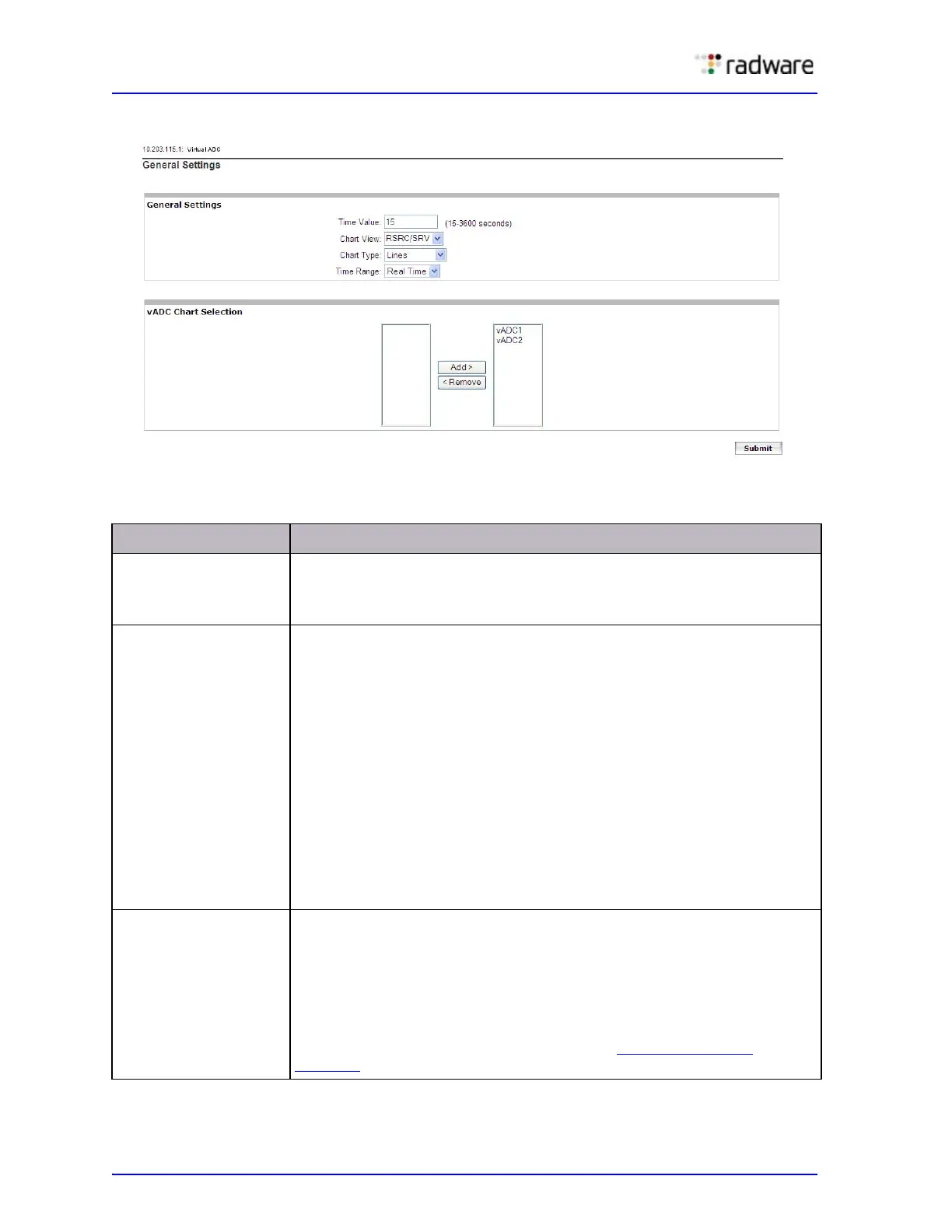

Figure 66: Dashboard Settings Example
2. Change the following settings as required:
Parameter Description
Time Value This sets the display increments of the real-time chart.
Range: 15—3600 seconds
Default: 15 seconds
Chart View The chart view affects the way information is selected.
Values:
• Thr/Util—Each chart is independent and selects data for display based
on its specific category.
For example, the Top 10 Chart displays the top 10 vADCs in the
resource utilization category, and the top 10 vADCs in the throughput
category.
• Throughput—Services is the selection key. The Top 10 chart displays
the top 10 vADCs that consume the most throughput relative to their
throughput limit.
• Util—Resource utilization is the selection key. The Top 10 chart
displays the top 10 vADCs that consume the most resources relative
to their allocated resource capacity.
Default: RSRC/SRV
Chart Type Options:
• Bars—Displays an aggregate view of all the collected data based on
the selected time period.
• Lines—Displays consumption across time based on all the collected
data.
Default: Lines
For more information on the chart types, see Dashboard Charts,
page 413.
