Renesas H8 Series Hardware Manual

Section 9 Timers
Rev. 7.00 Mar 10, 2005 page 293 of 652
REJ09B0042-0700
TCG Clear Timing
TCG can be cleared by the rising edge, falling edge, or both edges of the input capture input
signal.

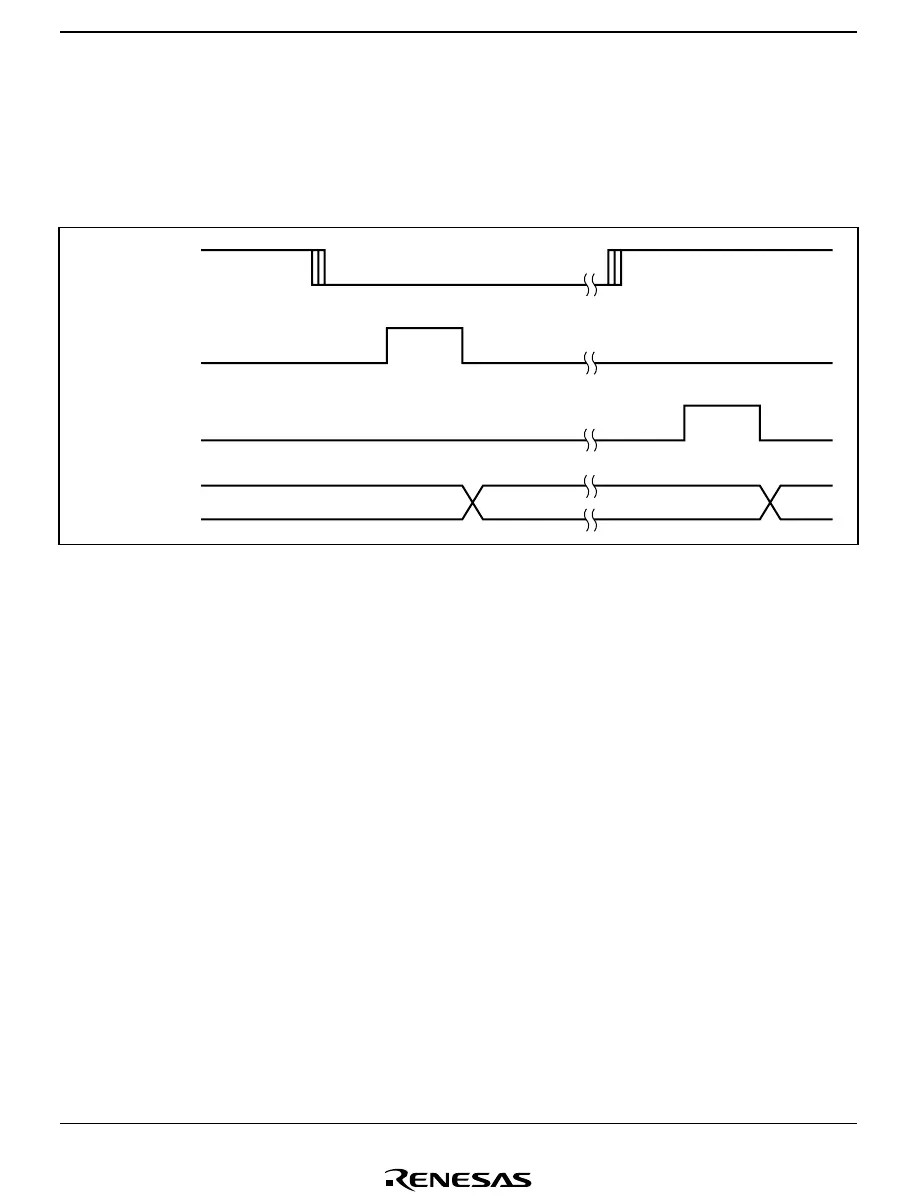

Figure 9.14 shows the timing for clearing by both edges.
Input capture
input signal
Input capture
signal F
Input capture
signal R
TCG N NH'00 H'00
Figure 9.14 TCG Clear Timing
