Renesas H8 Series Hardware Manual

Section 11 10-Bit PWM
Rev. 7.00 Mar 10, 2005 page 391 of 652
REJ09B0042-0700
PWDRLm
PWDRUm
PWCRm
PWM waveform
generator
φ/2
φ/4
φ/8
φ
PWMm
(IECPWM)
IECPWM
Internal data bus
[Legend]
PWCRm:
PWDRLm:
PWDRUm:
PWMm:
IECPWM:
PWM control register
PWM data register L
PWM data register U
PWM output pin
Event counter PWM (PWM incorporating AEC)
m = 1 or 2

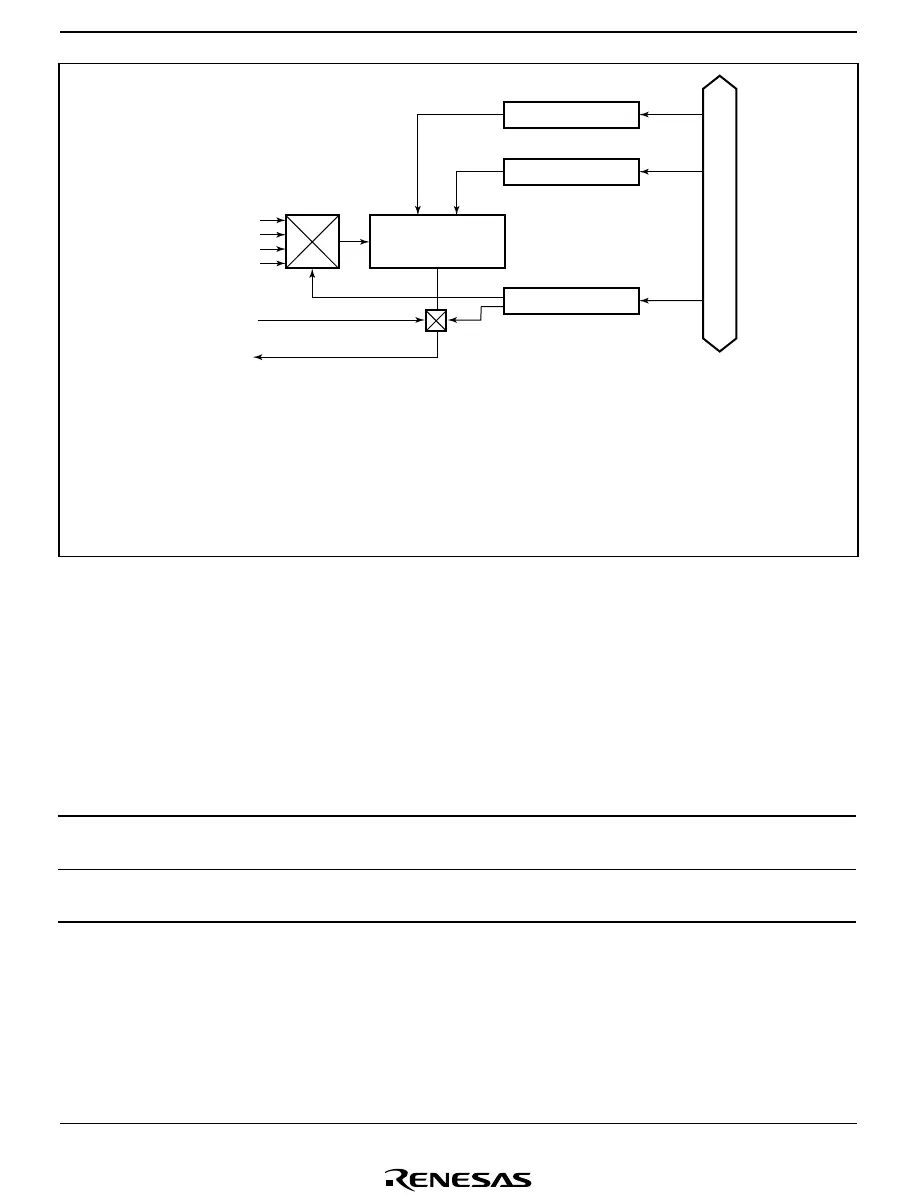

Figure 11.1(2) Figure 11.1(1) Block Diagram of the 10-bit PWM
(H8/38124 Group: 1-Channel Configuration)
11.1.3 Pin Configuration
Table 11.1 shows the output pin assigned to the 10-bit PWM.
Table 11.1 Pin Configuration
Name Abbr. I/O Function
PWM1 output pin PWM1 Output Pulse-division PWM waveform output (PWM1)/
event counter PWM output (IECPWM)
*
PWM2 output pin PWM2 Output Pulse-division PWM waveform output (PWM2)/
event counter PWM output (IECPWM)
*
Note: * Implemented on H8/38124 Group only.
