Appendix G Specifications of Chip Form
Rev. 7.00 Mar 10, 2005 page 647 of 652
REJ09B0042-0700
Appendix G Specifications of Chip Form
The specifications of the chip form of the HCD64338024, HCD64338023, HCD64338022,
HCD64338021, and HCD64338020 are shown in figure G.1. The specifications of the chip form
of the HCD64F38024 and HCD64F38024R are shown in figure G.2. The specifications of the chip
form of the HCD64338024S, HCD64338023S, HCD64338022S, HCD64338021S, and
HCD64338020S are shown in figure G.3.
X-direction: 3.99 ± 0.05
Y-direction: 3.99 ± 0.05
Maximum plain X-direction: 3.99 ± 0.25
Y-direction: 3.99 ± 0.25
0.28 ± 0.02
Max 0.03
Unit: mm

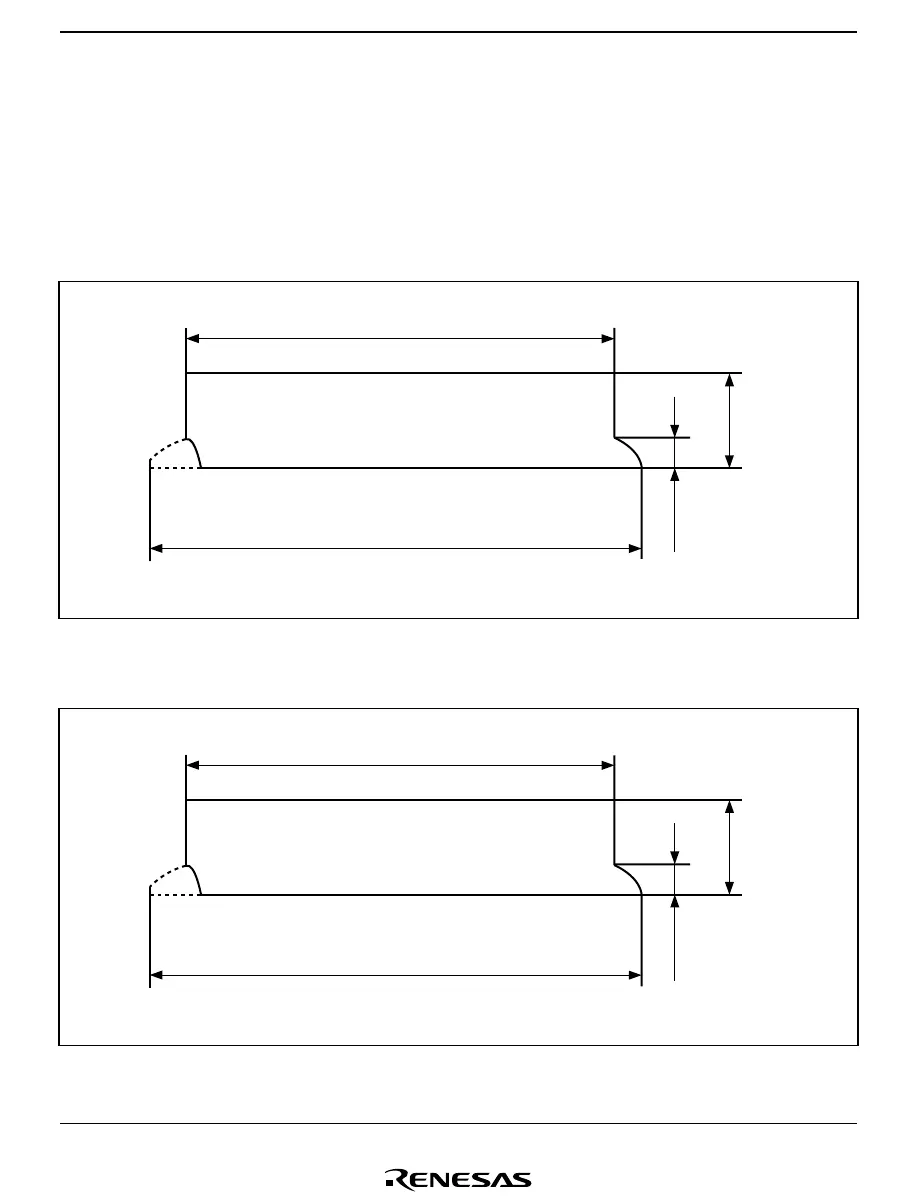

Figure G.1 Chip Sectional Figure of the HCD64338024, HCD64338023, HCD64338022,
HCD64338021, and HCD64338020
X-direction: 3.84 ± 0.05
Y-direction: 4.24 ± 0.05
Maximum plain X-direction: 3.84 ± 0.25
Y-direction: 4.24 ± 0.25
0.28 ± 0.02
Max 0.03
Unit: mm
Figure G.2 Chip Sectional Figure of the HCD64F38024 and HCD64F38024R
