Renesas H8 Series Hardware Manual

Section 16 Electrical Characteristics
Rev. 7.00 Mar 10, 2005 page 533 of 652
REJ09B0042-0700
OSC1
L S C S
C O
R S
OSC2
Crystal Resonator Parameters
(Manufacturer's Publicly Released Values)
Frequency
(MHz)
R S (max)
C
O (max)
Manufacturer
Nihon Dempa Kogyo Co., Ltd.
Ceramic Resonator Parameters (1)
(Manufacturer's Publicly Released Values)
Frequency
(MHz)
R S (max)
C
O (max)
Manufacturer
Murata Manufacturing Co., Ltd.
Manufacturer
Murata Manufacturing Co., Ltd.
4
100 Ω
16 pF
2
18.3 Ω
36.94 pF
Ceramic Resonator Parameters (2)
(Manufacturer's Publicly Released Values)
Frequency
(MHz)
R S (max)
C
O (max)
10
4.6 Ω
32.31 pF

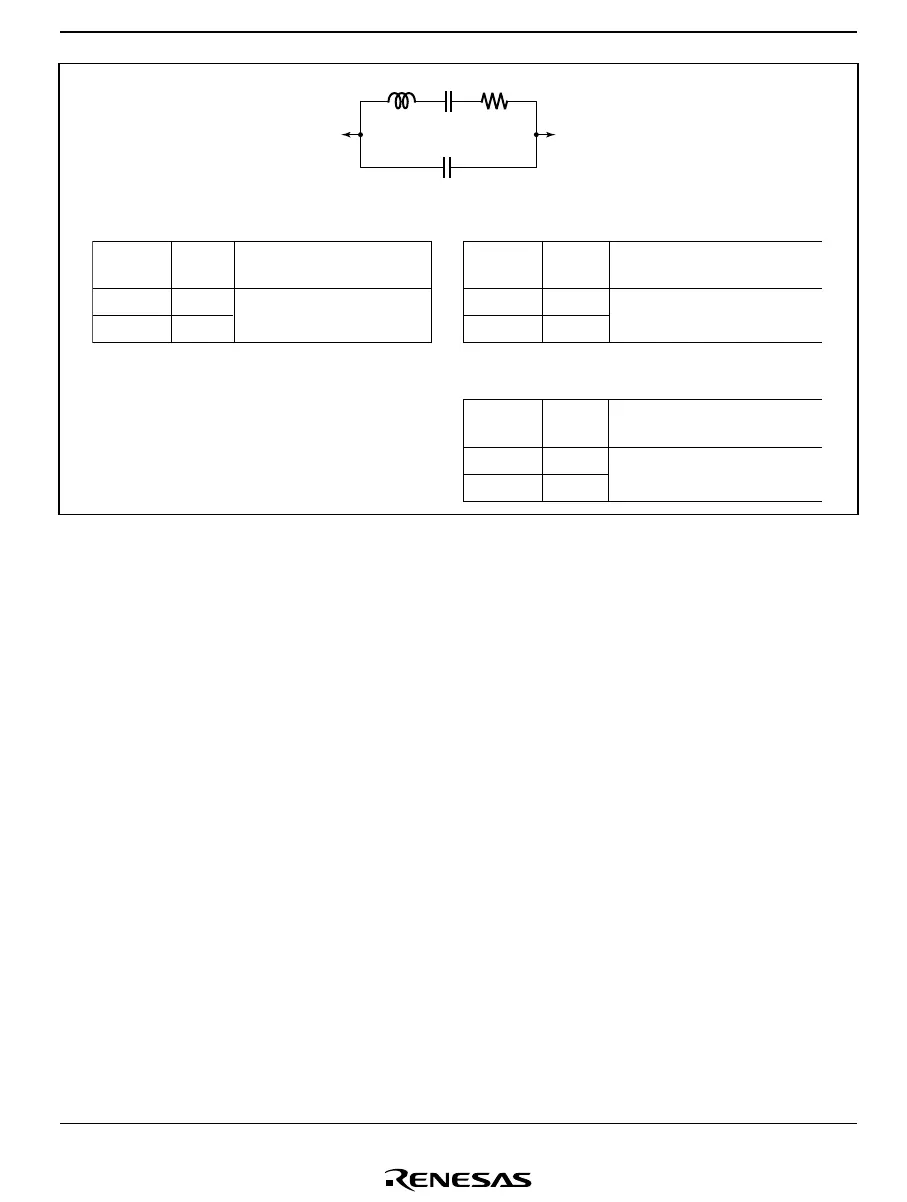

Figure 16.9 Resonator Equivalent Circuit (2)
16.12 Usage Note
The ZTAT, F-ZTAT, and mask ROM versions satisfy the electrical characteristics shown in this
manual, but actual electrical characteristic values, operating margins, noise margins, and other
properties may vary due to differences in manufacturing process, on-chip ROM, layout patterns,
and so on.
When system evaluation testing is carried out using the ZTAT or F-ZTAT version, the same
evaluation testing should also be conducted for the mask ROM version when changing over to that
version.
