Renesas H8 Series Hardware Manual

Section 16 Electrical Characteristics
Rev. 7.00 Mar 10, 2005 page 532 of 652
REJ09B0042-0700

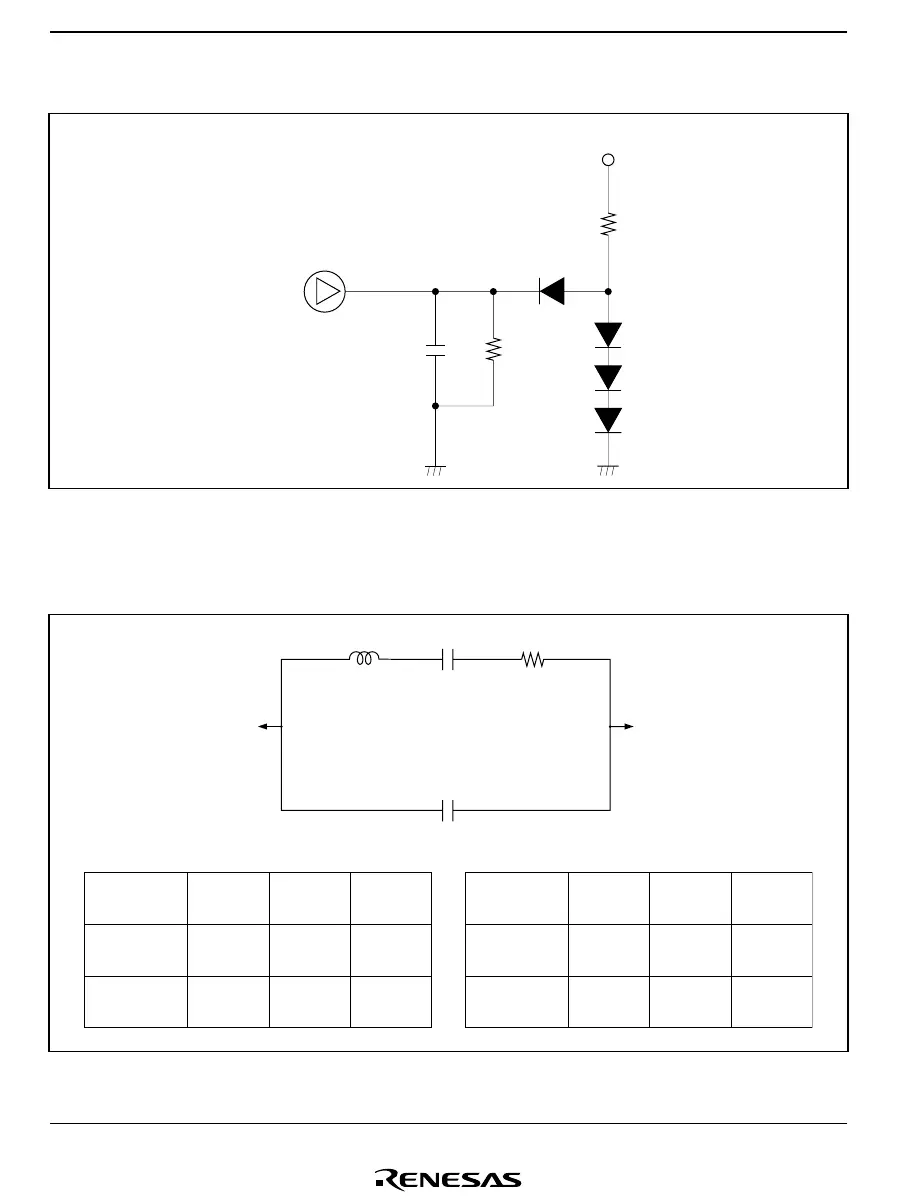

16.10 Output Load Circuit
V
CC
2.4 kΩ
12 kΩ30 pF
Output pin
Figure 16.7 Output Load Condition
16.11 Resonator Equivalent Circuit
CS
CO
Frequency
(MHz)
R
S (max)
CO (max)
4
100 Ω
16 pF
4.193
100 Ω
16 pF
10
30 Ω
16 pF
Crystal Resonator Parameters
R
S
OSC2OSC1
LS
Frequency
(MHz)
R
S (max)
CO (max)
2
18.3 Ω
36.94 pF
4
6.8 Ω
36.72 pF
10
4.6 Ω
32.31 pF
Ceramic Resonator Parameters
Figure 16.8 Resonator Equivalent Circuit (1)
