Renesas H8 Series Hardware Manual

Appendix F Package Dimensions
Rev. 7.00 Mar 10, 2005 page 643 of 652
REJ09B0042-0700
Appendix F Package Dimensions
Dimensional drawings of the H8/38024 Group, H8/38024S Group, and H8/38124 Group packages
FP-80A, FP-80B, and TFP-80C are shown in figures F.1, F.2, and F.3 below.
Package Code
JEDEC
JEITA
Mass
(reference value)
FP-80A

Conforms
1.2 g
*
Dimension including the plating thickness
Base material dimension
60
0° − 8°
0.10
0.12
M
17.2 ± 0.3
41
61
80
1
20
40
21
17.2 ± 0.3
*
0.32 ± 0.08
0.65
3.05 Max
1.6
0.8 ± 0.3
14
2.70
*
0.17 ± 0.05
0.10
+0.15 −0.10
0.83
0.30 ± 0.06
0.15 ± 0.04
Unit: mm

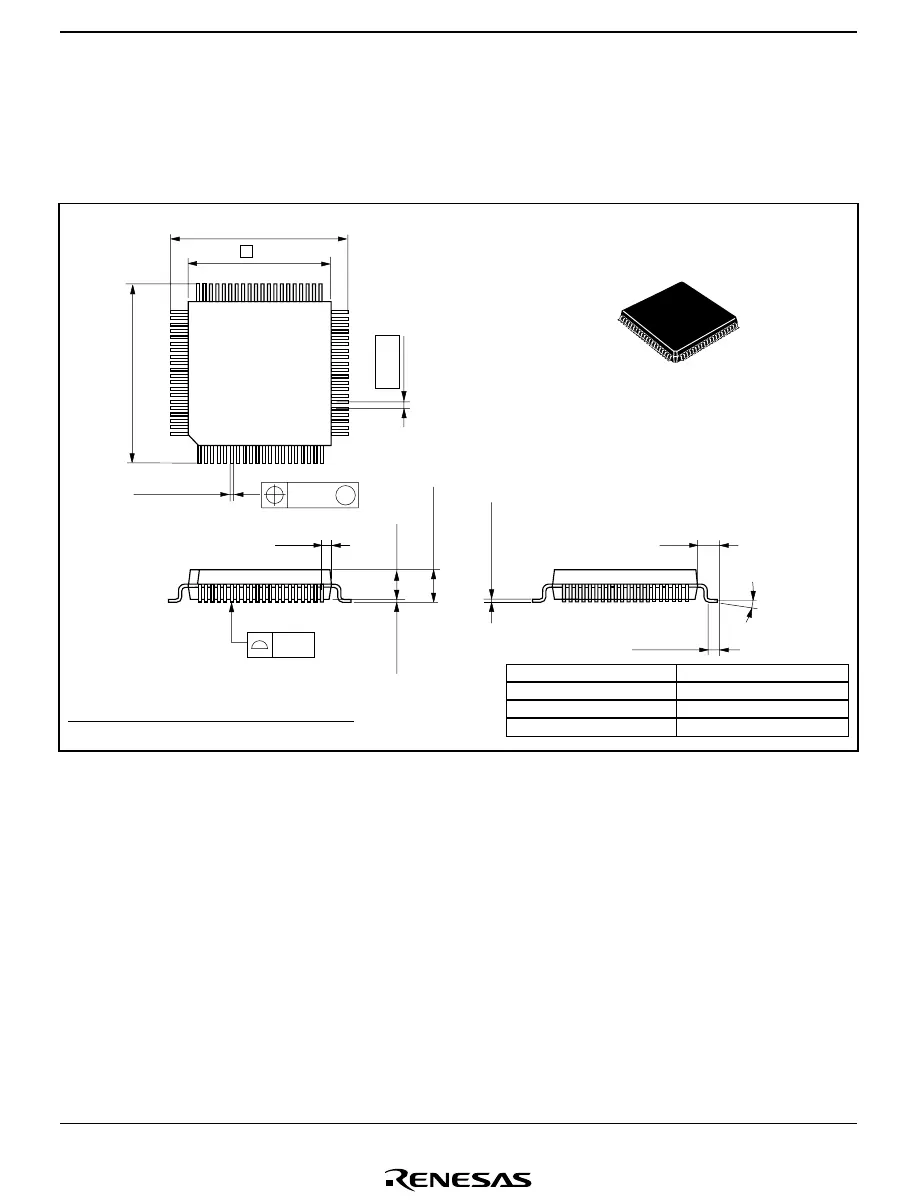

Figure F.1 FP-80A Package Dimensions
