Renesas H8 Series Hardware Manual

Section 11 10-Bit PWM
Rev. 7.00 Mar 10, 2005 page 390 of 652
REJ09B0042-0700
11.1.2 Block Diagram

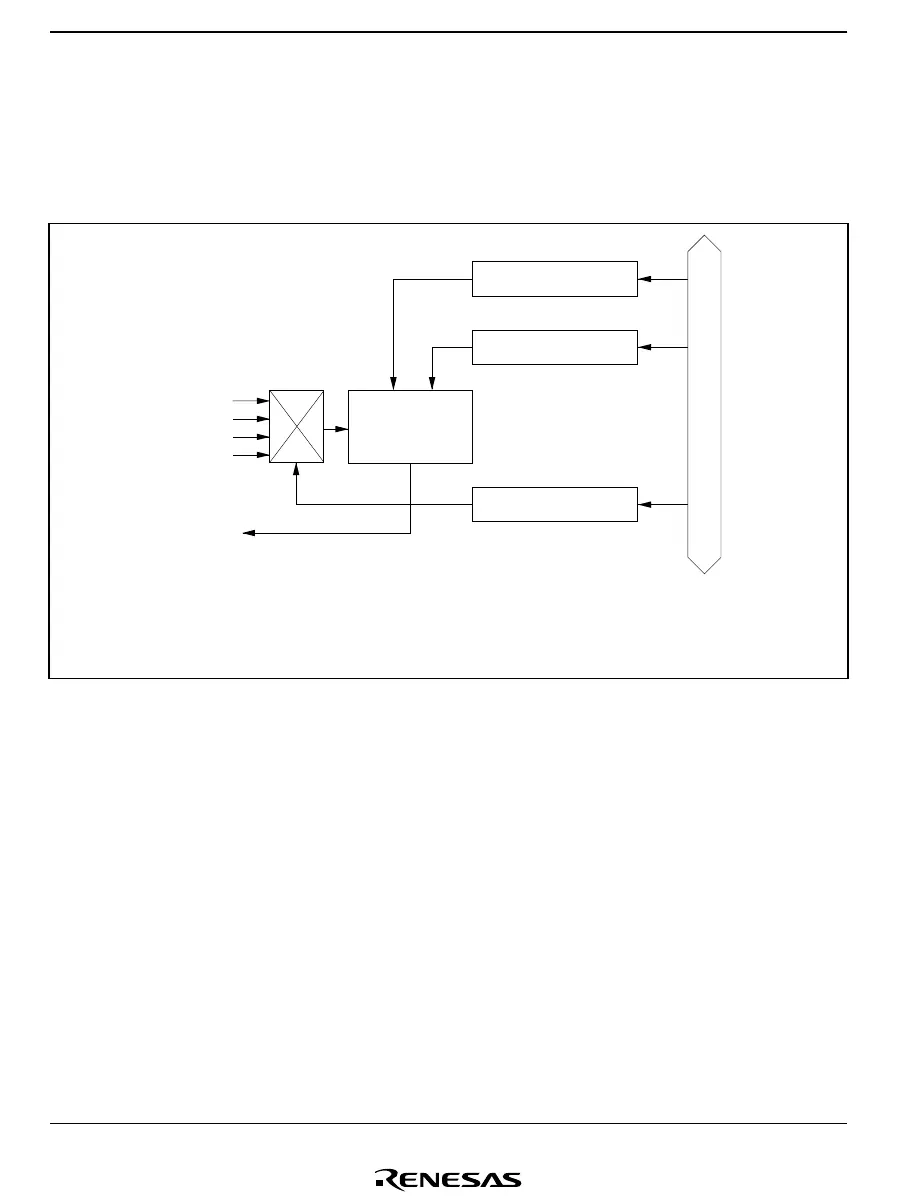

Figure 11.1(1) shows a block diagram of the 10-bit PWM of the H8/38024 Group, H8/38024F-
ZTAT Group, and H8/38024S Group. Figure 11.1(2) shows a block diagram of the 10-bit PWM of
the H8/38124 Group.
Internal data bus
PWDRLm
PWDRUm
PWCRm
PWM
waveform
generator
φ/2
φ/4
φ/8
φ
[Legend]
PWDRLm:
PWDRUm:
PWCRm:
PWM data register L
PWM data register U
PWM control register
m = 1 or 2
PWMm
Figure 11.1(1) Block Diagram of the 10-bit PWM
(H8/38024 Group, H8/38024F-ZTAT Group, and H8/38024S Group: 1-Channel
Configuration)
