Renesas H8 Series Hardware Manual

Section 11 10-Bit PWM
Rev. 7.00 Mar 10, 2005 page 397 of 652
REJ09B0042-0700
1 conversion period
t
f1
tH1 tH2 tH3 tH4
tf2 tf3 tf4
TH = tH1 + tH2 + tH3 + tH4
tf1 = tf2 = tf3 = tf4

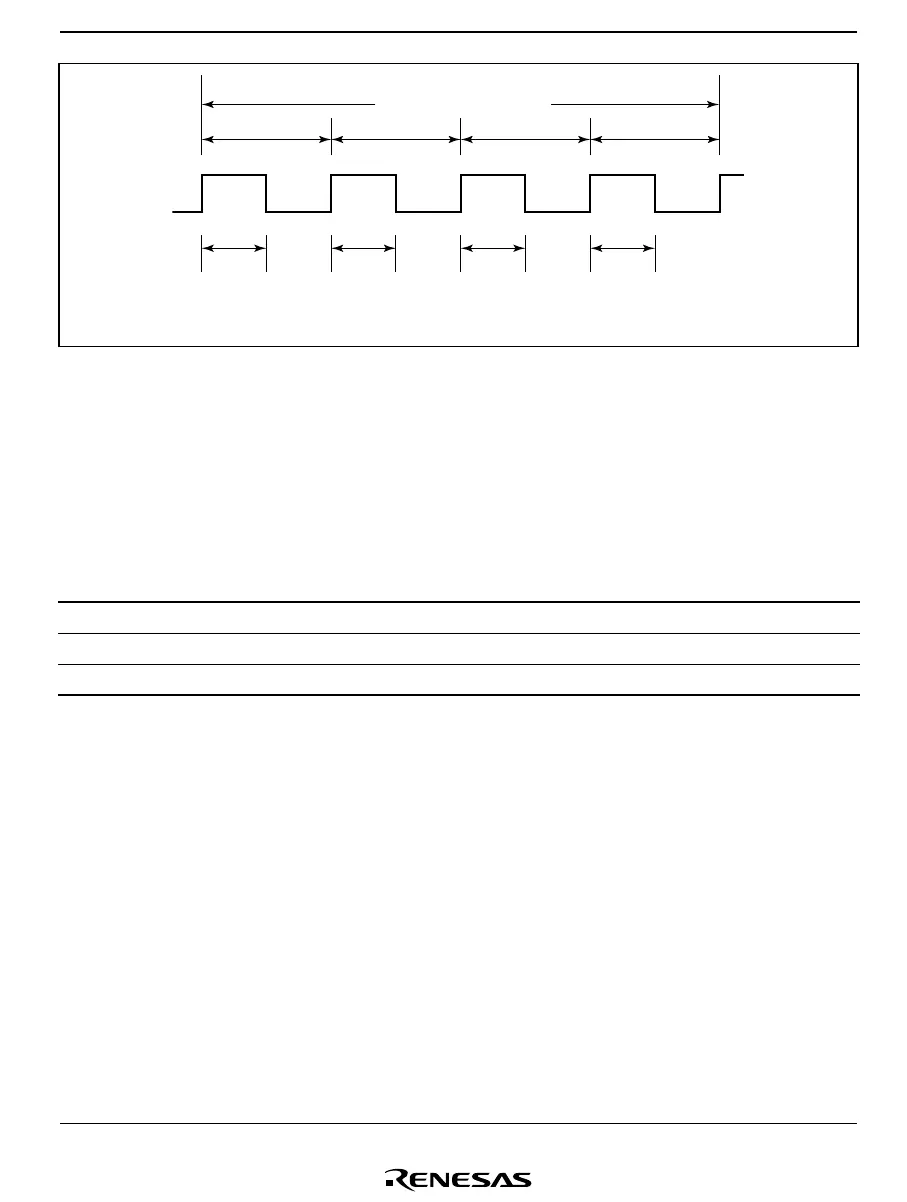

Figure 11.2 PWM Output Waveform
11.3.2 PWM Operation Modes
PWM operation modes are shown in table 11.3.
Table 11.3 PWM Operation Modes
Operation
Mode Reset Active Sleep Watch
Sub-
active
Sub-
sleep Standby
Module
Standby
PWCRm Reset Functions Functions Retained Retained Retained Retained Retained
PWDRUm Reset Functions Functions Retained Retained Retained Retained Retained
PWDRLm Reset Functions Functions Retained Retained Retained Retained Retained
