Section 2 CPU

Rev. 7.00 Mar 10, 2005 page 74 of 652

REJ09B0042-0700

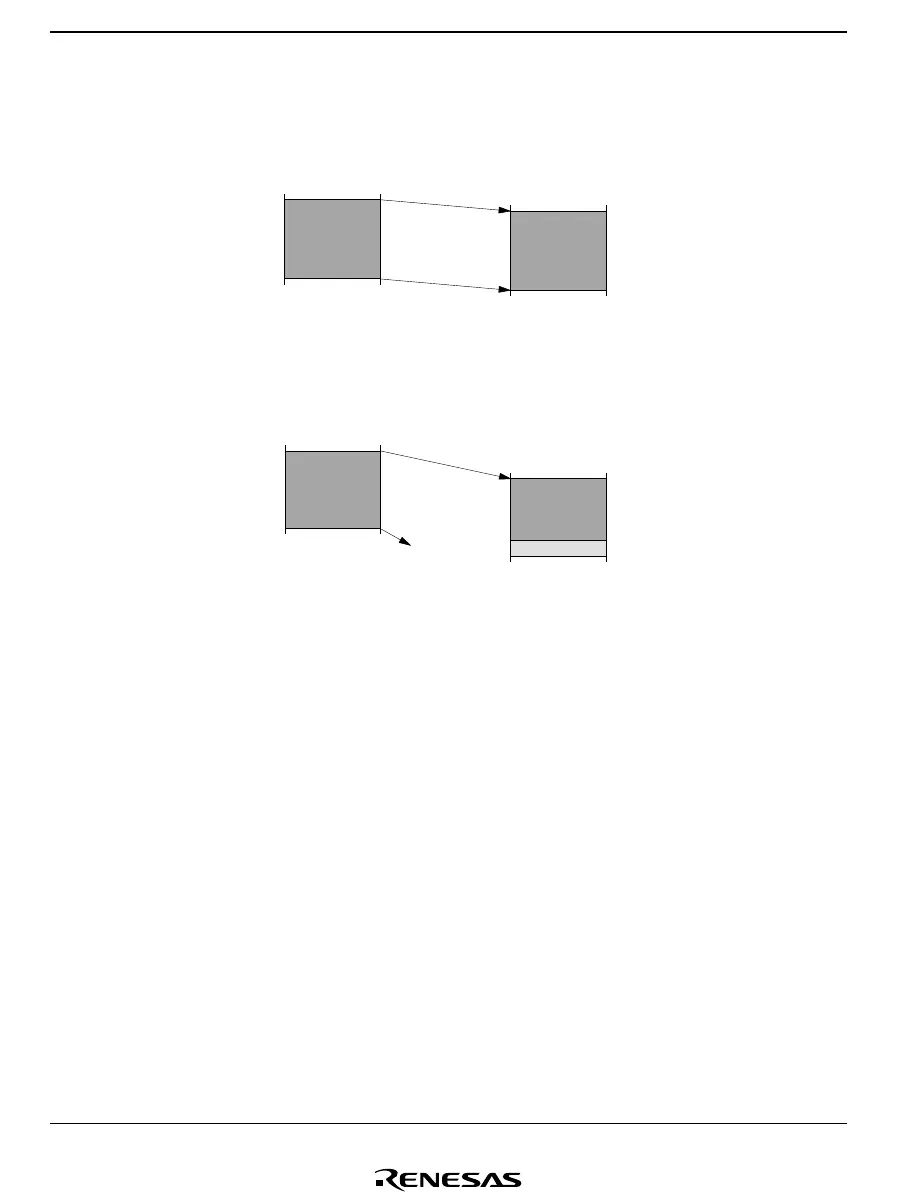

2.9.3 Notes on Use of the EEPMOV Instruction

• The EEPMOV instruction is a block data transfer instruction. It moves the number of bytes

specified by R4L from the address specified by R5 to the address specified by R6.

←

R6 + R4L

→

R5 + R4L

→

• When setting R4L and R6, make sure that the final destination address (R6 + R4L) does not

exceed H'FFFF. The value in R6 must not change from H'FFFF to H'0000 during execution of

the instruction.

H'FFFF

Not allowed

←

R6 + R4L

→

R5 + R4L

→
