Seca mVSA 535 - Performing a Measurement (with Wifi Direct Connection to the Measuring Mat)

Operation • 75
English
17-10-05-353-002g_10-2020 B
Once all the basic parameters have been added, the device submits the
updated seca patient file to the measuring mat.
You have the following options for continuing:
► ➔ Performing a measurement (with WiFi direct connection to the
measuring mat)
► ➔ Performing a measurement (without WiFi direct connection to the
measuring mat)
Performing a measurement (with
WiFi direct connection to the
measuring mat)
If a WiFi direct connection between the monitor and the measuring mat is
active, the measuring mat and the monitor communicate continuously. As a
result, some operating steps can be performed on both the monitor and the
measuring mat.
NOTE
If you are unsure whether the WiFi direct connection between the
monitor and the measuring mat is active, contact your administrator.

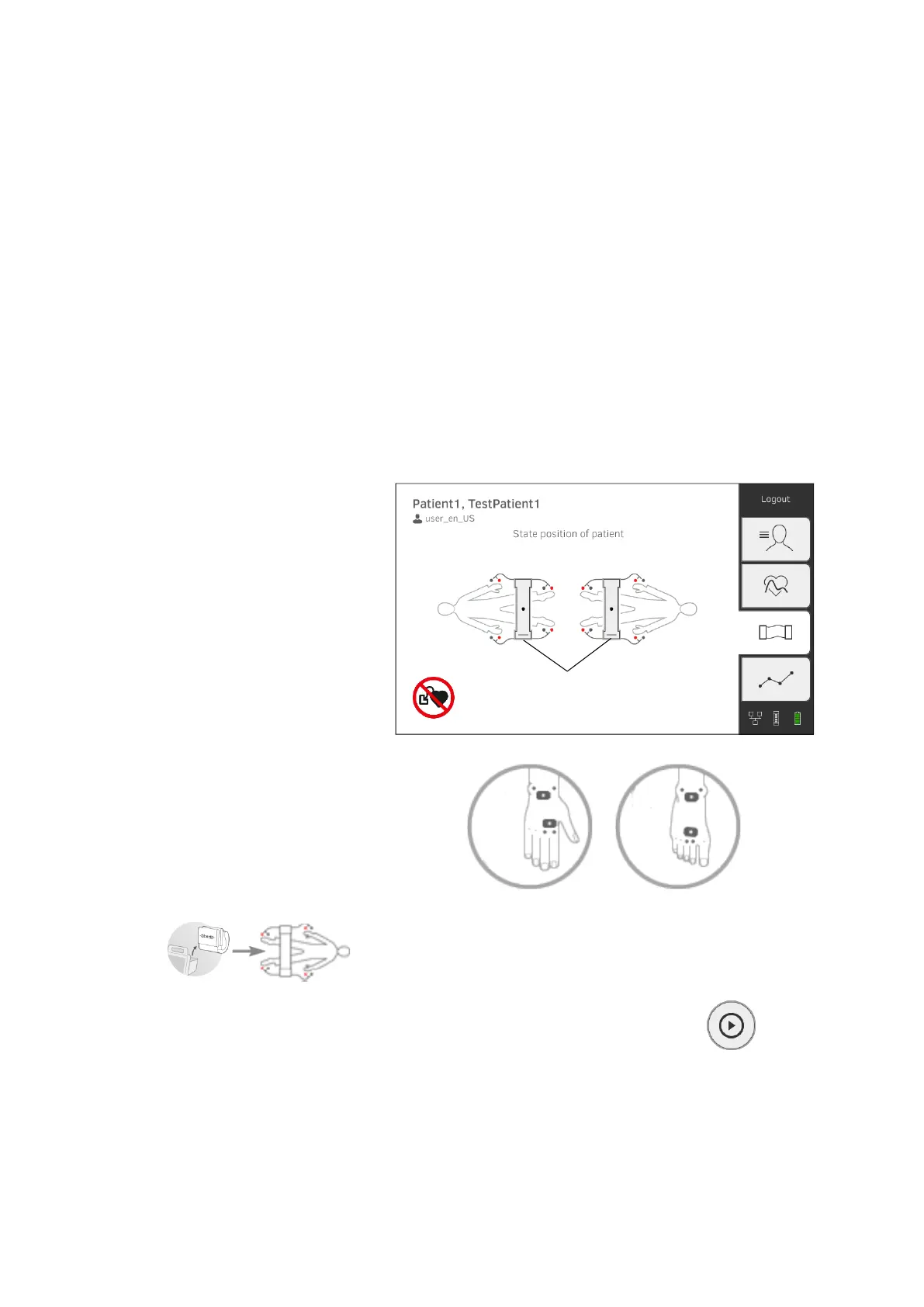

1. Prepare the bioimpedance measurement: ➔ Preparing a bioimpedance
measurement.
2. Press the BIA tab.
3. Wait until the position buttons on the monitor are active.
4. Attach the electrodes to the extremities as shown.
5. Take the measuring mat out of the magnetic catch on the monitor.
6. Connect the measuring mat to the electrodes ➔ Connecting the
measuring mat.
7. Perform the following steps on the monitor or on the measuring mat:
a) Enter patient position: Press the relevant position button
b) Start the measurement procedure: Press the button
Position buttons
