Refresh Pulse Lengths
Although any new pulse length value for an output is sent to the dmux module as it is
changed, this option can be used to force an update of all stored values according to the
current settings held in Cirklon’s memory.
It is strongly recommended that you run the refresh plengs function after loading a different
dmux configuration file from flash or card.
Board Config
The board config page is used to configure the unique settings for each drum mux module in
a multiple module setup.
The options here send configuration commands that all connected modules will respond to,

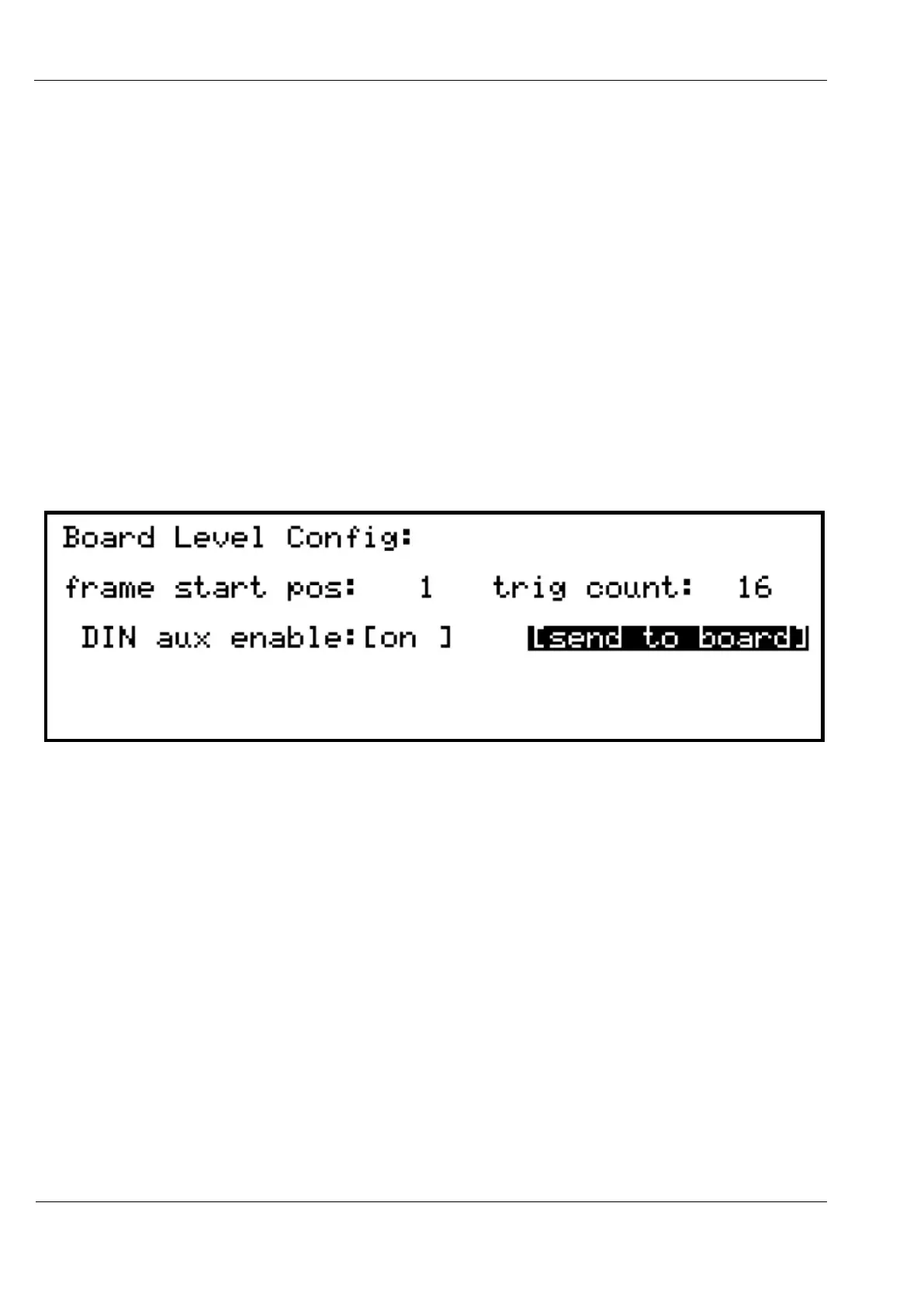

so it is important to only connect the unit to be configured while using this page:
Note that the drum mux output is purely one-way - there is no way for the current settings to
be read back from a module.
The most recently used settings will always appear in the config page, even if you have
connected a different module.
In order to use multiple modules, the “frame size” (on the main drum trig config page) must
first be increased to match the total number of trigger outputs, up to a maximum of 48.
Each drum mux module must then have its frame start pos value set to determine the unique
range of triggers it will respond to.
Let’s look at adding a second drum mux module, where the first module has the default
frame start pos = 1, trig count = 16 and DIN output enabled.
The default frame size of 19 is made up of the 16 accent/trigger pairs plus the 3 triggers used
for the DIN output on the first module.
