SICK microScan3 - EFI-pro

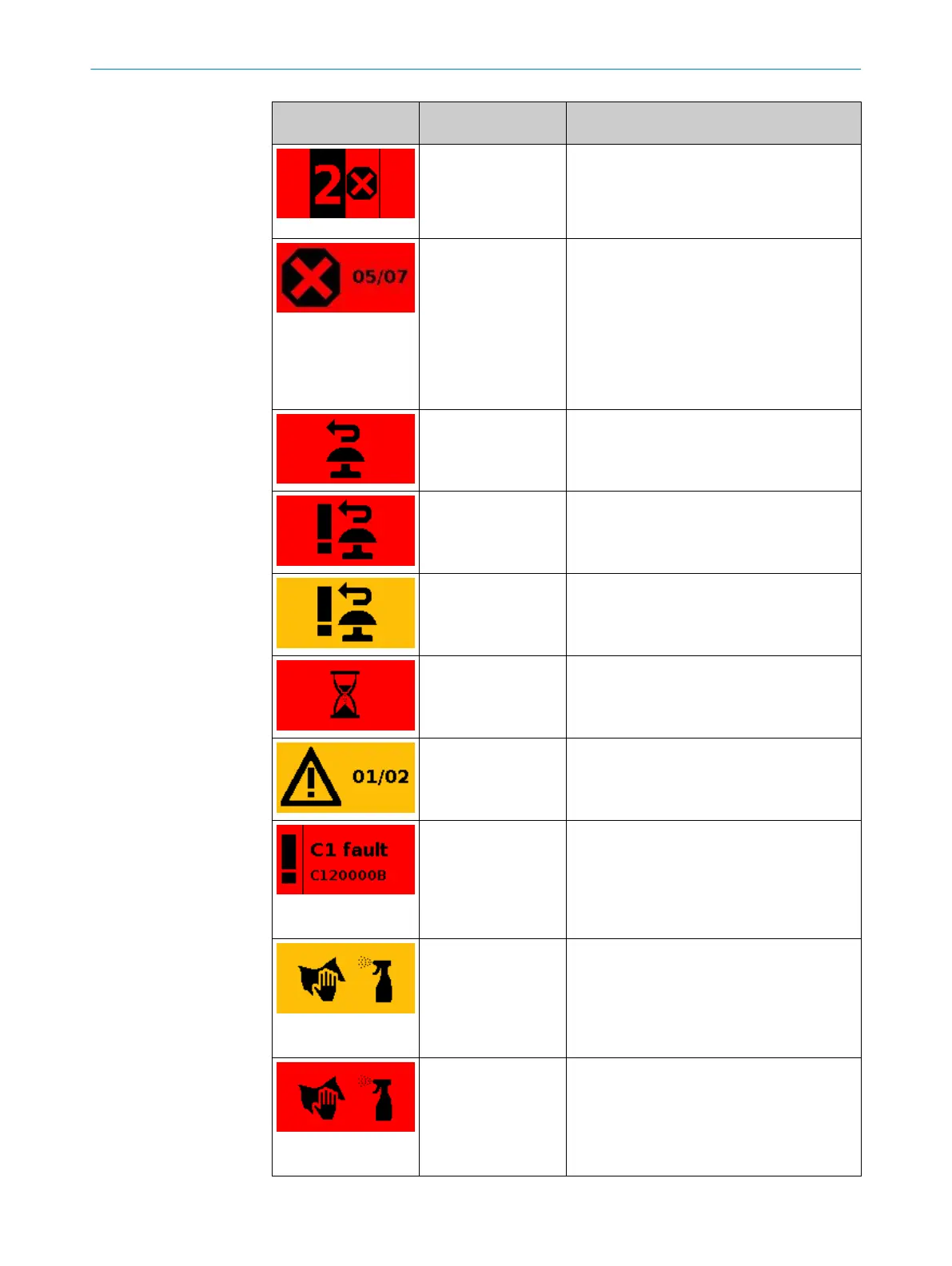

Display Device or configura‐
t
ion
Meaning
Devices and configu‐
r
ations with 2 to 4
configured safety out‐
puts
Cut-off paths in which no protective field is
located are not marked. The associated safety
output is in the OFF state.
A non-safety-related output can still be in the
ON state, e.g. if a warning field is free.
Devices and configu‐
r
ations with more than
4 configured safety
outputs
For one or more cut-off paths, the following
applies: the protective field is interrupted or
there is a warning field in the active monitoring
case. The associated safety outputs are in the
OFF state.
•
Left digit: the number of safety outputs in
the OFF state
•
Right digit: the number of configured safety
outputs
Configuration with
r
estart interlock
Protective field is clear, reset can take place.
Configuration with
r
estart interlock
Reset button pressed Safety output in the OFF
state.
Configuration with
r
estart interlock
Reset button pressed Safety output in the ON
state.
Configuration with
aut
omated restart
after a time
Protective field is clear, configured time to
restart expires.
Configuration with at
le
ast one warning field
Warning field interrupted (left column: number
of interrupted warning fields, right col‐
umn: number of warning fields in the current
monitoring case).
Display flashes
All devices and config‐
urations
Fault. All safety outputs in the OFF state. Addi‐
tional information: see "Fault display",
page 142.
Display flashes
All devices and config‐
ur
ations
Contamination warning. Check the optics cover
for damage. Clean the optics cover.
Display flashes
All devices and config‐
ur
ations
Contamination fault. All safety outputs in the
OFF state. Check the optics cover for damage.
Clean the optics cover.
