Range for warning fields
F
or non-safety applications (warning fields), the safety laser scanner has a larger range
than the maximum protective field range. The requirements for size and remission of
objects to be detected are illustrated in the following graphs as a function of the
desired range.
5 10 20 50 D [m]
d [mm]
1000
500
200
100
50
20
10
2
1

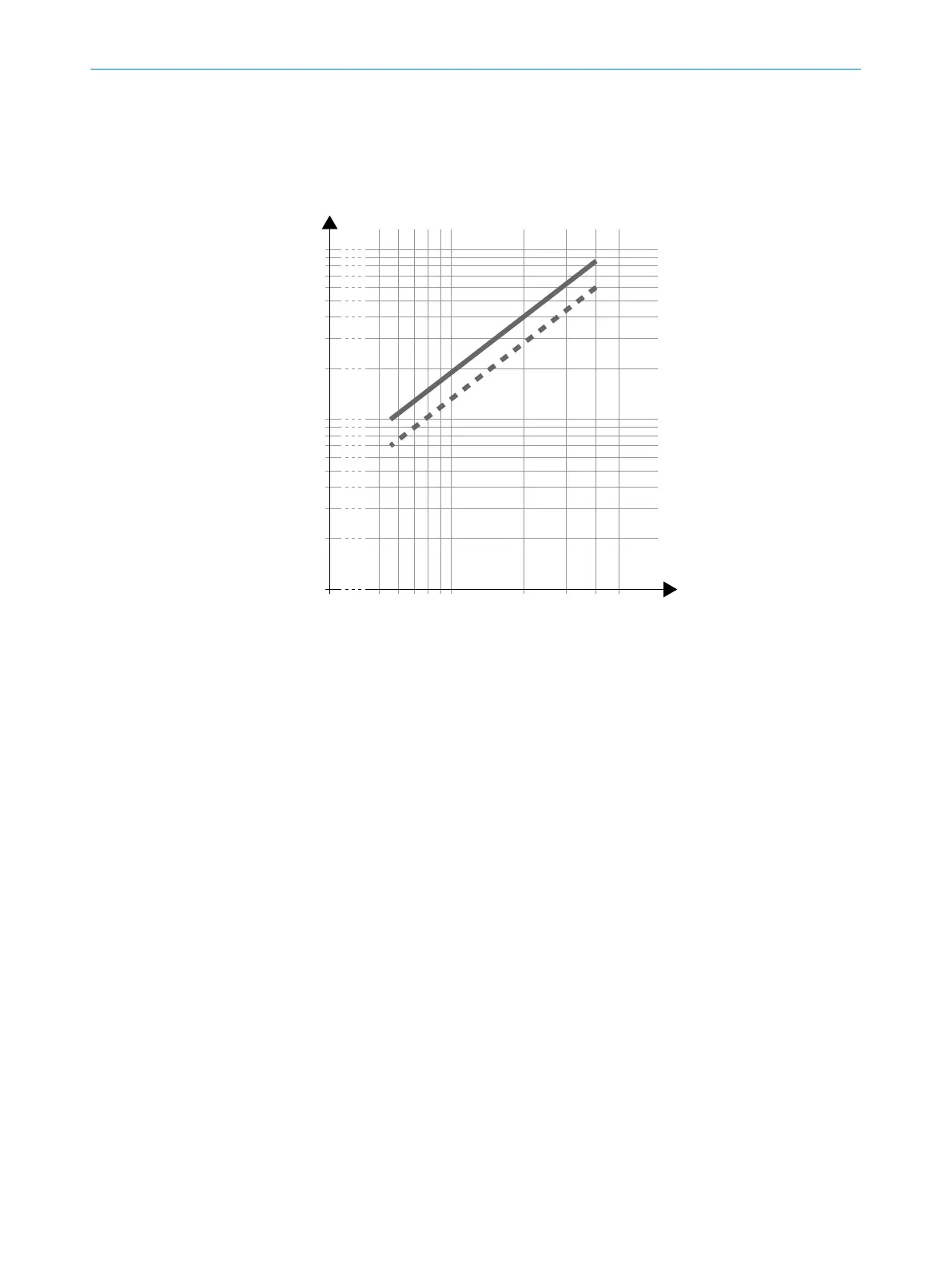

Figure 91: Scanning range and object size for warning fields (devices with a max. protective field
r
ange of 4.0 m and devices with max. protective field range of 5.5 m)
d Required minimum size of the object in mm
D Range in m
1
Scan cycle time = 30 ms
2
Scan cycle time = 40 ms
TECHNICAL DATA 13
8021913/15ZW/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro
159
Subject to change without notice

SICK microScan3 - EFI-pro Specifications

General

Scanning angle	275°
Number of fields	Up to 128
Number of monitoring cases	Up to 128
Enclosure rating	IP65, IP67
Number of protective fields	Up to 128
Field sets	Up to 128
Protective field range	5.5 m
Resolution	30 mm / 40 mm / 50 mm / 70 mm / 150 mm
Interface	Ethernet/IP, PROFINET
Ambient operating temperature	0 °C ... +50 °C
Scanning range	5.5 m (protective)
Safety integrity level	SIL3 (IEC 61508)
Performance level	PL e (ISO 13849)
Type	Type 3
Detection capability	30 mm
Operating voltage	19.2 V DC to 30 V DC
Ambient temperature	0°C to +50°C
Storage temperature	-25 °C ... +70 °C
Housing material	Aluminum
Connection	M12 connector
Safety standards	IEC 61496-1, IEC 61508, ISO 13849
