SICK microScan3 - EFI-pro

5 10 20 50 D [m]D [m]
R [%]
500
200
100
50
20
10
5
2
1
6
5
3
2
4
1

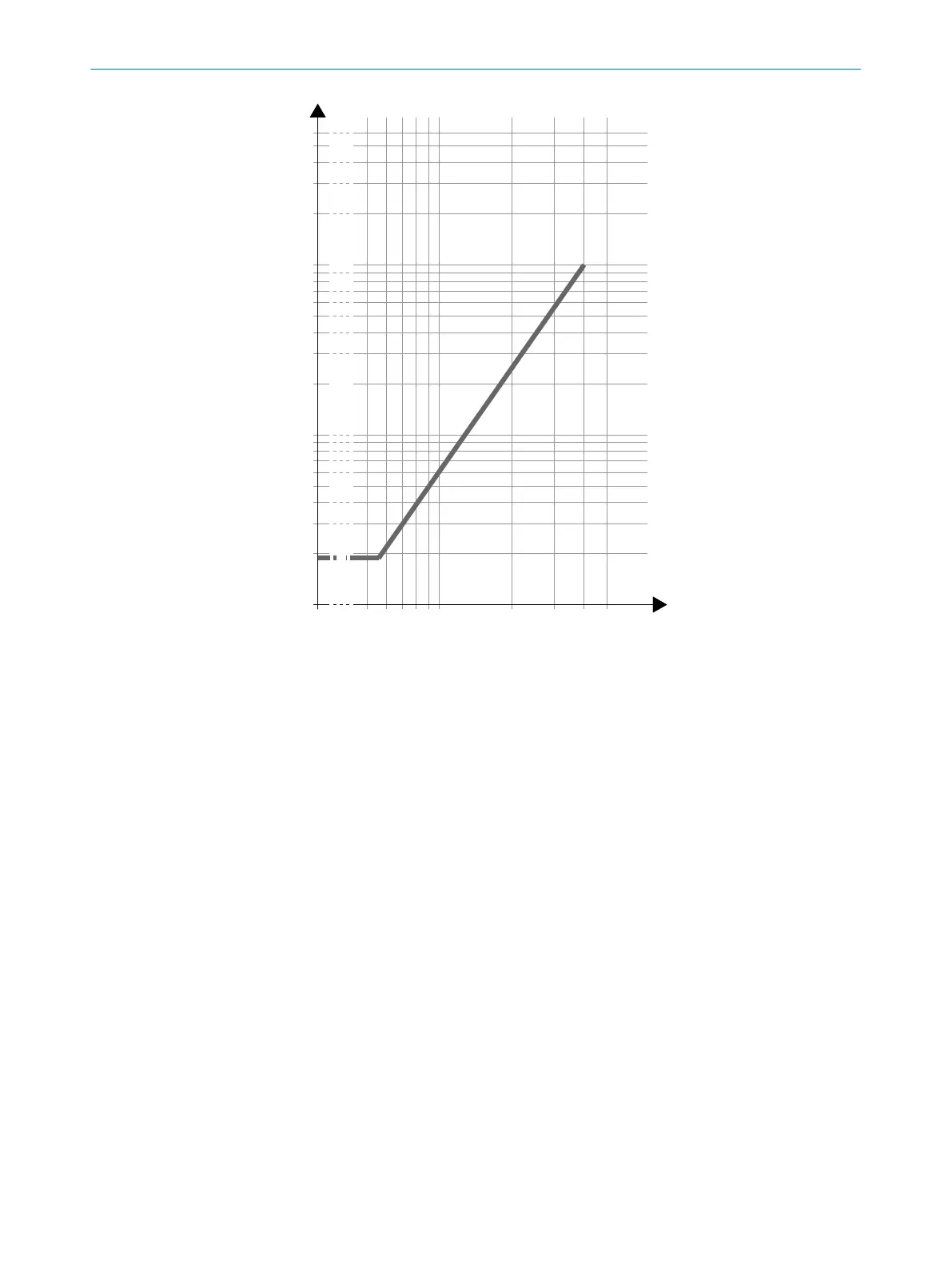

Figure 93: Scanning range and required remission for warning fields (devices with a max. protec‐
t
ive field range of 4.0 m and devices with max. protective field range of 5.5 m)
R Necessary minimum remission in %
D Range in m
1
Black shoe leather
2
Matt black paint
3
Gray cardboard
4
Writing paper
5
White plaster
6
Reflectors > 2,000%, reflective tapes > 300%
