mount
ing directly without a mounting kit
•
mounting using mounting kit 1
•
mounting using mounting kits 1 and 2
The mounting kits 1 and 2 are built upon one another. This means that for mounting
using mounting kit 2, you also need mounting kit 1.
Each mounting kit consists of a bracket, and the screws needed to mount the safety
laser scanner on the bracket.
DANGER
H
azard due to lack of effectiveness of the protective device
Persons or parts of the body to be protected may not be recognized or not recognized in
time in case of non-observance.
b
You must take account of the minimum distances calculated for your machine,
see "Assembly", page 25.
b
Mount the safety laser scanner so that crawling beneath, climbing over and stand‐
ing behind the protective fields is impossible.

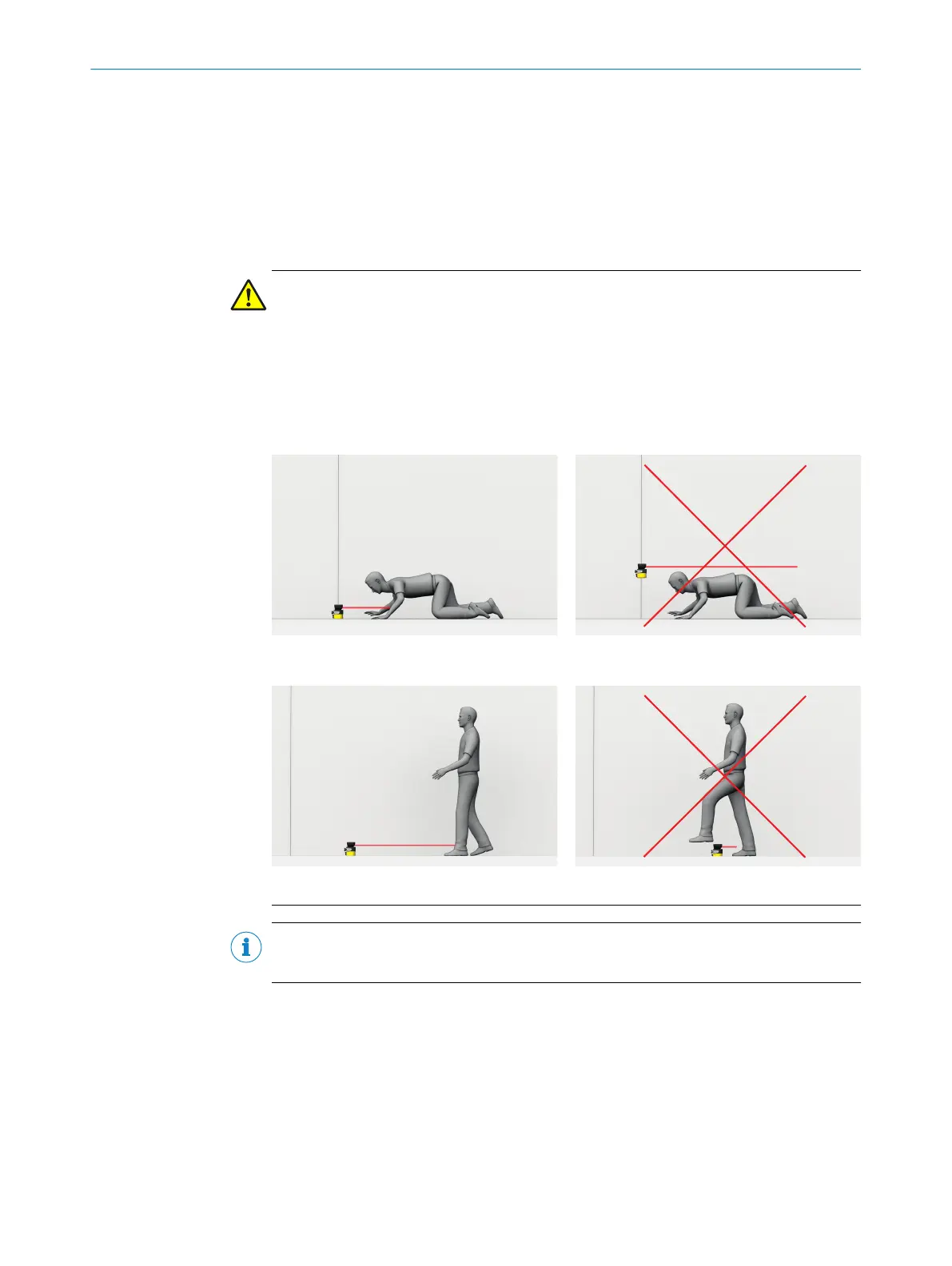

Figure 43: Prevent crawling beneath
Figure 44: Prevent stepping over
NOTE
b
R
ead this section completely before mounting the safety laser scanner.
Mounting instructions
b
T
he safety laser scanner’s optics cover is an optical component. Make sure that
the optics cover does not become dirty or scratched during unpacking and mount‐
ing. Prevent fingerprints on the optics cover.
b
Mount the safety laser scanner so that it is protected from moisture, dirt and dam‐
age.
b
Make sure that the safety laser scanner’s field of view is not restricted.
b
Make sure that there are not mirrors or other very reflective objects in the protec‐
tive field.
5 MOUN
TING
64
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice
