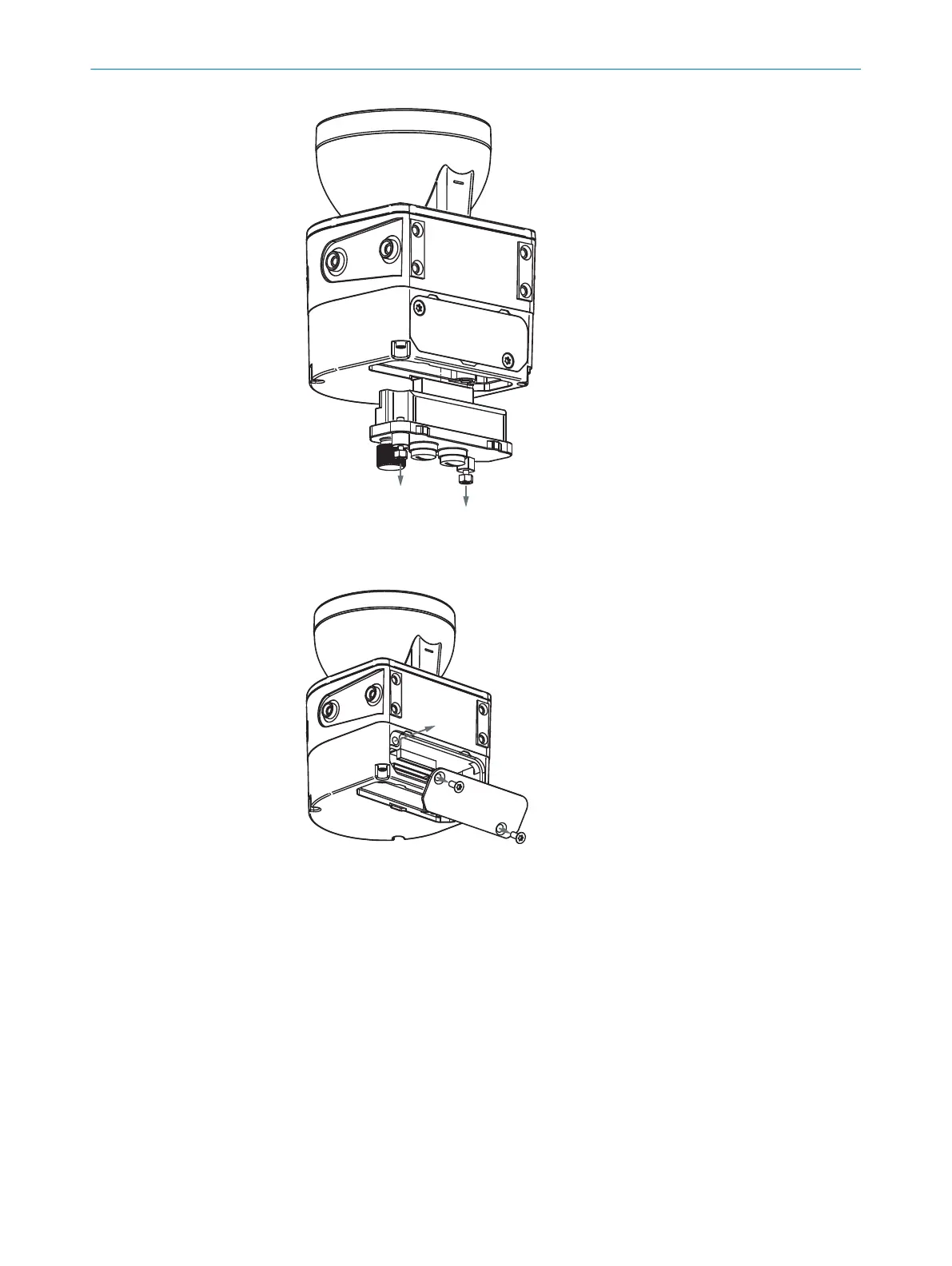

Figure 45: Remove the system plug from below.
3. Loosen the cover plate screws.
4.
Remove the cover plate from the safety laser scanner.
Figure 46: Remove the cover plate from the rear.
5. Carefully slide the new system plug into the safety laser scanner at the desired
posit
ion (bottom or rear).
6. Screw in the system plug using the captive screws. Tightening torque: 2.25 Nm …
2.75 Nm.
5 MOUN
TING
66
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EFI-pro 8021913/15ZW/2019-11-14 | SICK
Subject to change without notice
