Procedure
1. Unscrew the cover.
2. Move the left switch to the HI position.
FO Fault current
LO Lower fault current ≤ 3.6 mA
HI Upper fault current ≥ 21 mA
SIM Reserved for devices with PA (simulation mode)

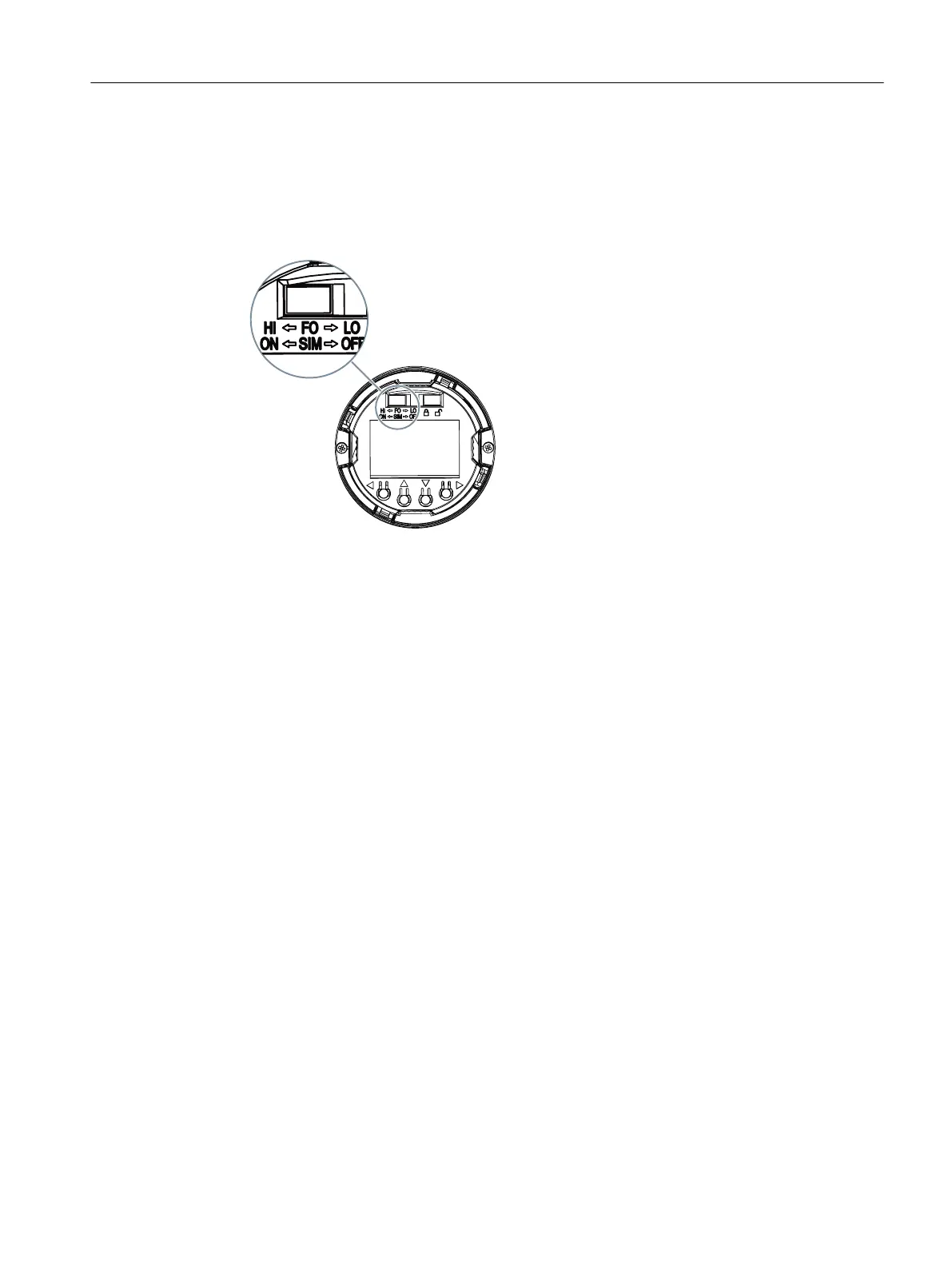

Figure 8-3 Set the upper fault current using switch
Result
When the switch is in the HI position, the upper fault current is enabled.
See also
Current output (Page 103)
Parameter assignment
8.5 Setting the fault current of the internal transmitter with switch to ≥ 21 mA
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Operating Instructions, 08/2020, A5E47810090-AA 107
